complexType tcip:CcPTVAdherenceSub

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo custom-route-params custom-sched-params
used by	element  tcip:ccPTVAdherenceSub
source	<xs:complexType name="CcPTVAdherenceSub">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="custom-route-params" type="CCActivateRouteAdherence" minOccurs="0"/>     <xs:element name="custom-sched-params" type="CCActivateScheduleAdherence" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CcPTVAdherenceSub/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

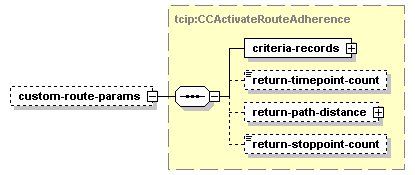

element tcip:CcPTVAdherenceSub/custom-route-params

diagram
type	tcip:CCActivateRouteAdherence
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	criteria-records return-timepoint-count return-path-distance return-stoppoint-count
source	<xs:element name="custom-route-params" type="CCActivateRouteAdherence" minOccurs="0"/>

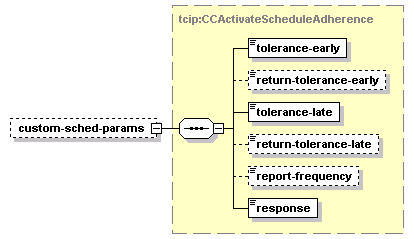

element tcip:CcPTVAdherenceSub/custom-sched-params

diagram
type	tcip:CCActivateScheduleAdherence
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	tolerance-early return-tolerance-early tolerance-late return-tolerance-late report-frequency response
source	<xs:element name="custom-sched-params" type="CCActivateScheduleAdherence" minOccurs="0"/>
