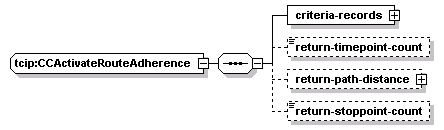

complexType tcip:CCActivateRouteAdherence

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	criteria-records return-timepoint-count return-path-distance return-stoppoint-count
used by	elements  tcip:CcPTVAdherenceSub/custom-route-params tcip:CcPTVAlarmLimits/offRouteLogRates tcip:CcPTVAlarmLimits/offRouteReportRates
source	<xs:complexType name="CCActivateRouteAdherence">   <xs:sequence>     <xs:element name="criteria-records">       <xs:complexType>         <xs:sequence maxOccurs="5">           <xs:element name="criteria-record" type="CCRouteAdherenceEntry"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="return-timepoint-count" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="return-path-distance" type="lrms:Distance" minOccurs="0"/>     <xs:element name="return-stoppoint-count" type="CPT-GenericCounter" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCActivateRouteAdherence/criteria-records

diagram
properties	isRef  0 content  complex
children	criteria-record
source	<xs:element name="criteria-records">   <xs:complexType>     <xs:sequence maxOccurs="5">       <xs:element name="criteria-record" type="CCRouteAdherenceEntry"/>     </xs:sequence>   </xs:complexType> </xs:element>

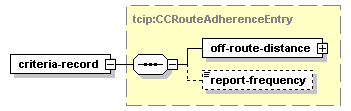

element tcip:CCActivateRouteAdherence/criteria-records/criteria-record

diagram
type	tcip:CCRouteAdherenceEntry
properties	isRef  0 content  complex
children	off-route-distance report-frequency
source	<xs:element name="criteria-record" type="CCRouteAdherenceEntry"/>

element tcip:CCActivateRouteAdherence/return-timepoint-count

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="return-timepoint-count" type="CPT-GenericCounter" minOccurs="0"/>

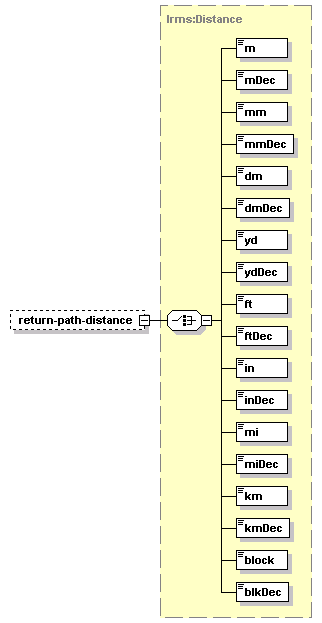

element tcip:CCActivateRouteAdherence/return-path-distance

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="return-path-distance" type="lrms:Distance" minOccurs="0"/>

element tcip:CCActivateRouteAdherence/return-stoppoint-count

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="return-stoppoint-count" type="CPT-GenericCounter" minOccurs="0"/>
