complexType tcip:TspPRGInputsCCSub

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo intersections
used by	element  tcip:tspPRGInputsCCSub
source	<xs:complexType name="TspPRGInputsCCSub">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="intersections">       <xs:complexType>         <xs:sequence maxOccurs="100000">           <xs:element name="intersection" type="CPTIntersectionIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:TspPRGInputsCCSub/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:TspPRGInputsCCSub/intersections

diagram
properties	isRef  0 content  complex
children	intersection
source	<xs:element name="intersections">   <xs:complexType>     <xs:sequence maxOccurs="100000">       <xs:element name="intersection" type="CPTIntersectionIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TspPRGInputsCCSub/intersections/intersection

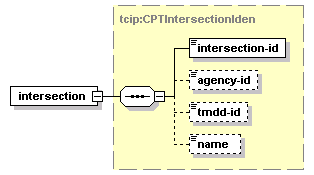

diagram
type	tcip:CPTIntersectionIden
properties	isRef  0 content  complex
children	intersection-id agency-id tmdd-id name
source	<xs:element name="intersection" type="CPTIntersectionIden"/>
