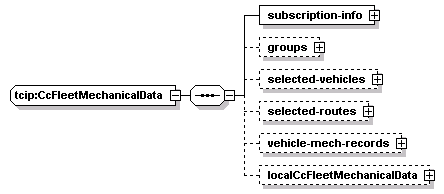

complexType tcip:CcFleetMechanicalData
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscription-info groups selected-vehicles selected-routes vehicle-mech-records localCcFleetMechanicalData
used by
element tcip:ccFleetMechanicalData
source <xs:complexType name="CcFleetMechanicalData">
  <xs:sequence>
    <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>
    <xs:element name="groups" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="group" type="CPT-FleetSubset"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="selected-vehicles" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="30000">
          <xs:element name="selected-vehicle" type="CPTVehicleIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="selected-routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="selected-route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="vehicle-mech-records" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="30000">
          <xs:element name="vehicle-mech-record" type="CCVehicleMechRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCcFleetMechanicalData" type="local:CcFleetMechanicalData" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:CcFleetMechanicalData/subscription-info
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>

element tcip:CcFleetMechanicalData/groups
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children group
source <xs:element name="groups" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="group" type="CPT-FleetSubset"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcFleetMechanicalData/groups/group
diagram
type tcip:CPT-FleetSubset
properties
isRef 0
content simple
source <xs:element name="group" type="CPT-FleetSubset"/>

element tcip:CcFleetMechanicalData/selected-vehicles
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children selected-vehicle
source <xs:element name="selected-vehicles" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="30000">
      <xs:element name="selected-vehicle" type="CPTVehicleIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

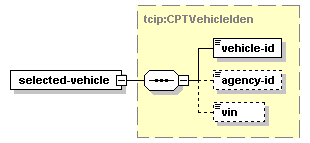

element tcip:CcFleetMechanicalData/selected-vehicles/selected-vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="selected-vehicle" type="CPTVehicleIden"/>

element tcip:CcFleetMechanicalData/selected-routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children selected-route
source <xs:element name="selected-routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="selected-route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

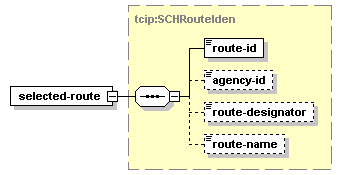

element tcip:CcFleetMechanicalData/selected-routes/selected-route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="selected-route" type="SCHRouteIden"/>

element tcip:CcFleetMechanicalData/vehicle-mech-records
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-mech-record
source <xs:element name="vehicle-mech-records" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="30000">
      <xs:element name="vehicle-mech-record" type="CCVehicleMechRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

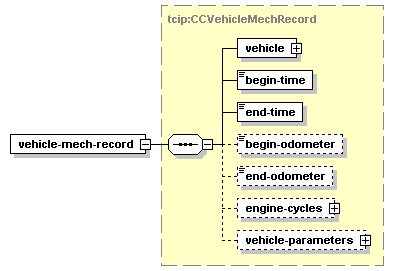

element tcip:CcFleetMechanicalData/vehicle-mech-records/vehicle-mech-record
diagram
type tcip:CCVehicleMechRecord
properties
isRef 0
content complex
children vehicle begin-time end-time begin-odometer end-odometer engine-cycles vehicle-parameters
source <xs:element name="vehicle-mech-record" type="CCVehicleMechRecord"/>

element tcip:CcFleetMechanicalData/localCcFleetMechanicalData
diagram
type CcFleetMechanicalData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCcFleetMechanicalData" type="local:CcFleetMechanicalData" minOccurs="0"/>
