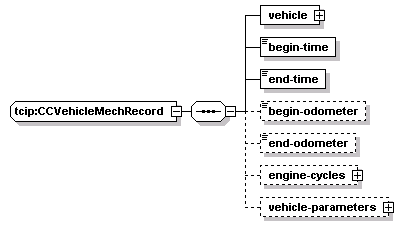

complexType tcip:CCVehicleMechRecord
diagram
namespace http://www.TCIP-Adopted-03-00-01
children vehicle begin-time end-time begin-odometer end-odometer engine-cycles vehicle-parameters
used by
element tcip:CcFleetMechanicalData/vehicle-mech-records/vehicle-mech-record
source <xs:complexType name="CCVehicleMechRecord">
  <xs:sequence>
    <xs:element name="vehicle" type="CPTVehicleIden"/>
    <xs:element name="begin-time" type="CPT-DateTime"/>
    <xs:element name="end-time" type="CPT-DateTime"/>
    <xs:element name="begin-odometer" type="CPT-GenericCounter" minOccurs="0"/>
    <xs:element name="end-odometer" type="CPT-GenericCounter" minOccurs="0"/>
    <xs:element name="engine-cycles" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="engine-cycle" type="CCEngineStartStop"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="vehicle-parameters" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="vehicle-parameter" type="OBParameterDumpEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CCVehicleMechRecord/vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CCVehicleMechRecord/begin-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-time" type="CPT-DateTime"/>

element tcip:CCVehicleMechRecord/end-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-time" type="CPT-DateTime"/>

element tcip:CCVehicleMechRecord/begin-odometer
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="begin-odometer" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:CCVehicleMechRecord/end-odometer
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="end-odometer" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:CCVehicleMechRecord/engine-cycles
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children engine-cycle
source <xs:element name="engine-cycles" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="engine-cycle" type="CCEngineStartStop"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CCVehicleMechRecord/engine-cycles/engine-cycle
diagram
type tcip:CCEngineStartStop
properties
isRef 0
content complex
children start time
source <xs:element name="engine-cycle" type="CCEngineStartStop"/>

element tcip:CCVehicleMechRecord/vehicle-parameters
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-parameter
source <xs:element name="vehicle-parameters" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="vehicle-parameter" type="OBParameterDumpEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

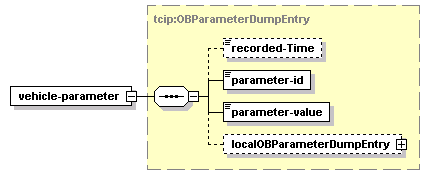

element tcip:CCVehicleMechRecord/vehicle-parameters/vehicle-parameter
diagram
type tcip:OBParameterDumpEntry
properties
isRef 0
content complex
children recorded-Time parameter-id parameter-value localOBParameterDumpEntry
source <xs:element name="vehicle-parameter" type="OBParameterDumpEntry"/>
