complexType tcip:OBParameterDumpEntry

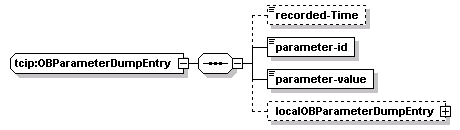

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	recorded-Time parameter-id parameter-value localOBParameterDumpEntry
used by	elements  tcip:CcVehicleShutdownReport/open-alarms/open-alarm tcip:CcVehicleStartupReport/open-alarms/open-alarm tcip:CcPTVehicleParameter/parameters/parameter tcip:CcPTVPerformanceData/vehicle-parameters/vehicle-parameter tcip:CCOperatingRecord/vehicle-parameters/vehicle-parameter tcip:CCVehicleMechRecord/vehicle-parameters/vehicle-parameter
source	<xs:complexType name="OBParameterDumpEntry">   <xs:sequence>     <xs:element name="recorded-Time" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="parameter-id" type="OB-PID"/>     <xs:element name="parameter-value" type="OB-Parameter"/>     <xs:element name="localOBParameterDumpEntry" type="local:OBParameterDumpEntry" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:OBParameterDumpEntry/recorded-Time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="recorded-Time" type="CPT-DateTime" minOccurs="0"/>

element tcip:OBParameterDumpEntry/parameter-id

diagram
type	tcip:OB-PID
properties	isRef  0 content  simple
source	<xs:element name="parameter-id" type="OB-PID"/>

element tcip:OBParameterDumpEntry/parameter-value

diagram
type	tcip:OB-Parameter
properties	isRef  0 content  simple
facets	maxLength  16
source	<xs:element name="parameter-value" type="OB-Parameter"/>

element tcip:OBParameterDumpEntry/localOBParameterDumpEntry

diagram
type	OBParameterDumpEntry
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localOBParameterDumpEntry" type="local:OBParameterDumpEntry" minOccurs="0"/>
