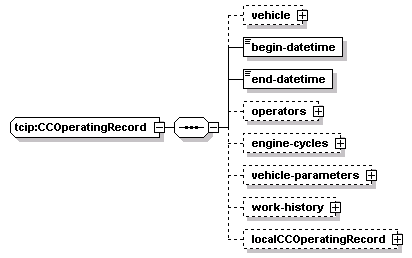

complexType tcip:CCOperatingRecord
diagram
namespace http://www.TCIP-Adopted-03-00-01
children vehicle begin-datetime end-datetime operators engine-cycles vehicle-parameters work-history localCCOperatingRecord
used by
element tcip:CcOperatingData/operating-datasets/operating-dataset
source <xs:complexType name="CCOperatingRecord">
  <xs:sequence>
    <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>
    <xs:element name="begin-datetime" type="CPT-DateTime"/>
    <xs:element name="end-datetime" type="CPT-DateTime"/>
    <xs:element name="operators" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="operator" type="CCSignOnOff"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="engine-cycles" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="engine-cycle" type="CCEngineStartStop"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="vehicle-parameters" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="vehicle-parameter" type="OBParameterDumpEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="work-history" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="work-history-item" type="CCBlockWorkRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCCOperatingRecord" type="local:CCOperatingRecord" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:CCOperatingRecord/vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:CCOperatingRecord/begin-datetime
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-datetime" type="CPT-DateTime"/>

element tcip:CCOperatingRecord/end-datetime
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-datetime" type="CPT-DateTime"/>

element tcip:CCOperatingRecord/operators
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children operator
source <xs:element name="operators" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="operator" type="CCSignOnOff"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

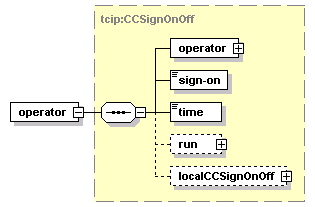

element tcip:CCOperatingRecord/operators/operator
diagram
type tcip:CCSignOnOff
properties
isRef 0
content complex
children operator sign-on time run localCCSignOnOff
source <xs:element name="operator" type="CCSignOnOff"/>

element tcip:CCOperatingRecord/engine-cycles
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children engine-cycle
source <xs:element name="engine-cycles" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="engine-cycle" type="CCEngineStartStop"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CCOperatingRecord/engine-cycles/engine-cycle
diagram
type tcip:CCEngineStartStop
properties
isRef 0
content complex
children start time
source <xs:element name="engine-cycle" type="CCEngineStartStop"/>

element tcip:CCOperatingRecord/vehicle-parameters
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-parameter
source <xs:element name="vehicle-parameters" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="vehicle-parameter" type="OBParameterDumpEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

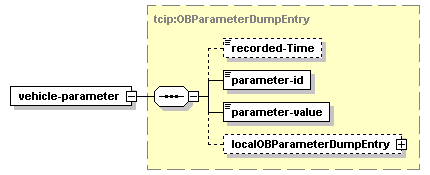

element tcip:CCOperatingRecord/vehicle-parameters/vehicle-parameter
diagram
type tcip:OBParameterDumpEntry
properties
isRef 0
content complex
children recorded-Time parameter-id parameter-value localOBParameterDumpEntry
source <xs:element name="vehicle-parameter" type="OBParameterDumpEntry"/>

element tcip:CCOperatingRecord/work-history
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children work-history-item
source <xs:element name="work-history" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="work-history-item" type="CCBlockWorkRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

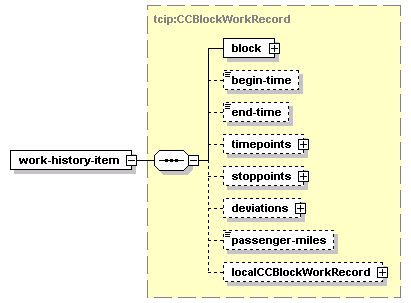

element tcip:CCOperatingRecord/work-history/work-history-item
diagram
type tcip:CCBlockWorkRecord
properties
isRef 0
content complex
children block begin-time end-time timepoints stoppoints deviations passenger-miles localCCBlockWorkRecord
source <xs:element name="work-history-item" type="CCBlockWorkRecord"/>

element tcip:CCOperatingRecord/localCCOperatingRecord
diagram
type CCOperatingRecord
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCCOperatingRecord" type="local:CCOperatingRecord" minOccurs="0"/>
