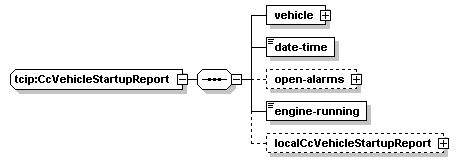

complexType tcip:CcVehicleStartupReport
diagram
namespace http://www.TCIP-Adopted-03-00-01
children vehicle date-time open-alarms engine-running localCcVehicleStartupReport
used by
element tcip:ccVehicleStartupReport
source <xs:complexType name="CcVehicleStartupReport">
  <xs:sequence>
    <xs:element name="vehicle" type="CPTVehicleIden"/>
    <xs:element name="date-time" type="CPT-DateTime"/>
    <xs:element name="open-alarms" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="open-alarm" type="OBParameterDumpEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="engine-running" type="CPT-Boolean"/>
    <xs:element name="localCcVehicleStartupReport" type="local:CcVehicleStartupReport" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:CcVehicleStartupReport/vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CcVehicleStartupReport/date-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="date-time" type="CPT-DateTime"/>

element tcip:CcVehicleStartupReport/open-alarms
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children open-alarm
source <xs:element name="open-alarms" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="open-alarm" type="OBParameterDumpEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

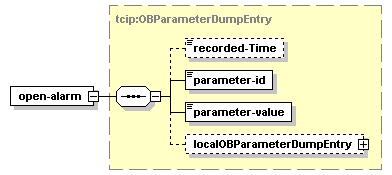

element tcip:CcVehicleStartupReport/open-alarms/open-alarm
diagram
type tcip:OBParameterDumpEntry
properties
isRef 0
content complex
children recorded-Time parameter-id parameter-value localOBParameterDumpEntry
source <xs:element name="open-alarm" type="OBParameterDumpEntry"/>

element tcip:CcVehicleStartupReport/engine-running
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="engine-running" type="CPT-Boolean"/>

element tcip:CcVehicleStartupReport/localCcVehicleStartupReport
diagram
type CcVehicleStartupReport
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCcVehicleStartupReport" type="local:CcVehicleStartupReport" minOccurs="0"/>
