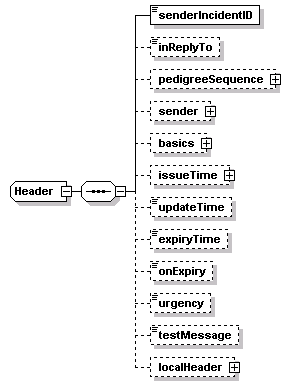

complexType Header

diagram
namespace	http://www.IM-Draft-03-00-44a
children	senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
used by	elements  NeedLawEnforcement/header NeedFireSuppression/header NeedEMS/header MaterialRelease/header Impact/header ImmediateSiteEvacuation/header FileTransfer/header Facilities/header Evacuation/header DispatchDetails/header Description/header CautionsForResponders/header CargoVehicle/header CargoUnits/header CargoDocs/header WorkZoneData/header WatchForResponse/header WatchFor/header WitnessStatement/header VehMAYDAY/header VehicleData/header TransitVehicleInvolved/header TransitEventSource/header TrackSpecialCircumstances/header TrackResponsePersonnel/header TrackInvolvedVehicle/header TrackInvolvedPerson/header Severity/header SceneStaging/header Response/header ResourceAssignment/header RequestImmediateAssistance/header PlacardsLabelsSignage/header PersonInformation/header NeedRescueServices/header NeedOtherServices/header NewIncidentEvent/header NetworkConditions/header MergeIncidentEvent/oldHeaders/oldHeader/header MergeIncidentEvent/header ManageCommandStructure/header InfrastructureReport/header IncidentDescription/header GrantHandOff/header EstablishCenterProperties/header EstablishCenterOnLine/header DisableCenterOnLine/header DifferentialGPSCorrections/differentialGPSCorrection/header CloseIncidentEvent/header ClearOrRepairPlan/header ChangeCenterProperties/header CenterPlans/header AvailableForHandOff/header AssignedResources/header TrafficControlPlan/header SplitIncidentEvent/newHeaders/newHeader/header SplitIncidentEvent/header RouteAdvice/header RequestWorkZoneData/header RequestTrafficControlPlan/header RequestRouteAdvice/header RequestPreemptionUserData/header RequestPhysicalAssetStatus/header RequestPhysicalAsset/header RequestNetworkConditions/header RequestInformation/header RequestHandOff/header RequestForExternalInformation/header PublicIncidentDescription/header PreemptionUserData/header PollForHandOff/header PhysicalAssetStatus/header
source	<xs:complexType name="Header">   <xs:sequence>     <xs:element name="senderIncidentID" type="ReferenceID"/>     <!-- was [ITE.TMDD.Event-Identification;3215]          unique alpha numerical designation for incident          sending-center perspective -->     <xs:element name="inReplyTo" type="ReferenceID" minOccurs="0"/>     <!-- what prior dialog ref was this in reply to -->     <xs:element name="pedigreeSequence" type="PedigreeList" minOccurs="0"/>     <!-- past incidents handled by this  (sending)  center that          were folded into incident through an MIE message or          were parent incidents from which the current          incident was split out through an SIE message          along with the centers catagory for the event -->     <xs:element name="sender" type="OrganizationPosition" minOccurs="0"/>     <!-- the person,  Organization and various contact information          (office address,  phones,  radio assignment,  email,          ics position,  etc.)  regarding who sent or entered this data -->     <xs:element name="basics" type="Basics" minOccurs="0"/>     <!-- the location and extent of the event -->     <xs:element name="issueTime" type="IssueStamp" minOccurs="0"/>     <!-- The time the message was issued as well as the          revision number and the update verb -->     <xs:element name="updateTime" type="atis:DateTimePair" minOccurs="0"/>     <!-- the moment the data set was lasted updated          presumed to unknown if not specified -->     <xs:element name="expiryTime" type="atis:DateTimePair" minOccurs="0"/>     <!-- the moment the data set is presumed to be outdated          presumed to unknown if not specified -->     <xs:element name="onExpiry" type="atis:ExpireAction" minOccurs="0"/>     <!-- suggested use of this data once outdated  (renew,  discard,  etc.)          presumed to be unknown if not specified -->     <xs:element name="urgency" type="Urgency" minOccurs="0"/>     <!-- a gross rating of the urgency of the message  (0=least,  5=most) -->     <xs:element name="testMessage" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- Set TRUE if the message is part of a test or drill          such messages should be ignored by operational systems which          recieve them and not displayed to operating personal -->     <xs:element name="localHeader" type="local:Header" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element Header/senderIncidentID

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="senderIncidentID" type="ReferenceID"/>

element Header/inReplyTo

diagram
type	ReferenceID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="inReplyTo" type="ReferenceID" minOccurs="0"/>

element Header/pedigreeSequence

diagram
type	PedigreeList
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pedigree
source	<xs:element name="pedigreeSequence" type="PedigreeList" minOccurs="0"/>

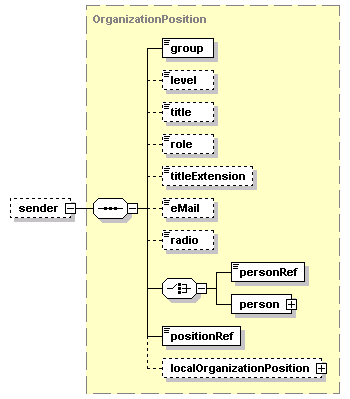

element Header/sender

diagram
type	OrganizationPosition
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	group level title role titleExtension eMail radio personRef person positionRef localOrganizationPosition
source	<xs:element name="sender" type="OrganizationPosition" minOccurs="0"/>

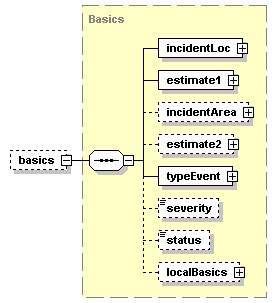

element Header/basics

diagram
type	Basics
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	incidentLoc estimate1 incidentArea estimate2 typeEvent severity status localBasics
source	<xs:element name="basics" type="Basics" minOccurs="0"/>

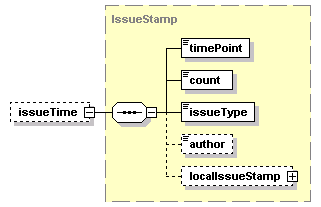

element Header/issueTime

diagram
type	IssueStamp
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timePoint count issueType author localIssueStamp
source	<xs:element name="issueTime" type="IssueStamp" minOccurs="0"/>

element Header/updateTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="updateTime" type="atis:DateTimePair" minOccurs="0"/>

element Header/expiryTime

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="expiryTime" type="atis:DateTimePair" minOccurs="0"/>

element Header/onExpiry

diagram
type	atis:ExpireAction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="onExpiry" type="atis:ExpireAction" minOccurs="0"/>

element Header/urgency

diagram
type	Urgency
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  5
source	<xs:element name="urgency" type="Urgency" minOccurs="0"/>

element Header/testMessage

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="testMessage" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

element Header/localHeader

diagram
type	local:Header
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localHeader" type="local:Header" minOccurs="0"/>
