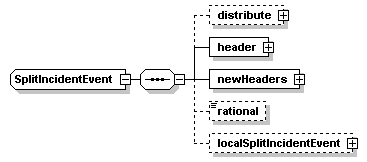

complexType SplitIncidentEvent
diagram
namespace http://www.IM-Draft-03-00-44a
children distribute header newHeaders rational localSplitIncidentEvent
used by
elements splitIncidentEvent IMWrapper/splitIncidentEvent
source <xs:complexType name="SplitIncidentEvent">
  <xs:sequence>
    <xs:element name="distribute" type="Distribution" minOccurs="0"/>
    <xs:element name="header" type="Header"/>
    <!-- if an inner element is not present then
         the header content of the message which
         carries this DF shall be applied to the
         context of this message. The header has the
         data creator,  time stamps,  location,
         and what to do when the message becomes
         old  (how to get a fresh one)  and the
         reference ID of this message or submessage -->
    <xs:element name="newHeaders">
      <xs:complexType>
        <xs:sequence minOccurs="2" maxOccurs="16">
          <xs:element name="newHeader">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="header" type="Header"/>
                <!-- new Header,  one for each split -->
                <xs:element name="basics" type="Basics" minOccurs="0"/>
                <!-- basic data on location,  type,  status -->
                <xs:element name="rational" minOccurs="0">
                  <xs:simpleType>
                    <xs:restriction base="FreeText">
                      <xs:minLength value="1"/>
                      <xs:maxLength value="255"/>
                    </xs:restriction>
                  </xs:simpleType>
                </xs:element>
                <!-- rationale of this specific part of the split
                           may contain dispatcher intent comments as well -->
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <!-- note that data above is for the post-split -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="rational" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="FreeText">
          <xs:minLength value="1"/>
          <xs:maxLength value="255"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- rationale of why this has occurred -->
    <xs:element name="localSplitIncidentEvent" type="local:SplitIncidentEvent" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

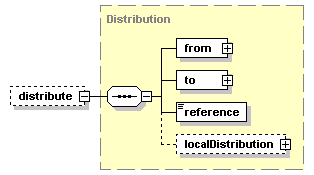

element SplitIncidentEvent/distribute
diagram
type Distribution
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children from to reference localDistribution
source <xs:element name="distribute" type="Distribution" minOccurs="0"/>

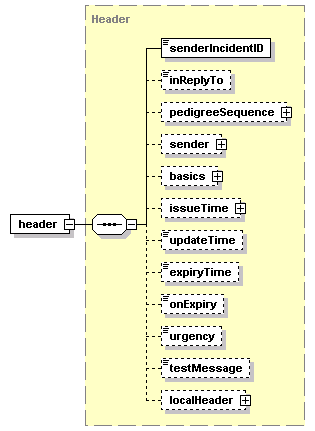

element SplitIncidentEvent/header
diagram
type Header
properties
isRef 0
content complex
children senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source <xs:element name="header" type="Header"/>

element SplitIncidentEvent/newHeaders
diagram
properties
isRef 0
content complex
children newHeader
source <xs:element name="newHeaders">
  <xs:complexType>
    <xs:sequence minOccurs="2" maxOccurs="16">
      <xs:element name="newHeader">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="header" type="Header"/>
            <!-- new Header,  one for each split -->
            <xs:element name="basics" type="Basics" minOccurs="0"/>
            <!-- basic data on location,  type,  status -->
            <xs:element name="rational" minOccurs="0">
              <xs:simpleType>
                <xs:restriction base="FreeText">
                  <xs:minLength value="1"/>
                  <xs:maxLength value="255"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <!-- rationale of this specific part of the split
                           may contain dispatcher intent comments as well -->
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <!-- note that data above is for the post-split -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element SplitIncidentEvent/newHeaders/newHeader
diagram
properties
isRef 0
content complex
children header basics rational
source <xs:element name="newHeader">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="header" type="Header"/>
      <!-- new Header,  one for each split -->
      <xs:element name="basics" type="Basics" minOccurs="0"/>
      <!-- basic data on location,  type,  status -->
      <xs:element name="rational" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="FreeText">
            <xs:minLength value="1"/>
            <xs:maxLength value="255"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <!-- rationale of this specific part of the split
                           may contain dispatcher intent comments as well -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element SplitIncidentEvent/newHeaders/newHeader/header
diagram
type Header
properties
isRef 0
content complex
children senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source <xs:element name="header" type="Header"/>

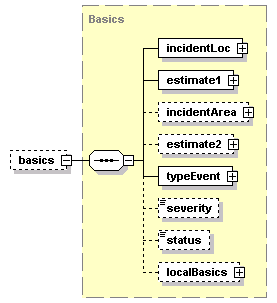

element SplitIncidentEvent/newHeaders/newHeader/basics
diagram
type Basics
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children incidentLoc estimate1 incidentArea estimate2 typeEvent severity status localBasics
source <xs:element name="basics" type="Basics" minOccurs="0"/>

element SplitIncidentEvent/newHeaders/newHeader/rational
diagram
type restriction of FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="rational" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="FreeText">
      <xs:minLength value="1"/>
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element SplitIncidentEvent/rational
diagram
type restriction of FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="rational" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="FreeText">
      <xs:minLength value="1"/>
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element SplitIncidentEvent/localSplitIncidentEvent
diagram
type local:SplitIncidentEvent
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSplitIncidentEvent" type="local:SplitIncidentEvent" minOccurs="0"/>
