complexType PollForHandOff

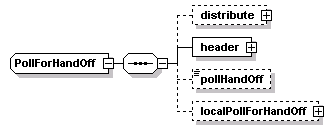

diagram
namespace http://www.IM-Draft-03-00-44a
children distribute header pollHandOff localPollForHandOff
used by
elements pollForHandOff IMWrapper/pollForHandOff
source <xs:complexType name="PollForHandOff">
  <xs:sequence>
    <xs:element name="distribute" type="Distribution" minOccurs="0"/>
    <xs:element name="header" type="Header"/>
    <!-- if an inner element is not present then
         the header content of the message which
         carries this DF shall be applied to the
         context of this message. The header has the
         data creator,  time stamps,  location,
         and what to do when the message becomes
         old  (how to get a fresh one)  and the
         reference ID of this message or submessage -->
    <xs:element name="pollHandOff" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="FreeText">
          <xs:minLength value="1"/>
          <xs:maxLength value="255"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- Human readable request here -->
    <xs:element name="localPollForHandOff" type="local:PollForHandOff" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element PollForHandOff/distribute

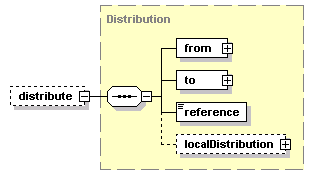

diagram
type Distribution
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children from to reference localDistribution
source <xs:element name="distribute" type="Distribution" minOccurs="0"/>

element PollForHandOff/header

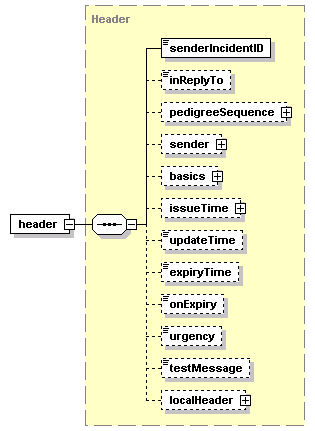

diagram
type Header
properties
isRef 0
content complex
children senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source <xs:element name="header" type="Header"/>

element PollForHandOff/pollHandOff
diagram
type restriction of FreeText
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="pollHandOff" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="FreeText">
      <xs:minLength value="1"/>
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element PollForHandOff/localPollForHandOff
diagram
type local:PollForHandOff
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localPollForHandOff" type="local:PollForHandOff" minOccurs="0"/>
