complexType EstablishCenterProperties

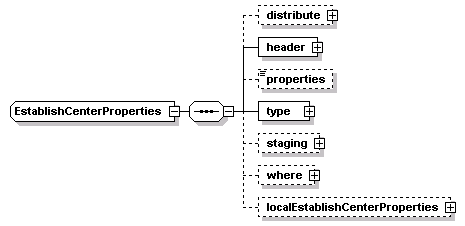

diagram
namespace	http://www.IM-Draft-03-00-44a
children	distribute header properties type staging where localEstablishCenterProperties
used by	elements  establishCenterProperties IMWrapper/establishCenterProperties
source	<xs:complexType name="EstablishCenterProperties">   <xs:sequence>     <xs:element name="distribute" type="Distribution" minOccurs="0"/>     <xs:element name="header" type="Header"/>     <!-- if an inner element is not present then          the header content of the message which          carries this DF shall be applied to the          context of this message. The header has the          data creator,  time stamps,  location,          and what to do when the message becomes          old  (how to get a fresh one)  and the          reference ID of this message or submessage -->     <xs:element name="properties" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="1"/>           <xs:maxLength value="4000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <!-- relate a static set of elements here -->     <xs:element name="type" type="CenterType"/>     <!-- function and gross uses          does this center control other centers?          is this center transitory in nature?          is this an ICP center  (temporary == Y too) ?          do multiple agencies use this single center?          is the center in fact a vehicle  (ALERT) ?          does this center have reponse plans loaded? -->     <xs:element name="staging" type="StagingArea" minOccurs="0"/>     <!-- the primary staging entry          used for centers which are mobile          or temp ICP use  (not fixed site ones) -->     <xs:element name="where" type="lrms:LocationReference" minOccurs="0"/>     <!-- Based on [SAE.LRMS.ANY]          relate a polygon of coverage here          at some point in the future this message may fit          an as yet undeveloped Emg Response format -->     <xs:element name="localEstablishCenterProperties" type="local:EstablishCenterProperties" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element EstablishCenterProperties/distribute

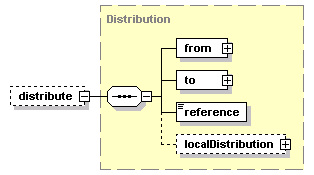

diagram
type	Distribution
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	from to reference localDistribution
source	<xs:element name="distribute" type="Distribution" minOccurs="0"/>

element EstablishCenterProperties/header

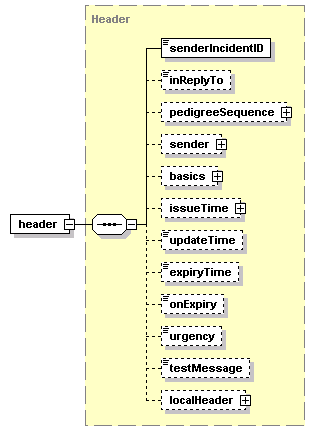

diagram
type	Header
properties	isRef  0 content  complex
children	senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source	<xs:element name="header" type="Header"/>

element EstablishCenterProperties/properties

diagram
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  4000
source	<xs:element name="properties" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="4000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element EstablishCenterProperties/type

diagram
type	CenterType
properties	isRef  0 content  complex
children	centerID centerHint centerHandles centerType localCenterType
source	<xs:element name="type" type="CenterType"/>

element EstablishCenterProperties/staging

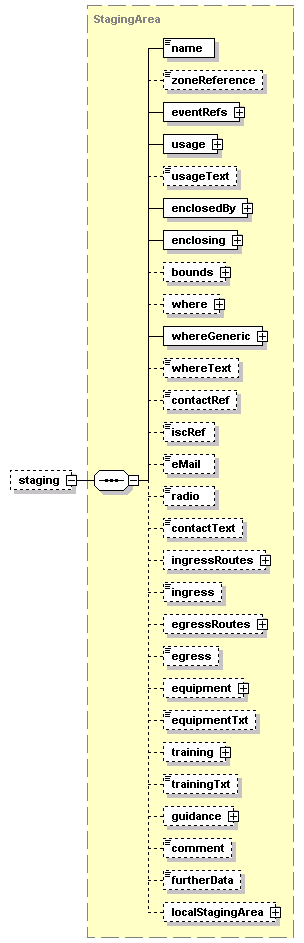

diagram
type	StagingArea
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	name zoneReference eventRefs usage usageText enclosedBy enclosing bounds where whereGeneric whereText contactRef iscRef eMail radio contactText ingressRoutes ingress egressRoutes egress equipment equipmentTxt training trainingTxt guidance comment furtherData localStagingArea
source	<xs:element name="staging" type="StagingArea" minOccurs="0"/>

element EstablishCenterProperties/where

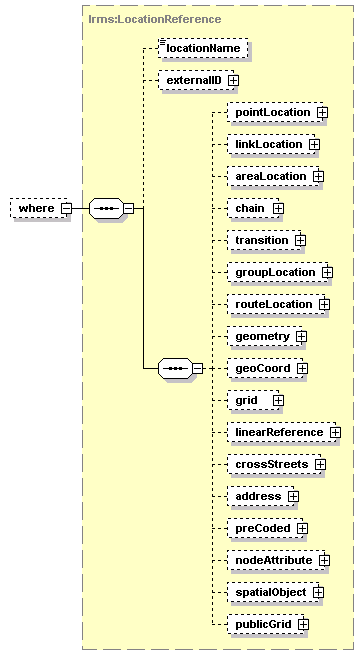

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="where" type="lrms:LocationReference" minOccurs="0"/>

element EstablishCenterProperties/localEstablishCenterProperties

diagram
type	local:EstablishCenterProperties
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localEstablishCenterProperties" type="local:EstablishCenterProperties" minOccurs="0"/>
