complexType CenterType

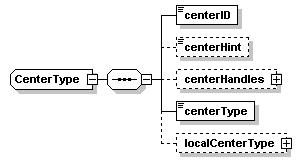

diagram
namespace	http://www.IM-Draft-03-00-44a
children	centerID centerHint centerHandles centerType localCenterType
used by	elements  InjuryData/centerReference Description/involvedCenters/involvedCenter Impact/involvedCenters/involvedCenter ChangeCenterProperties/type DisableCenterOnLine/type EstablishCenterOnLine/type EstablishCenterProperties/type
source	<xs:complexType name="CenterType">   <xs:sequence>     <!-- Add agency ID and other name value information          Add agency ID and other name value information -->     <xs:element name="centerID" type="ReferenceID"/>     <!-- A world unique value for the center -->     <xs:element name="centerHint" type="FreeText" minOccurs="0"/>     <!-- a machine processable string which can          be used to provide routing hints regarding          how to find the center in the local comm          network  (perhaps a URI or IP) -->     <xs:element name="centerHandles" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="16">           <xs:element name="centerHandle" type="itis:ResponderGroupAffected"/>           <!-- types of Responders it handles -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="centerType" type="CenterTypeNational"/>     <!-- the type of center that this is -->     <xs:element name="localCenterType" type="local:CenterType" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element CenterType/centerID

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="centerID" type="ReferenceID"/>

element CenterType/centerHint

diagram
type	FreeText
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="centerHint" type="FreeText" minOccurs="0"/>

element CenterType/centerHandles

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	centerHandle
source	<xs:element name="centerHandles" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="16">       <xs:element name="centerHandle" type="itis:ResponderGroupAffected"/>       <!-- types of Responders it handles -->     </xs:sequence>   </xs:complexType> </xs:element>

element CenterType/centerHandles/centerHandle

diagram
type	itis:ResponderGroupAffected
properties	isRef  0 content  simple
source	<xs:element name="centerHandle" type="itis:ResponderGroupAffected"/>

element CenterType/centerType

diagram
type	CenterTypeNational
properties	isRef  0 content  simple
source	<xs:element name="centerType" type="CenterTypeNational"/>

element CenterType/localCenterType

diagram
type	local:CenterType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCenterType" type="local:CenterType" minOccurs="0"/>
