| elements | MobileIDXWrapper/description IDX-Wrapper/descriptionReports/descriptionReport |
| documentation |

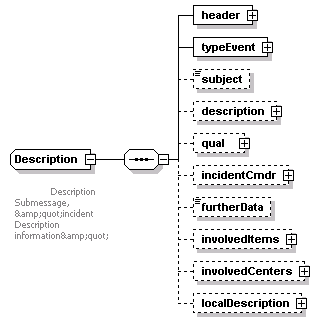

| Description Submessage, "incident Description information" |
<xs:annotation>
<xs:documentation>
Description Submessage, &quot;incident Description information&quot;
</xs:documentation>
</xs:annotation>
<xs:sequence>

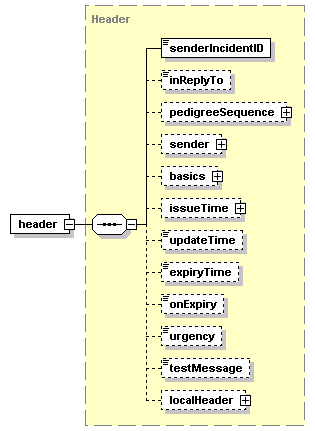

<xs:element name="header" type="Header"/>
<!-- if an inner element is not present then
the header content of the message which
carries this DF shall be applied to the
context of this message. The header has the
data creator, time stamps, location,
and what to do when the message becomes
old (how to get a fresh one) and the
reference ID of this message or submessage -->

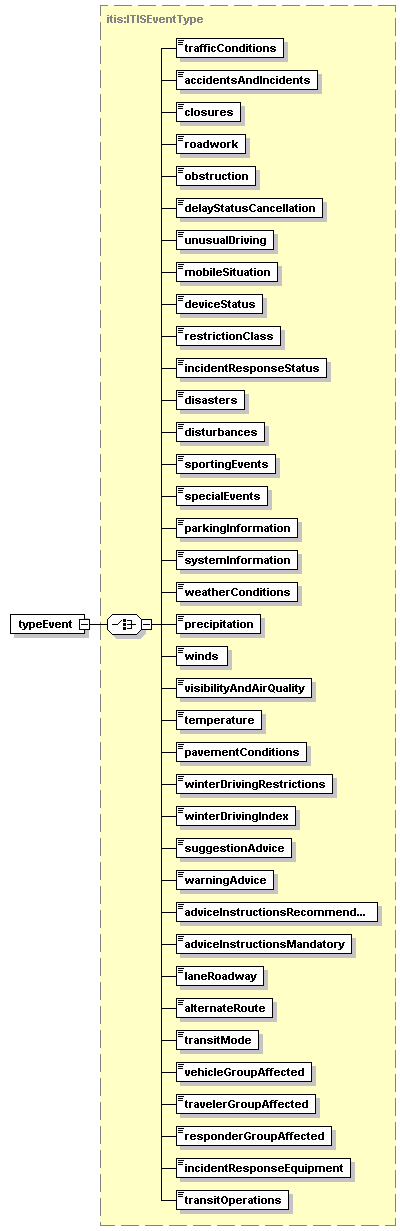

<xs:element name="typeEvent" type="itis:ITISEventType"/>
<!-- a catagory and an item from that catagory
Uses the same basic types as ITIS/ATIS/TMDD -->
<xs:element name="subject" type="FreeText" minOccurs="0"/>
<!-- used as an OPTIONAL subject summary line -->

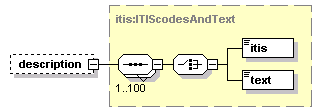

<xs:element name="description" type="itis:ITIScodesAndText" minOccurs="0"/>
<!-- a combination of ITIS phrase codes and free text
which can be used to carry any possible message text
if there is a need to break data into groups of
description / cause / advice or to provide summary
counts of injuries or vehicles, then use the ATIS event -->
<xs:element name="qual" type="Reliability" minOccurs="0"/>
<!-- reliability estimate of the above data -->

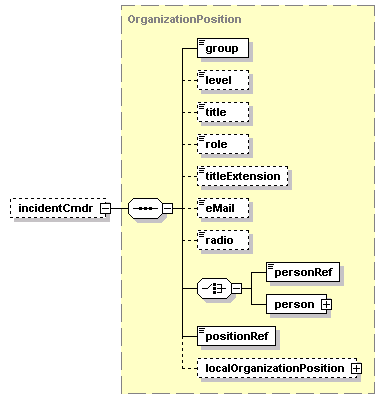

<xs:element name="incidentCmdr" type="OrganizationPosition" minOccurs="0"/>
<!-- used to sent the incidentCmdr when needed or known -->
<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
<!-- a URL to any related data
note that the data returned by such a link is not
controled by the standard and may vary over time -->
<xs:element name="involvedItems" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="500">
<xs:element name="involvedItem" type="ReferenceID"/>
<!-- A list of references to other objects (people or things) that are known to be involved in this event -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="involvedCenters" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="50">

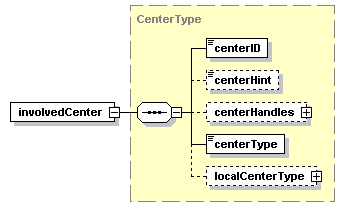

<xs:element name="involvedCenter" type="CenterType"/>
<!-- A list of other 1512 centers which are engaged or expected to become engaged in this event the contents of this feild can used to determine who to send a message to when other indications are not present -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localDescription" type="local:Description" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
