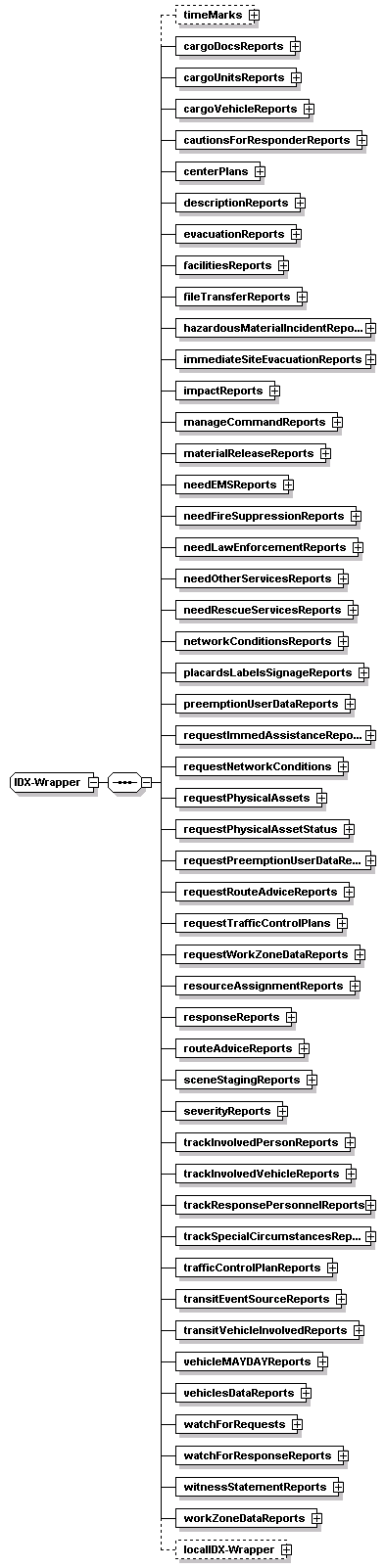

complexType IDX-Wrapper

diagram
namespace	http://www.IM-Draft-03-00-44a
children	timeMarks cargoDocsReports cargoUnitsReports cargoVehicleReports cautionsForResponderReports centerPlans descriptionReports evacuationReports facilitiesReports fileTransferReports hazardousMaterialIncidentReports immediateSiteEvacuationReports impactReports manageCommandReports materialReleaseReports needEMSReports needFireSuppressionReports needLawEnforcementReports needOtherServicesReports needRescueServicesReports networkConditionsReports placardsLabelsSignageReports preemptionUserDataReports requestImmedAssistanceReports requestNetworkConditions requestPhysicalAssets requestPhysicalAssetStatus requestPreemptionUserDataReports requestRouteAdviceReports requestTrafficControlPlans requestWorkZoneDataReports resourceAssignmentReports responseReports routeAdviceReports sceneStagingReports severityReports trackInvolvedPersonReports trackInvolvedVehicleReports trackResponsePersonnelReports trackSpecialCircumstancesReports trafficControlPlanReports transitEventSourceReports transitVehicleInvolvedReports vehicleMAYDAYReports vehiclesDataReports watchForRequests watchForResponseReports witnessStatementReports workZoneDataReports localIDX-Wrapper
used by	elements  IncidentDescription/idxSubParts PublicIncidentDescription/idxSubParts
source	<xs:complexType name="IDX-Wrapper">   <xs:sequence>     <xs:element name="timeMarks" type="TimeMarks" minOccurs="0"/>     <!-- a collecton of event times -->     <xs:element name="cargoDocsReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="cargoDocsReport" type="CargoDocs"/>           <!-- From 1512.Three -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="cargoUnitsReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="cargoUnitsReport" type="CargoUnits"/>           <!-- From 1512.Three -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="cargoVehicleReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="cargoVehicleReport" type="CargoVehicle"/>           <!-- From 1512.Three -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="cautionsForResponderReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="cautionsForResponderReport" type="CautionsForResponders"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="centerPlans">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="centerPlan" type="CenterPlans"/>           <!-- From 1512.Base  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="descriptionReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="descriptionReport" type="Description"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="evacuationReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="evacuationReport" type="Evacuation"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="facilitiesReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="facilitiesReport" type="Facilities"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="fileTransferReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="fileTransferReport" type="FileTransfer"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="hazardousMaterialIncidentReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="hazardousMaterialIncidentReport" type="HazardousMaterialIncidentReport"/>           <!-- From 1512.Three -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="immediateSiteEvacuationReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="immediateSiteEvacuationReport" type="ImmediateSiteEvacuation"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="impactReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="impactReport" type="Impact"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="manageCommandReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="manageCommandReport" type="ManageCommandStructure"/>           <!-- From 1512.Two  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="materialReleaseReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="materialReleaseReport" type="MaterialRelease"/>           <!-- From 1512.Three -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="needEMSReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="needEMSReport" type="NeedEMS"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="needFireSuppressionReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="needFireSuppressionReport" type="NeedFireSuppression"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="needLawEnforcementReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="needLawEnforcementReport" type="NeedLawEnforcement"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="needOtherServicesReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="needOtherServicesReport" type="NeedOtherServices"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="needRescueServicesReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="needRescueServicesReport" type="NeedRescueServices"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="networkConditionsReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="networkConditionsReport" type="NetworkConditions"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="placardsLabelsSignageReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="placardsLabelsSignageReport" type="PlacardsLabelsSignage"/>           <!-- From 1512.Three -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="preemptionUserDataReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="preemptionUserDataReport" type="PreemptionUserData"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestImmedAssistanceReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestImmedAssistanceReport" type="RequestImmediateAssistance"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestNetworkConditions">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestNetworkCondition" type="RequestNetworkConditions"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestPhysicalAssets">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestPhysicalAsset" type="RequestPhysicalAsset"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestPhysicalAssetStatus">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestPhysicalAssetStatu" type="RequestPhysicalAssetStatus"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestPreemptionUserDataReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestPreemptionUserDataReport" type="RequestPreemptionUserData"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestRouteAdviceReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestRouteAdviceReport" type="RequestRouteAdvice"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestTrafficControlPlans">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestTrafficControlPlan" type="RequestTrafficControlPlan"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="requestWorkZoneDataReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="requestWorkZoneDataReport" type="RequestWorkZoneData"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="resourceAssignmentReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="resourceAssignmentReport" type="ResourceAssignment"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="responseReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="responseReport" type="Response"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="routeAdviceReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="routeAdviceReport" type="RouteAdvice"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="sceneStagingReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="sceneStagingReport" type="SceneStaging"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="severityReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="severityReport" type="Severity"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trackInvolvedPersonReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="trackInvolvedPersonReport" type="TrackInvolvedPerson"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trackInvolvedVehicleReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="trackInvolvedVehicleReport" type="TrackInvolvedVehicle"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trackResponsePersonnelReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="trackResponsePersonnelReport" type="TrackResponsePersonnel"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trackSpecialCircumstancesReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="trackSpecialCircumstancesReport" type="TrackSpecialCircumstances"/>           <!-- From 1512.Two -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trafficControlPlanReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="trafficControlPlanReport" type="TrafficControlPlan"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="transitEventSourceReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="transitEventSourceReport" type="TransitEventSource"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="transitVehicleInvolvedReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="transitVehicleInvolvedReport" type="TransitVehicleInvolved"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="vehicleMAYDAYReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="vehicleMAYDAYReport" type="VehMAYDAY"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="vehiclesDataReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="vehiclesDataReport" type="VehicleData"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="watchForRequests">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="watchForRequest" type="WatchFor"/>           <!-- From 1512.Two  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="watchForResponseReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="watchForResponseReport" type="WatchForResponse"/>           <!-- From 1512.Two  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="witnessStatementReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="witnessStatementReport" type="WitnessStatement"/>           <!-- From 1512.Base -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="workZoneDataReports">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="64">           <xs:element name="workZoneDataReport" type="WorkZoneData"/>           <!-- From 1512.One  (and also a msg) -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localIDX-Wrapper" type="local:IDX-Wrapper" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element IDX-Wrapper/timeMarks

diagram
type	TimeMarks
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timeMark
source	<xs:element name="timeMarks" type="TimeMarks" minOccurs="0"/>

element IDX-Wrapper/cargoDocsReports

diagram
properties	isRef  0 content  complex
children	cargoDocsReport
source	<xs:element name="cargoDocsReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="cargoDocsReport" type="CargoDocs"/>       <!-- From 1512.Three -->     </xs:sequence>   </xs:complexType> </xs:element>

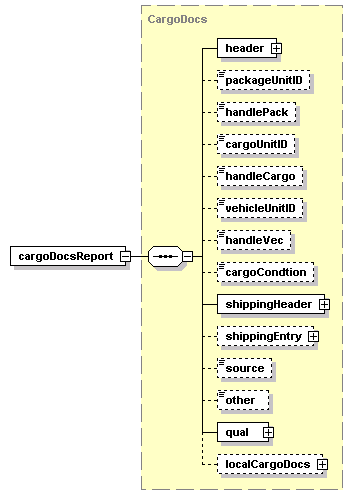

element IDX-Wrapper/cargoDocsReports/cargoDocsReport

diagram
type	CargoDocs
properties	isRef  0 content  complex
children	header packageUnitID handlePack cargoUnitID handleCargo vehicleUnitID handleVec cargoCondtion shippingHeader shippingEntry source other qual localCargoDocs
source	<xs:element name="cargoDocsReport" type="CargoDocs"/>

element IDX-Wrapper/cargoUnitsReports

diagram
properties	isRef  0 content  complex
children	cargoUnitsReport
source	<xs:element name="cargoUnitsReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="cargoUnitsReport" type="CargoUnits"/>       <!-- From 1512.Three -->     </xs:sequence>   </xs:complexType> </xs:element>

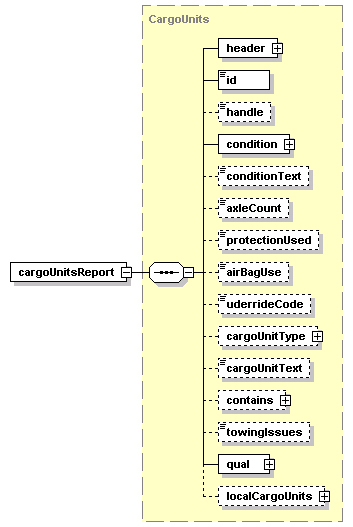

element IDX-Wrapper/cargoUnitsReports/cargoUnitsReport

diagram
type	CargoUnits
properties	isRef  0 content  complex
children	header id handle condition conditionText axleCount protectionUsed airBagUse uderrideCode cargoUnitType cargoUnitText contains towingIssues qual localCargoUnits
source	<xs:element name="cargoUnitsReport" type="CargoUnits"/>

element IDX-Wrapper/cargoVehicleReports

diagram
properties	isRef  0 content  complex
children	cargoVehicleReport
source	<xs:element name="cargoVehicleReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="cargoVehicleReport" type="CargoVehicle"/>       <!-- From 1512.Three -->     </xs:sequence>   </xs:complexType> </xs:element>

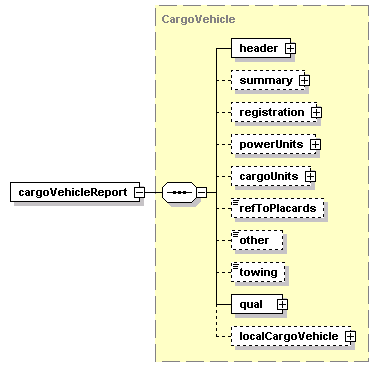

element IDX-Wrapper/cargoVehicleReports/cargoVehicleReport

diagram
type	CargoVehicle
properties	isRef  0 content  complex
children	header summary registration powerUnits cargoUnits refToPlacards other towing qual localCargoVehicle
source	<xs:element name="cargoVehicleReport" type="CargoVehicle"/>

element IDX-Wrapper/cautionsForResponderReports

diagram
properties	isRef  0 content  complex
children	cautionsForResponderReport
source	<xs:element name="cautionsForResponderReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="cautionsForResponderReport" type="CautionsForResponders"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

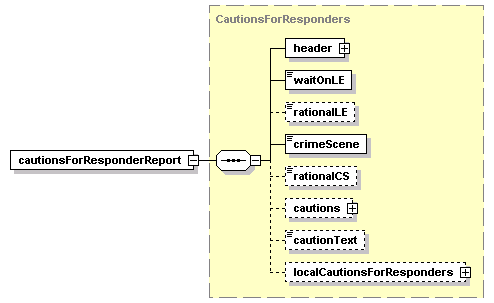

element IDX-Wrapper/cautionsForResponderReports/cautionsForResponderReport

diagram
type	CautionsForResponders
properties	isRef  0 content  complex
children	header waitOnLE rationalLE crimeScene rationalCS cautions cautionText localCautionsForResponders
source	<xs:element name="cautionsForResponderReport" type="CautionsForResponders"/>

element IDX-Wrapper/centerPlans

diagram
properties	isRef  0 content  complex
children	centerPlan
source	<xs:element name="centerPlans">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="centerPlan" type="CenterPlans"/>       <!-- From 1512.Base  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

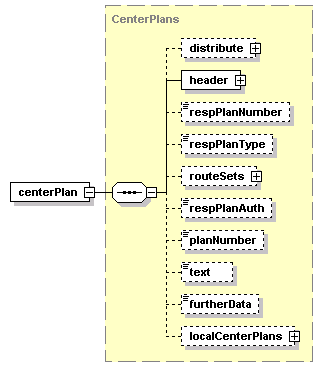

element IDX-Wrapper/centerPlans/centerPlan

diagram
type	CenterPlans
properties	isRef  0 content  complex
children	distribute header respPlanNumber respPlanType routeSets respPlanAuth planNumber text furtherData localCenterPlans
source	<xs:element name="centerPlan" type="CenterPlans"/>

element IDX-Wrapper/descriptionReports

diagram
properties	isRef  0 content  complex
children	descriptionReport
source	<xs:element name="descriptionReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="descriptionReport" type="Description"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

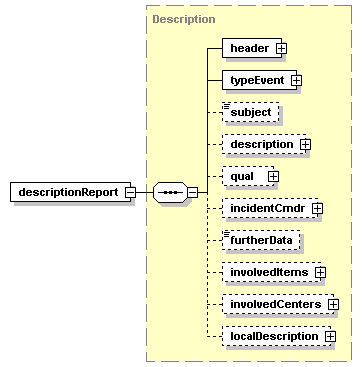

element IDX-Wrapper/descriptionReports/descriptionReport

diagram
type	Description
properties	isRef  0 content  complex
children	header typeEvent subject description qual incidentCmdr furtherData involvedItems involvedCenters localDescription
source	<xs:element name="descriptionReport" type="Description"/>

element IDX-Wrapper/evacuationReports

diagram
properties	isRef  0 content  complex
children	evacuationReport
source	<xs:element name="evacuationReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="evacuationReport" type="Evacuation"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

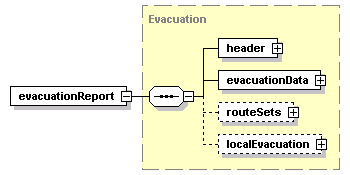

element IDX-Wrapper/evacuationReports/evacuationReport

diagram
type	Evacuation
properties	isRef  0 content  complex
children	header evacuationData routeSets localEvacuation
source	<xs:element name="evacuationReport" type="Evacuation"/>

element IDX-Wrapper/facilitiesReports

diagram
properties	isRef  0 content  complex
children	facilitiesReport
source	<xs:element name="facilitiesReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="facilitiesReport" type="Facilities"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

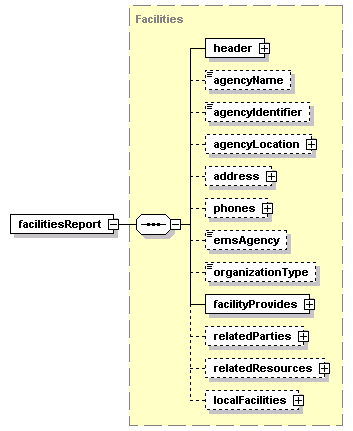

element IDX-Wrapper/facilitiesReports/facilitiesReport

diagram
type	Facilities
properties	isRef  0 content  complex
children	header agencyName agencyIdentifier agencyLocation address phones emsAgency organizationType facilityProvides relatedParties relatedResources localFacilities
source	<xs:element name="facilitiesReport" type="Facilities"/>

element IDX-Wrapper/fileTransferReports

diagram
properties	isRef  0 content  complex
children	fileTransferReport
source	<xs:element name="fileTransferReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="fileTransferReport" type="FileTransfer"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

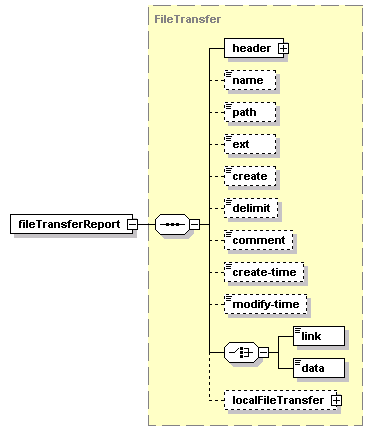

element IDX-Wrapper/fileTransferReports/fileTransferReport

diagram
type	FileTransfer
properties	isRef  0 content  complex
children	header name path ext create delimit comment create-time modify-time link data localFileTransfer
source	<xs:element name="fileTransferReport" type="FileTransfer"/>

element IDX-Wrapper/hazardousMaterialIncidentReports

diagram
properties	isRef  0 content  complex
children	hazardousMaterialIncidentReport
source	<xs:element name="hazardousMaterialIncidentReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="hazardousMaterialIncidentReport" type="HazardousMaterialIncidentReport"/>       <!-- From 1512.Three -->     </xs:sequence>   </xs:complexType> </xs:element>

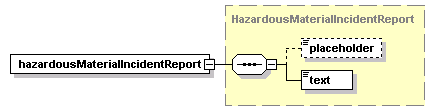

element IDX-Wrapper/hazardousMaterialIncidentReports/hazardousMaterialIncidentReport

diagram
type	HazardousMaterialIncidentReport
properties	isRef  0 content  complex
children	placeholder text
source	<xs:element name="hazardousMaterialIncidentReport" type="HazardousMaterialIncidentReport"/>

element IDX-Wrapper/immediateSiteEvacuationReports

diagram
properties	isRef  0 content  complex
children	immediateSiteEvacuationReport
source	<xs:element name="immediateSiteEvacuationReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="immediateSiteEvacuationReport" type="ImmediateSiteEvacuation"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

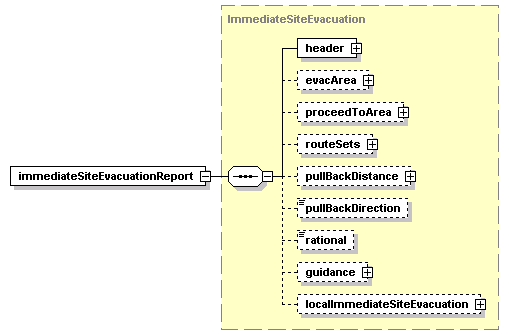

element IDX-Wrapper/immediateSiteEvacuationReports/immediateSiteEvacuationReport

diagram
type	ImmediateSiteEvacuation
properties	isRef  0 content  complex
children	header evacArea proceedToArea routeSets pullBackDistance pullBackDirection rational guidance localImmediateSiteEvacuation
source	<xs:element name="immediateSiteEvacuationReport" type="ImmediateSiteEvacuation"/>

element IDX-Wrapper/impactReports

diagram
properties	isRef  0 content  complex
children	impactReport
source	<xs:element name="impactReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="impactReport" type="Impact"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

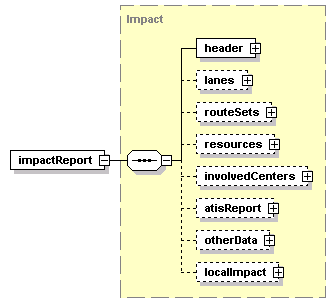

element IDX-Wrapper/impactReports/impactReport

diagram
type	Impact
properties	isRef  0 content  complex
children	header lanes routeSets resources involvedCenters atisReport otherData localImpact
source	<xs:element name="impactReport" type="Impact"/>

element IDX-Wrapper/manageCommandReports

diagram
properties	isRef  0 content  complex
children	manageCommandReport
source	<xs:element name="manageCommandReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="manageCommandReport" type="ManageCommandStructure"/>       <!-- From 1512.Two  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

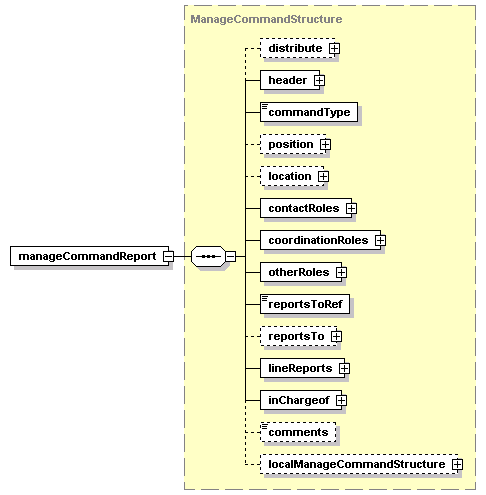

element IDX-Wrapper/manageCommandReports/manageCommandReport

diagram
type	ManageCommandStructure
properties	isRef  0 content  complex
children	distribute header commandType position location contactRoles coordinationRoles otherRoles reportsToRef reportsTo lineReports inChargeof comments localManageCommandStructure
source	<xs:element name="manageCommandReport" type="ManageCommandStructure"/>

element IDX-Wrapper/materialReleaseReports

diagram
properties	isRef  0 content  complex
children	materialReleaseReport
source	<xs:element name="materialReleaseReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="materialReleaseReport" type="MaterialRelease"/>       <!-- From 1512.Three -->     </xs:sequence>   </xs:complexType> </xs:element>

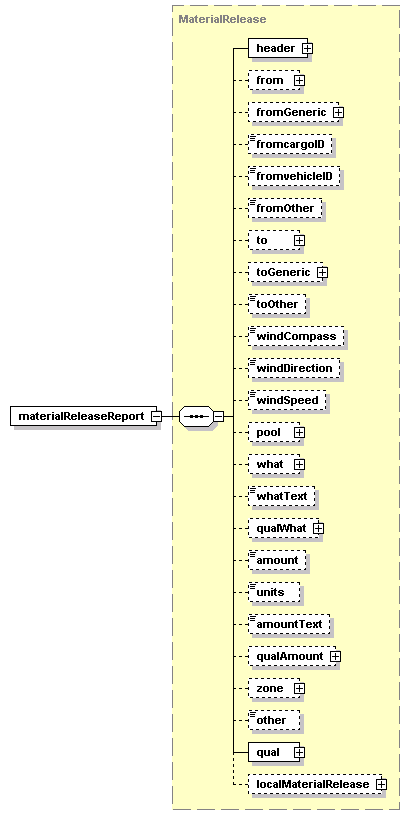

element IDX-Wrapper/materialReleaseReports/materialReleaseReport

diagram
type	MaterialRelease
properties	isRef  0 content  complex
children	header from fromGeneric fromcargoID fromvehicleID fromOther to toGeneric toOther windCompass windDirection windSpeed pool what whatText qualWhat amount units amountText qualAmount zone other qual localMaterialRelease
source	<xs:element name="materialReleaseReport" type="MaterialRelease"/>

element IDX-Wrapper/needEMSReports

diagram
properties	isRef  0 content  complex
children	needEMSReport
source	<xs:element name="needEMSReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="needEMSReport" type="NeedEMS"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

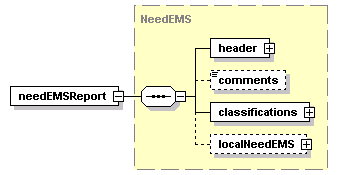

element IDX-Wrapper/needEMSReports/needEMSReport

diagram
type	NeedEMS
properties	isRef  0 content  complex
children	header comments classifications localNeedEMS
source	<xs:element name="needEMSReport" type="NeedEMS"/>

element IDX-Wrapper/needFireSuppressionReports

diagram
properties	isRef  0 content  complex
children	needFireSuppressionReport
source	<xs:element name="needFireSuppressionReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="needFireSuppressionReport" type="NeedFireSuppression"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

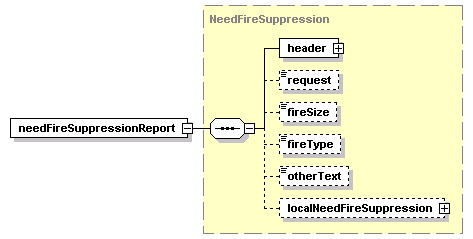

element IDX-Wrapper/needFireSuppressionReports/needFireSuppressionReport

diagram
type	NeedFireSuppression
properties	isRef  0 content  complex
children	header request fireSize fireType otherText localNeedFireSuppression
source	<xs:element name="needFireSuppressionReport" type="NeedFireSuppression"/>

element IDX-Wrapper/needLawEnforcementReports

diagram
properties	isRef  0 content  complex
children	needLawEnforcementReport
source	<xs:element name="needLawEnforcementReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="needLawEnforcementReport" type="NeedLawEnforcement"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

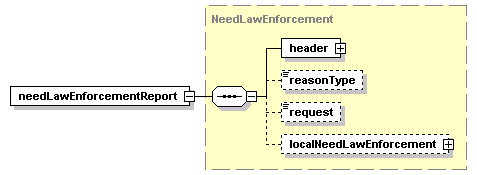

element IDX-Wrapper/needLawEnforcementReports/needLawEnforcementReport

diagram
type	NeedLawEnforcement
properties	isRef  0 content  complex
children	header reasonType request localNeedLawEnforcement
source	<xs:element name="needLawEnforcementReport" type="NeedLawEnforcement"/>

element IDX-Wrapper/needOtherServicesReports

diagram
properties	isRef  0 content  complex
children	needOtherServicesReport
source	<xs:element name="needOtherServicesReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="needOtherServicesReport" type="NeedOtherServices"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

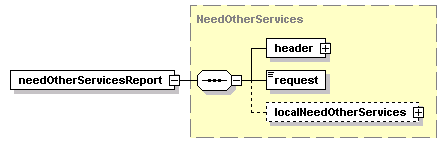

element IDX-Wrapper/needOtherServicesReports/needOtherServicesReport

diagram
type	NeedOtherServices
properties	isRef  0 content  complex
children	header request localNeedOtherServices
source	<xs:element name="needOtherServicesReport" type="NeedOtherServices"/>

element IDX-Wrapper/needRescueServicesReports

diagram
properties	isRef  0 content  complex
children	needRescueServicesReport
source	<xs:element name="needRescueServicesReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="needRescueServicesReport" type="NeedRescueServices"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

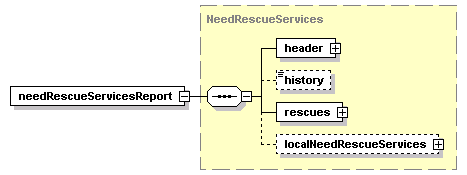

element IDX-Wrapper/needRescueServicesReports/needRescueServicesReport

diagram
type	NeedRescueServices
properties	isRef  0 content  complex
children	header history rescues localNeedRescueServices
source	<xs:element name="needRescueServicesReport" type="NeedRescueServices"/>

element IDX-Wrapper/networkConditionsReports

diagram
properties	isRef  0 content  complex
children	networkConditionsReport
source	<xs:element name="networkConditionsReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="networkConditionsReport" type="NetworkConditions"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

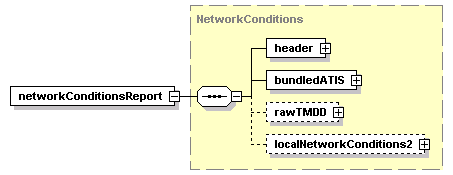

element IDX-Wrapper/networkConditionsReports/networkConditionsReport

diagram
type	NetworkConditions
properties	isRef  0 content  complex
children	header bundledATIS rawTMDD localNetworkConditions2
source	<xs:element name="networkConditionsReport" type="NetworkConditions"/>

element IDX-Wrapper/placardsLabelsSignageReports

diagram
properties	isRef  0 content  complex
children	placardsLabelsSignageReport
source	<xs:element name="placardsLabelsSignageReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="placardsLabelsSignageReport" type="PlacardsLabelsSignage"/>       <!-- From 1512.Three -->     </xs:sequence>   </xs:complexType> </xs:element>

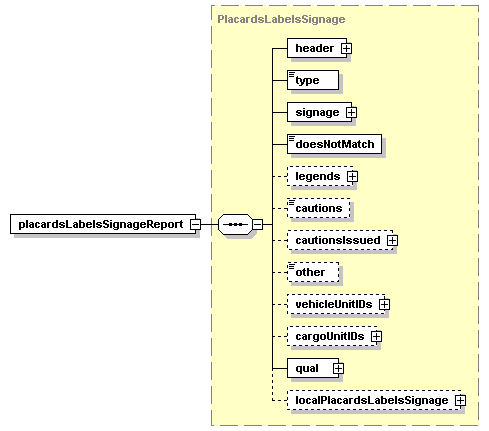

element IDX-Wrapper/placardsLabelsSignageReports/placardsLabelsSignageReport

diagram
type	PlacardsLabelsSignage
properties	isRef  0 content  complex
children	header type signage doesNotMatch legends cautions cautionsIssued other vehicleUnitIDs cargoUnitIDs qual localPlacardsLabelsSignage
source	<xs:element name="placardsLabelsSignageReport" type="PlacardsLabelsSignage"/>

element IDX-Wrapper/preemptionUserDataReports

diagram
properties	isRef  0 content  complex
children	preemptionUserDataReport
source	<xs:element name="preemptionUserDataReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="preemptionUserDataReport" type="PreemptionUserData"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

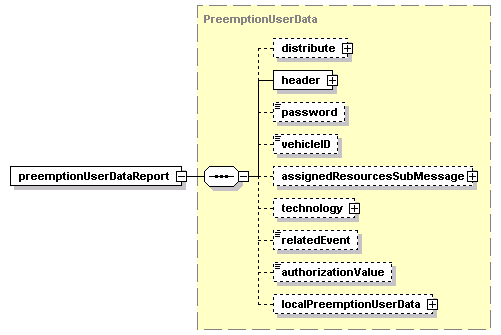

element IDX-Wrapper/preemptionUserDataReports/preemptionUserDataReport

diagram
type	PreemptionUserData
properties	isRef  0 content  complex
children	distribute header password vehicleID assignedResourcesSubMessage technology relatedEvent authorizationValue localPreemptionUserData
source	<xs:element name="preemptionUserDataReport" type="PreemptionUserData"/>

element IDX-Wrapper/requestImmedAssistanceReports

diagram
properties	isRef  0 content  complex
children	requestImmedAssistanceReport
source	<xs:element name="requestImmedAssistanceReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestImmedAssistanceReport" type="RequestImmediateAssistance"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

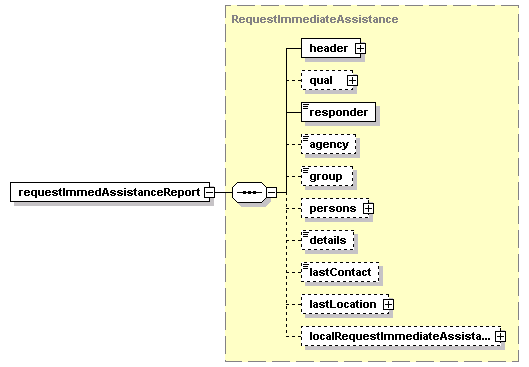

element IDX-Wrapper/requestImmedAssistanceReports/requestImmedAssistanceReport

diagram
type	RequestImmediateAssistance
properties	isRef  0 content  complex
children	header qual responder agency group persons details lastContact lastLocation localRequestImmediateAssistance
source	<xs:element name="requestImmedAssistanceReport" type="RequestImmediateAssistance"/>

element IDX-Wrapper/requestNetworkConditions

diagram
properties	isRef  0 content  complex
children	requestNetworkCondition
source	<xs:element name="requestNetworkConditions">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestNetworkCondition" type="RequestNetworkConditions"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

element IDX-Wrapper/requestNetworkConditions/requestNetworkCondition

diagram
type	RequestNetworkConditions
properties	isRef  0 content  complex
children	distribute header eventTypes conditionTypes focus summary videoRequest whenStart whenEnd subscribeMe subscribeLength localRequestNetworkConditions
source	<xs:element name="requestNetworkCondition" type="RequestNetworkConditions"/>

element IDX-Wrapper/requestPhysicalAssets

diagram
properties	isRef  0 content  complex
children	requestPhysicalAsset
source	<xs:element name="requestPhysicalAssets">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestPhysicalAsset" type="RequestPhysicalAsset"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

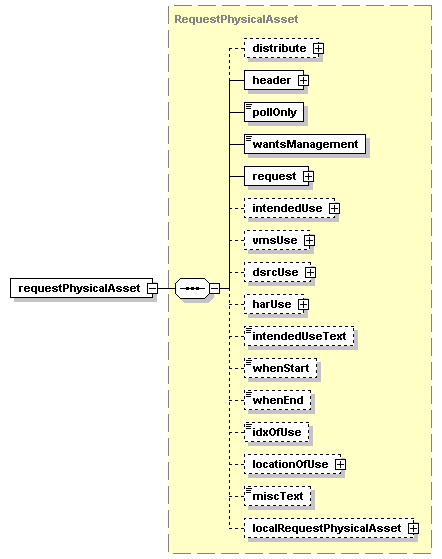

element IDX-Wrapper/requestPhysicalAssets/requestPhysicalAsset

diagram
type	RequestPhysicalAsset
properties	isRef  0 content  complex
children	distribute header pollOnly wantsManagement request intendedUse vmsUse dsrcUse harUse intendedUseText whenStart whenEnd idxOfUse locationOfUse miscText localRequestPhysicalAsset
source	<xs:element name="requestPhysicalAsset" type="RequestPhysicalAsset"/>

element IDX-Wrapper/requestPhysicalAssetStatus

diagram
properties	isRef  0 content  complex
children	requestPhysicalAssetStatu
source	<xs:element name="requestPhysicalAssetStatus">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestPhysicalAssetStatu" type="RequestPhysicalAssetStatus"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

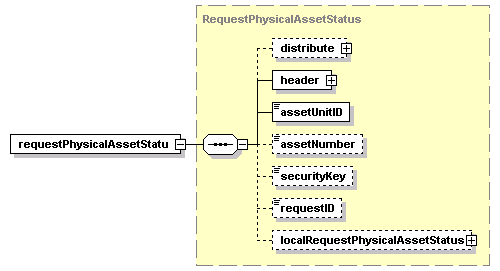

element IDX-Wrapper/requestPhysicalAssetStatus/requestPhysicalAssetStatu

diagram
type	RequestPhysicalAssetStatus
properties	isRef  0 content  complex
children	distribute header assetUnitID assetNumber securityKey requestID localRequestPhysicalAssetStatus
source	<xs:element name="requestPhysicalAssetStatu" type="RequestPhysicalAssetStatus"/>

element IDX-Wrapper/requestPreemptionUserDataReports

diagram
properties	isRef  0 content  complex
children	requestPreemptionUserDataReport
source	<xs:element name="requestPreemptionUserDataReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestPreemptionUserDataReport" type="RequestPreemptionUserData"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

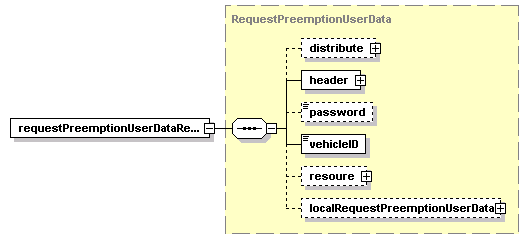

element IDX-Wrapper/requestPreemptionUserDataReports/requestPreemptionUserDataReport

diagram
type	RequestPreemptionUserData
properties	isRef  0 content  complex
children	distribute header password vehicleID resoure localRequestPreemptionUserData
source	<xs:element name="requestPreemptionUserDataReport" type="RequestPreemptionUserData"/>

element IDX-Wrapper/requestRouteAdviceReports

diagram
properties	isRef  0 content  complex
children	requestRouteAdviceReport
source	<xs:element name="requestRouteAdviceReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestRouteAdviceReport" type="RequestRouteAdvice"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

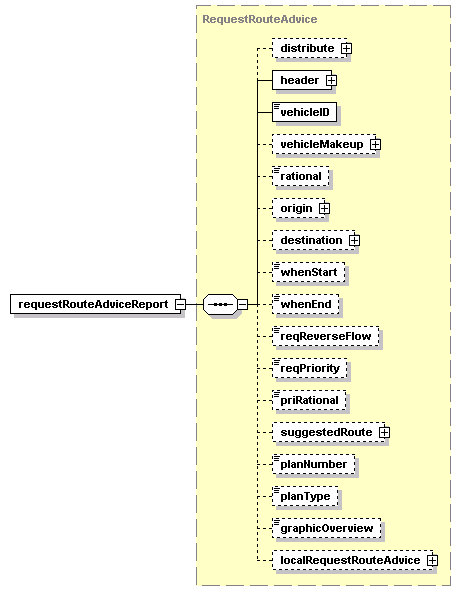

element IDX-Wrapper/requestRouteAdviceReports/requestRouteAdviceReport

diagram
type	RequestRouteAdvice
properties	isRef  0 content  complex
children	distribute header vehicleID vehicleMakeup rational origin destination whenStart whenEnd reqReverseFlow reqPriority priRational suggestedRoute planNumber planType graphicOverview localRequestRouteAdvice
source	<xs:element name="requestRouteAdviceReport" type="RequestRouteAdvice"/>

element IDX-Wrapper/requestTrafficControlPlans

diagram
properties	isRef  0 content  complex
children	requestTrafficControlPlan
source	<xs:element name="requestTrafficControlPlans">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestTrafficControlPlan" type="RequestTrafficControlPlan"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

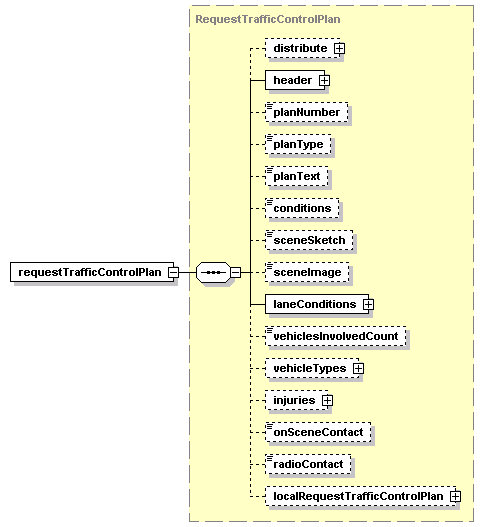

element IDX-Wrapper/requestTrafficControlPlans/requestTrafficControlPlan

diagram
type	RequestTrafficControlPlan
properties	isRef  0 content  complex
children	distribute header planNumber planType planText conditions sceneSketch sceneImage laneConditions vehiclesInvolvedCount vehicleTypes injuries onSceneContact radioContact localRequestTrafficControlPlan
source	<xs:element name="requestTrafficControlPlan" type="RequestTrafficControlPlan"/>

element IDX-Wrapper/requestWorkZoneDataReports

diagram
properties	isRef  0 content  complex
children	requestWorkZoneDataReport
source	<xs:element name="requestWorkZoneDataReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="requestWorkZoneDataReport" type="RequestWorkZoneData"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

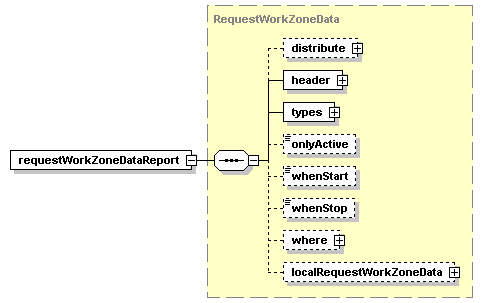

element IDX-Wrapper/requestWorkZoneDataReports/requestWorkZoneDataReport

diagram
type	RequestWorkZoneData
properties	isRef  0 content  complex
children	distribute header types onlyActive whenStart whenStop where localRequestWorkZoneData
source	<xs:element name="requestWorkZoneDataReport" type="RequestWorkZoneData"/>

element IDX-Wrapper/resourceAssignmentReports

diagram
properties	isRef  0 content  complex
children	resourceAssignmentReport
source	<xs:element name="resourceAssignmentReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="resourceAssignmentReport" type="ResourceAssignment"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

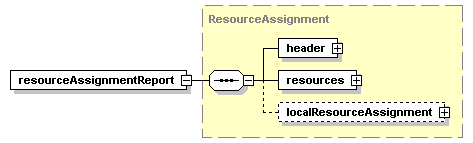

element IDX-Wrapper/resourceAssignmentReports/resourceAssignmentReport

diagram
type	ResourceAssignment
properties	isRef  0 content  complex
children	header resources localResourceAssignment
source	<xs:element name="resourceAssignmentReport" type="ResourceAssignment"/>

element IDX-Wrapper/responseReports

diagram
properties	isRef  0 content  complex
children	responseReport
source	<xs:element name="responseReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="responseReport" type="Response"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

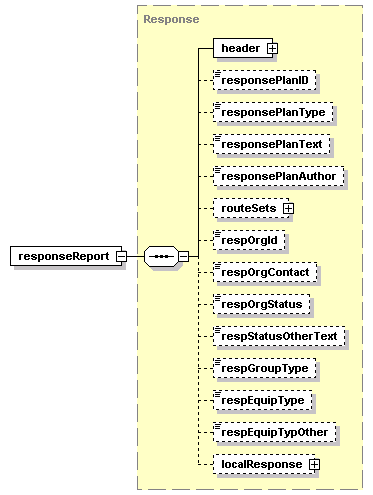

element IDX-Wrapper/responseReports/responseReport

diagram
type	Response
properties	isRef  0 content  complex
children	header responsePlanID responsePlanType responsePlanText responsePlanAuthor routeSets respOrgId respOrgContact respOrgStatus respStatusOtherText respGroupType respEquipType respEquipTypOther localResponse
source	<xs:element name="responseReport" type="Response"/>

element IDX-Wrapper/routeAdviceReports

diagram
properties	isRef  0 content  complex
children	routeAdviceReport
source	<xs:element name="routeAdviceReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="routeAdviceReport" type="RouteAdvice"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

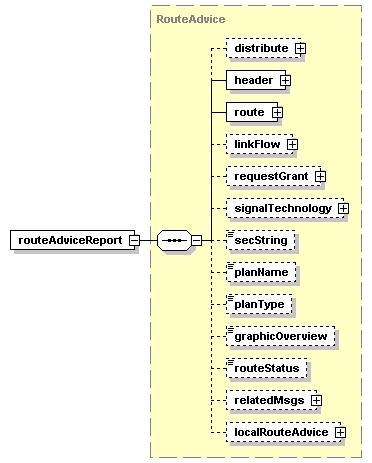

element IDX-Wrapper/routeAdviceReports/routeAdviceReport

diagram
type	RouteAdvice
properties	isRef  0 content  complex
children	distribute header route linkFlow requestGrant signalTechnology secString planName planType graphicOverview routeStatus relatedMsgs localRouteAdvice
source	<xs:element name="routeAdviceReport" type="RouteAdvice"/>

element IDX-Wrapper/sceneStagingReports

diagram
properties	isRef  0 content  complex
children	sceneStagingReport
source	<xs:element name="sceneStagingReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="sceneStagingReport" type="SceneStaging"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

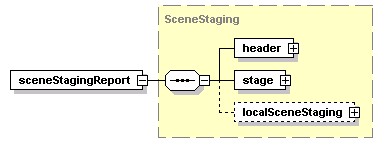

element IDX-Wrapper/sceneStagingReports/sceneStagingReport

diagram
type	SceneStaging
properties	isRef  0 content  complex
children	header stage localSceneStaging
source	<xs:element name="sceneStagingReport" type="SceneStaging"/>

element IDX-Wrapper/severityReports

diagram
properties	isRef  0 content  complex
children	severityReport
source	<xs:element name="severityReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="severityReport" type="Severity"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

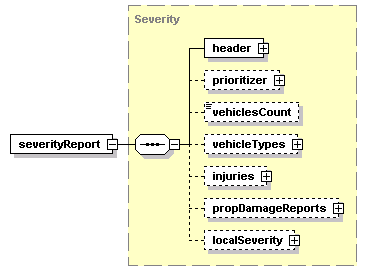

element IDX-Wrapper/severityReports/severityReport

diagram
type	Severity
properties	isRef  0 content  complex
children	header prioritizer vehiclesCount vehicleTypes injuries propDamageReports localSeverity
source	<xs:element name="severityReport" type="Severity"/>

element IDX-Wrapper/trackInvolvedPersonReports

diagram
properties	isRef  0 content  complex
children	trackInvolvedPersonReport
source	<xs:element name="trackInvolvedPersonReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="trackInvolvedPersonReport" type="TrackInvolvedPerson"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

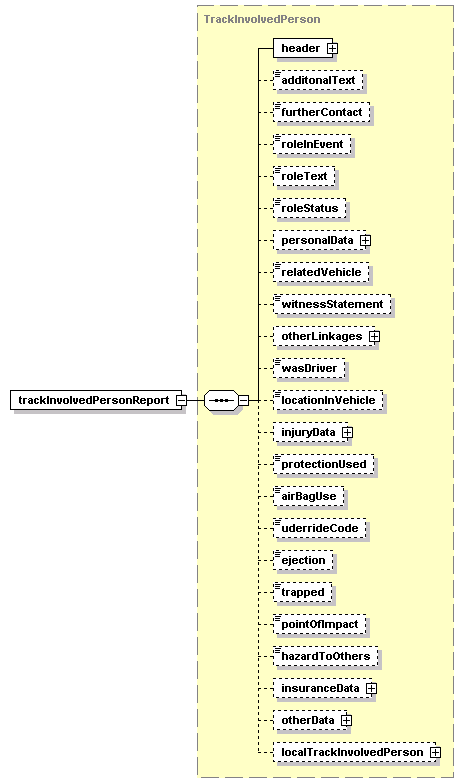

element IDX-Wrapper/trackInvolvedPersonReports/trackInvolvedPersonReport

diagram
type	TrackInvolvedPerson
properties	isRef  0 content  complex
children	header additonalText furtherContact roleInEvent roleText roleStatus personalData relatedVehicle witnessStatement otherLinkages wasDriver locationInVehicle injuryData protectionUsed airBagUse uderrideCode ejection trapped pointOfImpact hazardToOthers insuranceData otherData localTrackInvolvedPerson
source	<xs:element name="trackInvolvedPersonReport" type="TrackInvolvedPerson"/>

element IDX-Wrapper/trackInvolvedVehicleReports

diagram
properties	isRef  0 content  complex
children	trackInvolvedVehicleReport
source	<xs:element name="trackInvolvedVehicleReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="trackInvolvedVehicleReport" type="TrackInvolvedVehicle"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

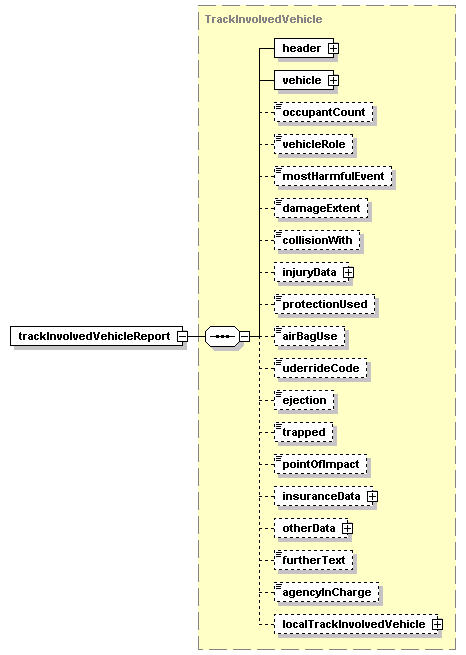

element IDX-Wrapper/trackInvolvedVehicleReports/trackInvolvedVehicleReport

diagram
type	TrackInvolvedVehicle
properties	isRef  0 content  complex
children	header vehicle occupantCount vehicleRole mostHarmfulEvent damageExtent collisionWith injuryData protectionUsed airBagUse uderrideCode ejection trapped pointOfImpact insuranceData otherData furtherText agencyInCharge localTrackInvolvedVehicle
source	<xs:element name="trackInvolvedVehicleReport" type="TrackInvolvedVehicle"/>

element IDX-Wrapper/trackResponsePersonnelReports

diagram
properties	isRef  0 content  complex
children	trackResponsePersonnelReport
source	<xs:element name="trackResponsePersonnelReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="trackResponsePersonnelReport" type="TrackResponsePersonnel"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

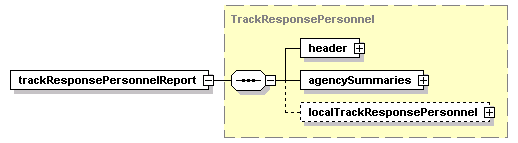

element IDX-Wrapper/trackResponsePersonnelReports/trackResponsePersonnelReport

diagram
type	TrackResponsePersonnel
properties	isRef  0 content  complex
children	header agencySummaries localTrackResponsePersonnel
source	<xs:element name="trackResponsePersonnelReport" type="TrackResponsePersonnel"/>

element IDX-Wrapper/trackSpecialCircumstancesReports

diagram
properties	isRef  0 content  complex
children	trackSpecialCircumstancesReport
source	<xs:element name="trackSpecialCircumstancesReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="trackSpecialCircumstancesReport" type="TrackSpecialCircumstances"/>       <!-- From 1512.Two -->     </xs:sequence>   </xs:complexType> </xs:element>

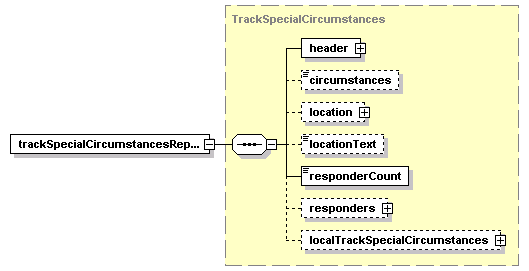

element IDX-Wrapper/trackSpecialCircumstancesReports/trackSpecialCircumstancesReport

diagram
type	TrackSpecialCircumstances
properties	isRef  0 content  complex
children	header circumstances location locationText responderCount responders localTrackSpecialCircumstances
source	<xs:element name="trackSpecialCircumstancesReport" type="TrackSpecialCircumstances"/>

element IDX-Wrapper/trafficControlPlanReports

diagram
properties	isRef  0 content  complex
children	trafficControlPlanReport
source	<xs:element name="trafficControlPlanReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="trafficControlPlanReport" type="TrafficControlPlan"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

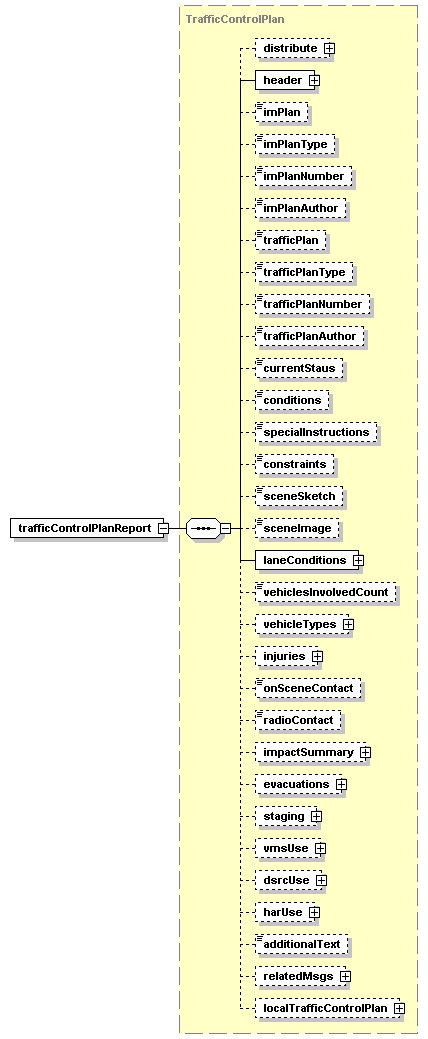

element IDX-Wrapper/trafficControlPlanReports/trafficControlPlanReport

diagram
type	TrafficControlPlan
properties	isRef  0 content  complex
children	distribute header imPlan imPlanType imPlanNumber imPlanAuthor trafficPlan trafficPlanType trafficPlanNumber trafficPlanAuthor currentStaus conditions specialInstructions constraints sceneSketch sceneImage laneConditions vehiclesInvolvedCount vehicleTypes injuries onSceneContact radioContact impactSummary evacuations staging vmsUse dsrcUse harUse additionalText relatedMsgs localTrafficControlPlan
source	<xs:element name="trafficControlPlanReport" type="TrafficControlPlan"/>

element IDX-Wrapper/transitEventSourceReports

diagram
properties	isRef  0 content  complex
children	transitEventSourceReport
source	<xs:element name="transitEventSourceReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="transitEventSourceReport" type="TransitEventSource"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

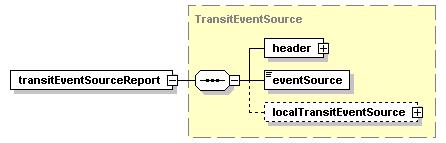

element IDX-Wrapper/transitEventSourceReports/transitEventSourceReport

diagram
type	TransitEventSource
properties	isRef  0 content  complex
children	header eventSource localTransitEventSource
source	<xs:element name="transitEventSourceReport" type="TransitEventSource"/>

element IDX-Wrapper/transitVehicleInvolvedReports

diagram
properties	isRef  0 content  complex
children	transitVehicleInvolvedReport
source	<xs:element name="transitVehicleInvolvedReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="transitVehicleInvolvedReport" type="TransitVehicleInvolved"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

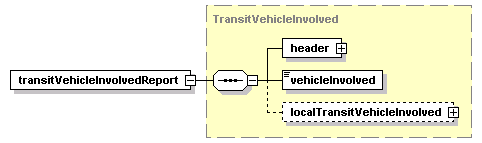

element IDX-Wrapper/transitVehicleInvolvedReports/transitVehicleInvolvedReport

diagram
type	TransitVehicleInvolved
properties	isRef  0 content  complex
children	header vehicleInvolved localTransitVehicleInvolved
source	<xs:element name="transitVehicleInvolvedReport" type="TransitVehicleInvolved"/>

element IDX-Wrapper/vehicleMAYDAYReports

diagram
properties	isRef  0 content  complex
children	vehicleMAYDAYReport
source	<xs:element name="vehicleMAYDAYReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="vehicleMAYDAYReport" type="VehMAYDAY"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

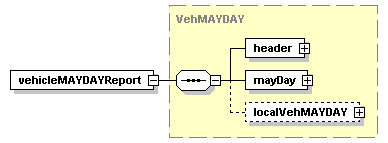

element IDX-Wrapper/vehicleMAYDAYReports/vehicleMAYDAYReport

diagram
type	VehMAYDAY
properties	isRef  0 content  complex
children	header mayDay localVehMAYDAY
source	<xs:element name="vehicleMAYDAYReport" type="VehMAYDAY"/>

element IDX-Wrapper/vehiclesDataReports

diagram
properties	isRef  0 content  complex
children	vehiclesDataReport
source	<xs:element name="vehiclesDataReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="vehiclesDataReport" type="VehicleData"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

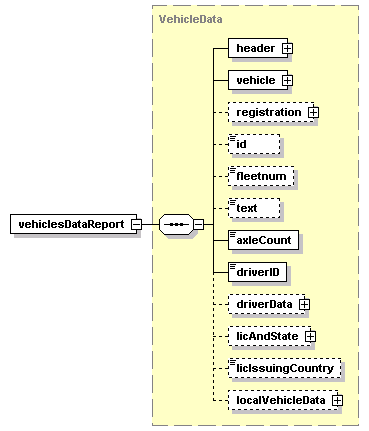

element IDX-Wrapper/vehiclesDataReports/vehiclesDataReport

diagram
type	VehicleData
properties	isRef  0 content  complex
children	header vehicle registration id fleetnum text axleCount driverID driverData licAndState licIssuingCountry localVehicleData
source	<xs:element name="vehiclesDataReport" type="VehicleData"/>

element IDX-Wrapper/watchForRequests

diagram
properties	isRef  0 content  complex
children	watchForRequest
source	<xs:element name="watchForRequests">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="watchForRequest" type="WatchFor"/>       <!-- From 1512.Two  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

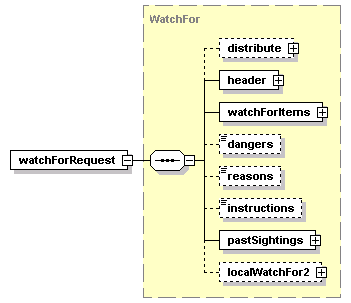

element IDX-Wrapper/watchForRequests/watchForRequest

diagram
type	WatchFor
properties	isRef  0 content  complex
children	distribute header watchForItems dangers reasons instructions pastSightings localWatchFor2
source	<xs:element name="watchForRequest" type="WatchFor"/>

element IDX-Wrapper/watchForResponseReports

diagram
properties	isRef  0 content  complex
children	watchForResponseReport
source	<xs:element name="watchForResponseReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="watchForResponseReport" type="WatchForResponse"/>       <!-- From 1512.Two  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

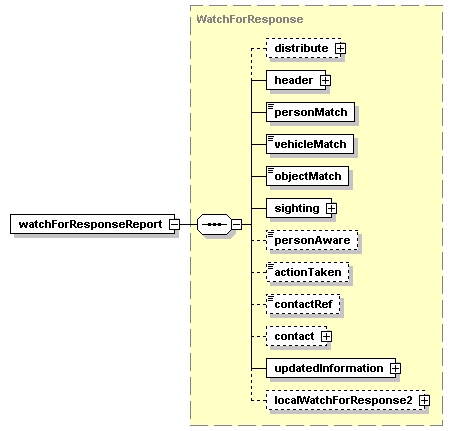

element IDX-Wrapper/watchForResponseReports/watchForResponseReport

diagram
type	WatchForResponse
properties	isRef  0 content  complex
children	distribute header personMatch vehicleMatch objectMatch sighting personAware actionTaken contactRef contact updatedInformation localWatchForResponse2
source	<xs:element name="watchForResponseReport" type="WatchForResponse"/>

element IDX-Wrapper/witnessStatementReports

diagram
properties	isRef  0 content  complex
children	witnessStatementReport
source	<xs:element name="witnessStatementReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="witnessStatementReport" type="WitnessStatement"/>       <!-- From 1512.Base -->     </xs:sequence>   </xs:complexType> </xs:element>

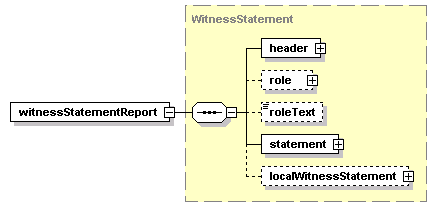

element IDX-Wrapper/witnessStatementReports/witnessStatementReport

diagram
type	WitnessStatement
properties	isRef  0 content  complex
children	header role roleText statement localWitnessStatement
source	<xs:element name="witnessStatementReport" type="WitnessStatement"/>

element IDX-Wrapper/workZoneDataReports

diagram
properties	isRef  0 content  complex
children	workZoneDataReport
source	<xs:element name="workZoneDataReports">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="64">       <xs:element name="workZoneDataReport" type="WorkZoneData"/>       <!-- From 1512.One  (and also a msg) -->     </xs:sequence>   </xs:complexType> </xs:element>

element IDX-Wrapper/workZoneDataReports/workZoneDataReport

diagram
type	WorkZoneData
properties	isRef  0 content  complex
children	distribute header eventID currentlyActive currentEventID description restrictions descriptiveText liveImage graphicOverview localWorkZoneData
source	<xs:element name="workZoneDataReport" type="WorkZoneData"/>

element IDX-Wrapper/localIDX-Wrapper

diagram
type	local:IDX-Wrapper
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localIDX-Wrapper" type="local:IDX-Wrapper" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
