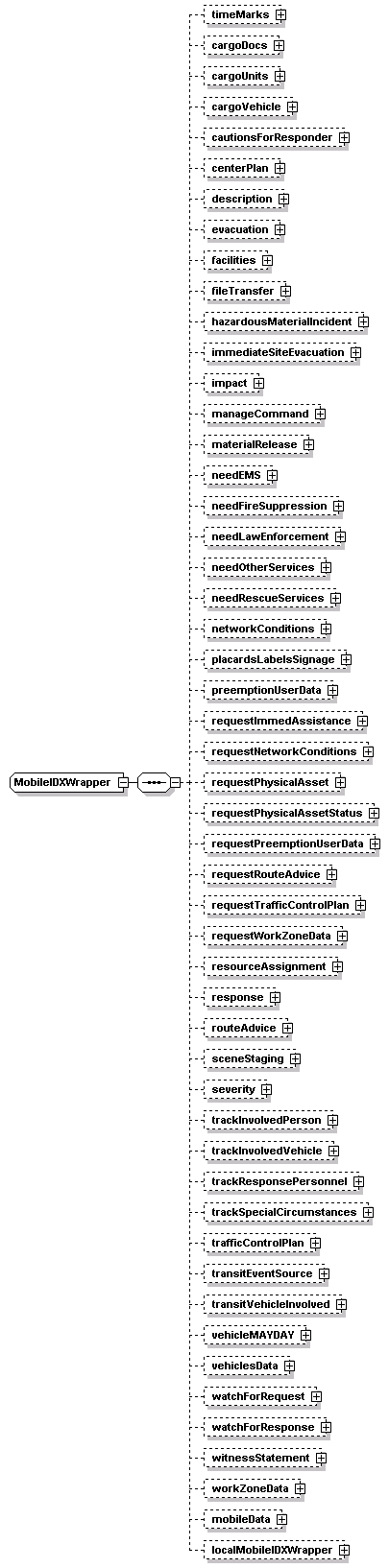

complexType MobileIDXWrapper

diagram
namespace	http://www.IM-Draft-03-00-44a
children	timeMarks cargoDocs cargoUnits cargoVehicle cautionsForResponder centerPlan description evacuation facilities fileTransfer hazardousMaterialIncident immediateSiteEvacuation impact manageCommand materialRelease needEMS needFireSuppression needLawEnforcement needOtherServices needRescueServices networkConditions placardsLabelsSignage preemptionUserData requestImmedAssistance requestNetworkConditions requestPhysicalAsset requestPhysicalAssetStatus requestPreemptionUserData requestRouteAdvice requestTrafficControlPlan requestWorkZoneData resourceAssignment response routeAdvice sceneStaging severity trackInvolvedPerson trackInvolvedVehicle trackResponsePersonnel trackSpecialCircumstances trafficControlPlan transitEventSource transitVehicleInvolved vehicleMAYDAY vehiclesData watchForRequest watchForResponse witnessStatement workZoneData mobileData localMobileIDXWrapper
used by	element  MobileMessage/idxSubParts
source	<xs:complexType name="MobileIDXWrapper">   <xs:sequence>     <xs:element name="timeMarks" type="TimeMarks" minOccurs="0"/>     <!-- a collecton of event times -->     <xs:element name="cargoDocs" type="CargoDocs" minOccurs="0"/>     <!-- From 1512.Three -->     <xs:element name="cargoUnits" type="CargoUnits" minOccurs="0"/>     <!-- From 1512.Three -->     <xs:element name="cargoVehicle" type="CargoVehicle" minOccurs="0"/>     <!-- From 1512.Three -->     <xs:element name="cautionsForResponder" type="CautionsForResponders" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="centerPlan" type="CenterPlans" minOccurs="0"/>     <!-- From 1512.Base  (and also a msg) -->     <xs:element name="description" type="Description" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="evacuation" type="Evacuation" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="facilities" type="Facilities" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="fileTransfer" type="FileTransfer" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="hazardousMaterialIncident" type="HazardousMaterialIncidentReport" minOccurs="0"/>     <!-- From 1512.Three -->     <xs:element name="immediateSiteEvacuation" type="ImmediateSiteEvacuation" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="impact" type="Impact" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="manageCommand" type="ManageCommandStructure" minOccurs="0"/>     <!-- From 1512.Two  (and also a msg) -->     <xs:element name="materialRelease" type="MaterialRelease" minOccurs="0"/>     <!-- From 1512.Three -->     <xs:element name="needEMS" type="NeedEMS" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="needFireSuppression" type="NeedFireSuppression" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="needLawEnforcement" type="NeedLawEnforcement" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="needOtherServices" type="NeedOtherServices" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="needRescueServices" type="NeedRescueServices" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="networkConditions" type="NetworkConditions" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="placardsLabelsSignage" type="PlacardsLabelsSignage" minOccurs="0"/>     <!-- From 1512.Three -->     <xs:element name="preemptionUserData" type="PreemptionUserData" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestImmedAssistance" type="RequestImmediateAssistance" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="requestNetworkConditions" type="RequestNetworkConditions" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestPhysicalAsset" type="RequestPhysicalAsset" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestPhysicalAssetStatus" type="RequestPhysicalAssetStatus" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestPreemptionUserData" type="RequestPreemptionUserData" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestRouteAdvice" type="RequestRouteAdvice" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestTrafficControlPlan" type="RequestTrafficControlPlan" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="requestWorkZoneData" type="RequestWorkZoneData" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="resourceAssignment" type="ResourceAssignment" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="response" type="Response" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="routeAdvice" type="RouteAdvice" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="sceneStaging" type="SceneStaging" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="severity" type="Severity" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="trackInvolvedPerson" type="TrackInvolvedPerson" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="trackInvolvedVehicle" type="TrackInvolvedVehicle" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="trackResponsePersonnel" type="TrackResponsePersonnel" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="trackSpecialCircumstances" type="TrackSpecialCircumstances" minOccurs="0"/>     <!-- From 1512.Two -->     <xs:element name="trafficControlPlan" type="TrafficControlPlan" minOccurs="0"/>     <!-- From 1512.One  (and also a msg) -->     <xs:element name="transitEventSource" type="TransitEventSource" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="transitVehicleInvolved" type="TransitVehicleInvolved" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="vehicleMAYDAY" type="VehMAYDAY" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="vehiclesData" type="VehicleData" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="watchForRequest" type="WatchFor" minOccurs="0"/>     <!-- From 1512.Two  (and also a msg) -->     <xs:element name="watchForResponse" type="WatchForResponse" minOccurs="0"/>     <!-- From 1512.Two  (and also a msg) -->     <xs:element name="witnessStatement" type="WitnessStatement" minOccurs="0"/>     <!-- From 1512.Base -->     <xs:element name="workZoneData" type="WorkZoneData" minOccurs="0"/>     <!-- From 1512.One  (and also a msg)          Added to support mobile needs -->     <xs:element name="mobileData" type="MobileData" minOccurs="0"/>     <!-- data about the device or its user -->     <xs:element name="localMobileIDXWrapper" type="local:MobileIDXWrapper" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element MobileIDXWrapper/timeMarks

diagram
type	TimeMarks
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timeMark
source	<xs:element name="timeMarks" type="TimeMarks" minOccurs="0"/>

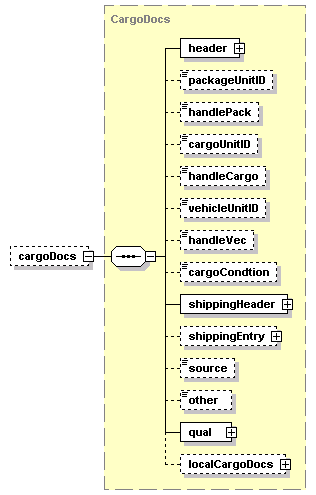

element MobileIDXWrapper/cargoDocs

diagram
type	CargoDocs
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header packageUnitID handlePack cargoUnitID handleCargo vehicleUnitID handleVec cargoCondtion shippingHeader shippingEntry source other qual localCargoDocs
source	<xs:element name="cargoDocs" type="CargoDocs" minOccurs="0"/>

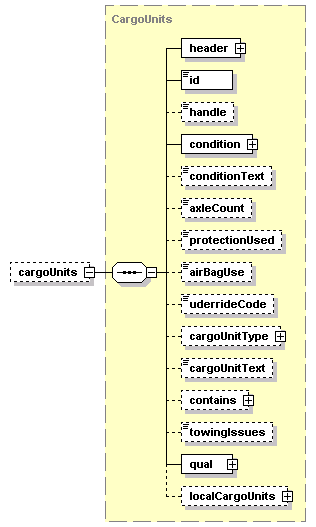

element MobileIDXWrapper/cargoUnits

diagram
type	CargoUnits
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header id handle condition conditionText axleCount protectionUsed airBagUse uderrideCode cargoUnitType cargoUnitText contains towingIssues qual localCargoUnits
source	<xs:element name="cargoUnits" type="CargoUnits" minOccurs="0"/>

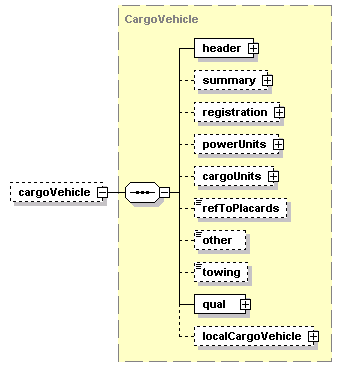

element MobileIDXWrapper/cargoVehicle

diagram
type	CargoVehicle
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header summary registration powerUnits cargoUnits refToPlacards other towing qual localCargoVehicle
source	<xs:element name="cargoVehicle" type="CargoVehicle" minOccurs="0"/>

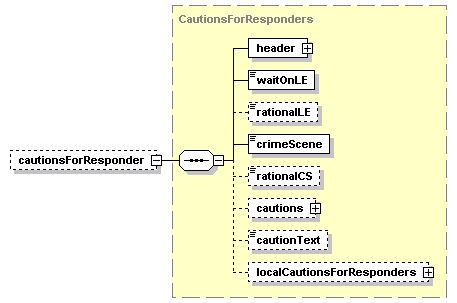

element MobileIDXWrapper/cautionsForResponder

diagram
type	CautionsForResponders
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header waitOnLE rationalLE crimeScene rationalCS cautions cautionText localCautionsForResponders
source	<xs:element name="cautionsForResponder" type="CautionsForResponders" minOccurs="0"/>

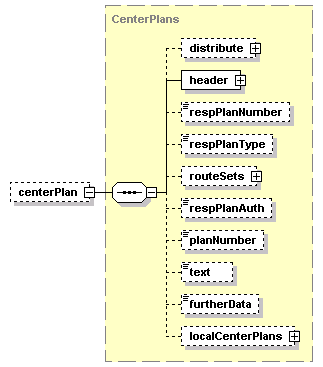

element MobileIDXWrapper/centerPlan

diagram
type	CenterPlans
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header respPlanNumber respPlanType routeSets respPlanAuth planNumber text furtherData localCenterPlans
source	<xs:element name="centerPlan" type="CenterPlans" minOccurs="0"/>

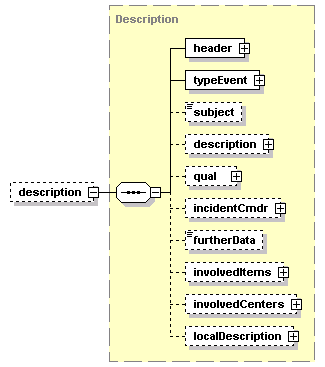

element MobileIDXWrapper/description

diagram
type	Description
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header typeEvent subject description qual incidentCmdr furtherData involvedItems involvedCenters localDescription
source	<xs:element name="description" type="Description" minOccurs="0"/>

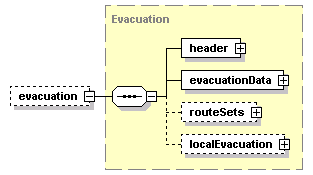

element MobileIDXWrapper/evacuation

diagram
type	Evacuation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header evacuationData routeSets localEvacuation
source	<xs:element name="evacuation" type="Evacuation" minOccurs="0"/>

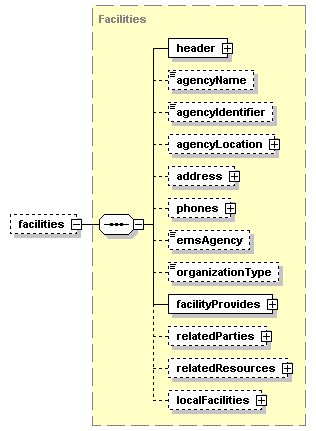

element MobileIDXWrapper/facilities

diagram
type	Facilities
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header agencyName agencyIdentifier agencyLocation address phones emsAgency organizationType facilityProvides relatedParties relatedResources localFacilities
source	<xs:element name="facilities" type="Facilities" minOccurs="0"/>

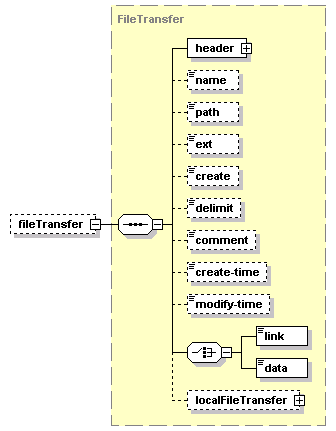

element MobileIDXWrapper/fileTransfer

diagram
type	FileTransfer
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header name path ext create delimit comment create-time modify-time link data localFileTransfer
source	<xs:element name="fileTransfer" type="FileTransfer" minOccurs="0"/>

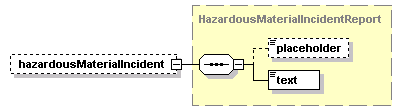

element MobileIDXWrapper/hazardousMaterialIncident

diagram
type	HazardousMaterialIncidentReport
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	placeholder text
source	<xs:element name="hazardousMaterialIncident" type="HazardousMaterialIncidentReport" minOccurs="0"/>

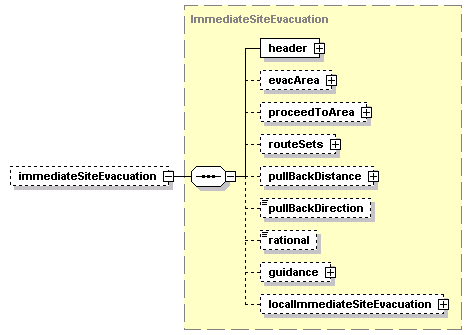

element MobileIDXWrapper/immediateSiteEvacuation

diagram
type	ImmediateSiteEvacuation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header evacArea proceedToArea routeSets pullBackDistance pullBackDirection rational guidance localImmediateSiteEvacuation
source	<xs:element name="immediateSiteEvacuation" type="ImmediateSiteEvacuation" minOccurs="0"/>

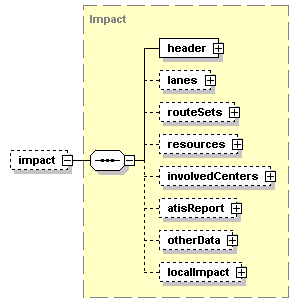

element MobileIDXWrapper/impact

diagram
type	Impact
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header lanes routeSets resources involvedCenters atisReport otherData localImpact
source	<xs:element name="impact" type="Impact" minOccurs="0"/>

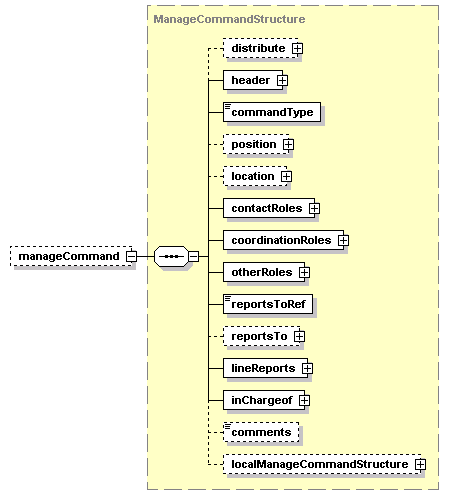

element MobileIDXWrapper/manageCommand

diagram
type	ManageCommandStructure
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header commandType position location contactRoles coordinationRoles otherRoles reportsToRef reportsTo lineReports inChargeof comments localManageCommandStructure
source	<xs:element name="manageCommand" type="ManageCommandStructure" minOccurs="0"/>

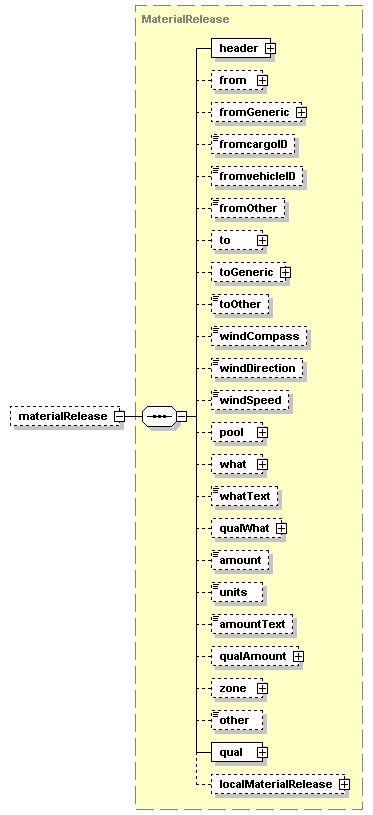

element MobileIDXWrapper/materialRelease

diagram
type	MaterialRelease
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header from fromGeneric fromcargoID fromvehicleID fromOther to toGeneric toOther windCompass windDirection windSpeed pool what whatText qualWhat amount units amountText qualAmount zone other qual localMaterialRelease
source	<xs:element name="materialRelease" type="MaterialRelease" minOccurs="0"/>

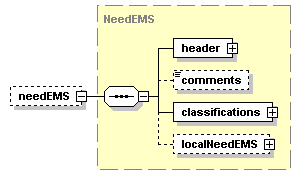

element MobileIDXWrapper/needEMS

diagram
type	NeedEMS
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header comments classifications localNeedEMS
source	<xs:element name="needEMS" type="NeedEMS" minOccurs="0"/>

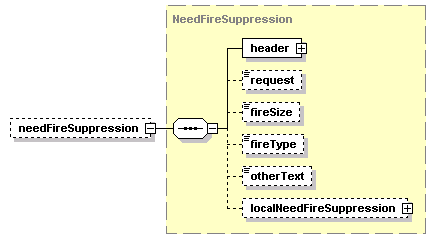

element MobileIDXWrapper/needFireSuppression

diagram
type	NeedFireSuppression
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header request fireSize fireType otherText localNeedFireSuppression
source	<xs:element name="needFireSuppression" type="NeedFireSuppression" minOccurs="0"/>

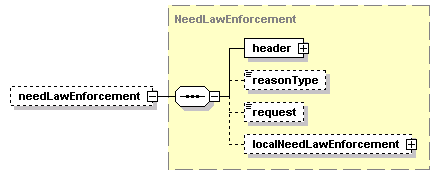

element MobileIDXWrapper/needLawEnforcement

diagram
type	NeedLawEnforcement
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header reasonType request localNeedLawEnforcement
source	<xs:element name="needLawEnforcement" type="NeedLawEnforcement" minOccurs="0"/>

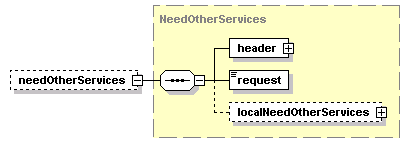

element MobileIDXWrapper/needOtherServices

diagram
type	NeedOtherServices
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header request localNeedOtherServices
source	<xs:element name="needOtherServices" type="NeedOtherServices" minOccurs="0"/>

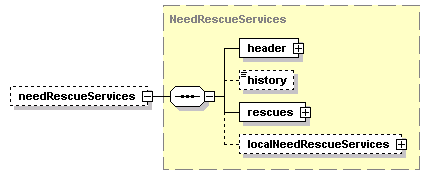

element MobileIDXWrapper/needRescueServices

diagram
type	NeedRescueServices
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header history rescues localNeedRescueServices
source	<xs:element name="needRescueServices" type="NeedRescueServices" minOccurs="0"/>

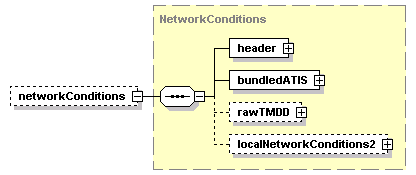

element MobileIDXWrapper/networkConditions

diagram
type	NetworkConditions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header bundledATIS rawTMDD localNetworkConditions2
source	<xs:element name="networkConditions" type="NetworkConditions" minOccurs="0"/>

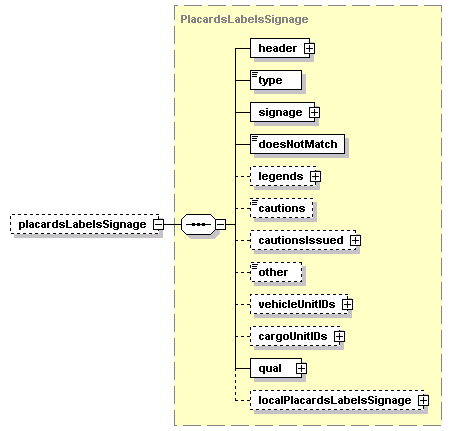

element MobileIDXWrapper/placardsLabelsSignage

diagram
type	PlacardsLabelsSignage
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header type signage doesNotMatch legends cautions cautionsIssued other vehicleUnitIDs cargoUnitIDs qual localPlacardsLabelsSignage
source	<xs:element name="placardsLabelsSignage" type="PlacardsLabelsSignage" minOccurs="0"/>

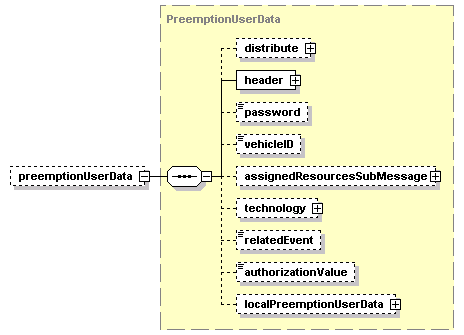

element MobileIDXWrapper/preemptionUserData

diagram
type	PreemptionUserData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header password vehicleID assignedResourcesSubMessage technology relatedEvent authorizationValue localPreemptionUserData
source	<xs:element name="preemptionUserData" type="PreemptionUserData" minOccurs="0"/>

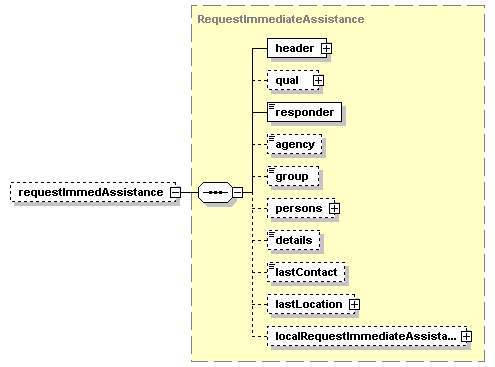

element MobileIDXWrapper/requestImmedAssistance

diagram
type	RequestImmediateAssistance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header qual responder agency group persons details lastContact lastLocation localRequestImmediateAssistance
source	<xs:element name="requestImmedAssistance" type="RequestImmediateAssistance" minOccurs="0"/>

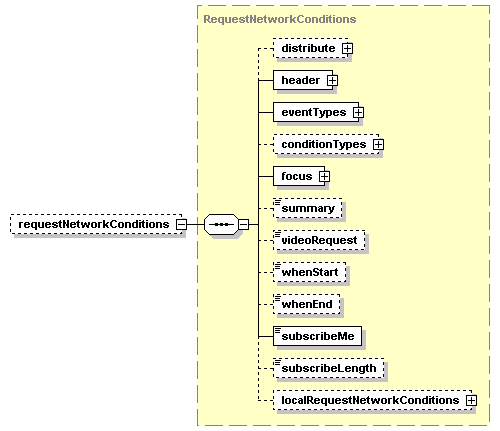

element MobileIDXWrapper/requestNetworkConditions

diagram
type	RequestNetworkConditions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header eventTypes conditionTypes focus summary videoRequest whenStart whenEnd subscribeMe subscribeLength localRequestNetworkConditions
source	<xs:element name="requestNetworkConditions" type="RequestNetworkConditions" minOccurs="0"/>

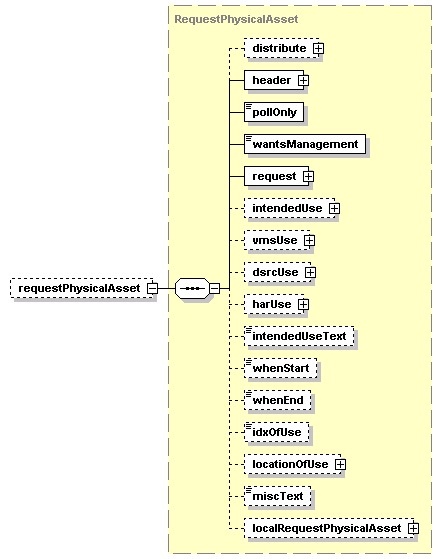

element MobileIDXWrapper/requestPhysicalAsset

diagram
type	RequestPhysicalAsset
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header pollOnly wantsManagement request intendedUse vmsUse dsrcUse harUse intendedUseText whenStart whenEnd idxOfUse locationOfUse miscText localRequestPhysicalAsset
source	<xs:element name="requestPhysicalAsset" type="RequestPhysicalAsset" minOccurs="0"/>

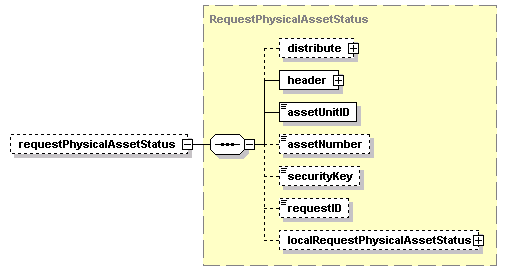

element MobileIDXWrapper/requestPhysicalAssetStatus

diagram
type	RequestPhysicalAssetStatus
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header assetUnitID assetNumber securityKey requestID localRequestPhysicalAssetStatus
source	<xs:element name="requestPhysicalAssetStatus" type="RequestPhysicalAssetStatus" minOccurs="0"/>

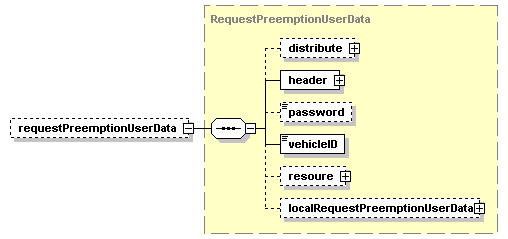

element MobileIDXWrapper/requestPreemptionUserData

diagram
type	RequestPreemptionUserData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header password vehicleID resoure localRequestPreemptionUserData
source	<xs:element name="requestPreemptionUserData" type="RequestPreemptionUserData" minOccurs="0"/>

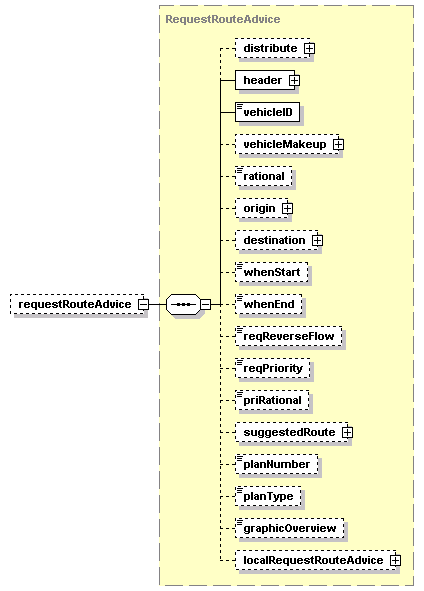

element MobileIDXWrapper/requestRouteAdvice

diagram
type	RequestRouteAdvice
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header vehicleID vehicleMakeup rational origin destination whenStart whenEnd reqReverseFlow reqPriority priRational suggestedRoute planNumber planType graphicOverview localRequestRouteAdvice
source	<xs:element name="requestRouteAdvice" type="RequestRouteAdvice" minOccurs="0"/>

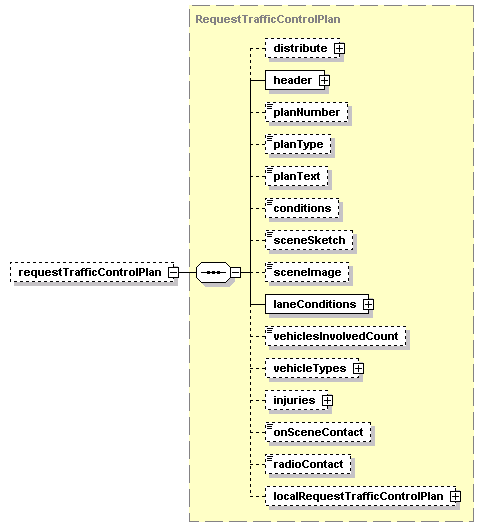

element MobileIDXWrapper/requestTrafficControlPlan

diagram
type	RequestTrafficControlPlan
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header planNumber planType planText conditions sceneSketch sceneImage laneConditions vehiclesInvolvedCount vehicleTypes injuries onSceneContact radioContact localRequestTrafficControlPlan
source	<xs:element name="requestTrafficControlPlan" type="RequestTrafficControlPlan" minOccurs="0"/>

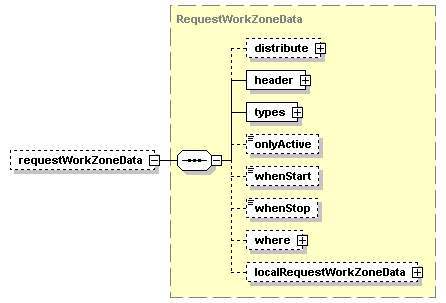

element MobileIDXWrapper/requestWorkZoneData

diagram
type	RequestWorkZoneData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header types onlyActive whenStart whenStop where localRequestWorkZoneData
source	<xs:element name="requestWorkZoneData" type="RequestWorkZoneData" minOccurs="0"/>

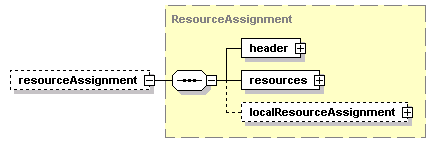

element MobileIDXWrapper/resourceAssignment

diagram
type	ResourceAssignment
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header resources localResourceAssignment
source	<xs:element name="resourceAssignment" type="ResourceAssignment" minOccurs="0"/>

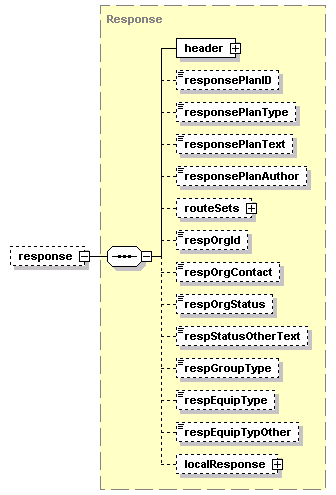

element MobileIDXWrapper/response

diagram
type	Response
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header responsePlanID responsePlanType responsePlanText responsePlanAuthor routeSets respOrgId respOrgContact respOrgStatus respStatusOtherText respGroupType respEquipType respEquipTypOther localResponse
source	<xs:element name="response" type="Response" minOccurs="0"/>

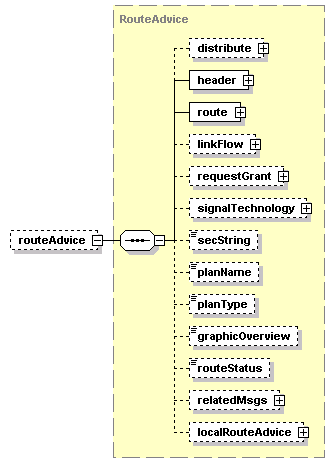

element MobileIDXWrapper/routeAdvice

diagram
type	RouteAdvice
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header route linkFlow requestGrant signalTechnology secString planName planType graphicOverview routeStatus relatedMsgs localRouteAdvice
source	<xs:element name="routeAdvice" type="RouteAdvice" minOccurs="0"/>

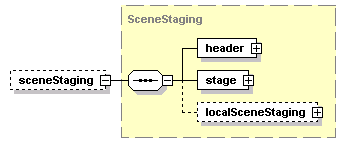

element MobileIDXWrapper/sceneStaging

diagram
type	SceneStaging
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header stage localSceneStaging
source	<xs:element name="sceneStaging" type="SceneStaging" minOccurs="0"/>

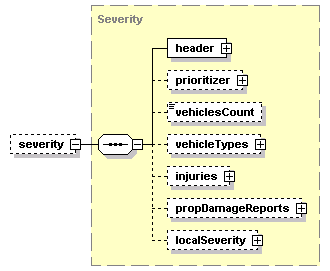

element MobileIDXWrapper/severity

diagram
type	Severity
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header prioritizer vehiclesCount vehicleTypes injuries propDamageReports localSeverity
source	<xs:element name="severity" type="Severity" minOccurs="0"/>

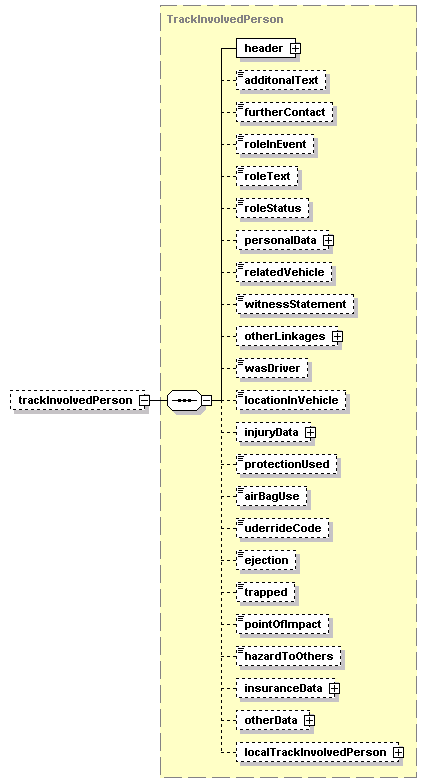

element MobileIDXWrapper/trackInvolvedPerson

diagram
type	TrackInvolvedPerson
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header additonalText furtherContact roleInEvent roleText roleStatus personalData relatedVehicle witnessStatement otherLinkages wasDriver locationInVehicle injuryData protectionUsed airBagUse uderrideCode ejection trapped pointOfImpact hazardToOthers insuranceData otherData localTrackInvolvedPerson
source	<xs:element name="trackInvolvedPerson" type="TrackInvolvedPerson" minOccurs="0"/>

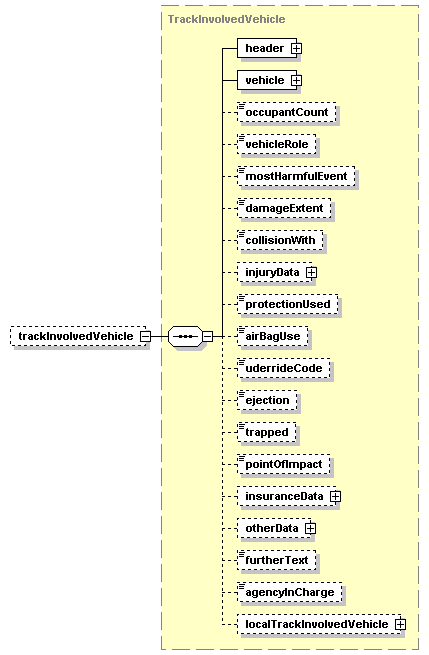

element MobileIDXWrapper/trackInvolvedVehicle

diagram
type	TrackInvolvedVehicle
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header vehicle occupantCount vehicleRole mostHarmfulEvent damageExtent collisionWith injuryData protectionUsed airBagUse uderrideCode ejection trapped pointOfImpact insuranceData otherData furtherText agencyInCharge localTrackInvolvedVehicle
source	<xs:element name="trackInvolvedVehicle" type="TrackInvolvedVehicle" minOccurs="0"/>

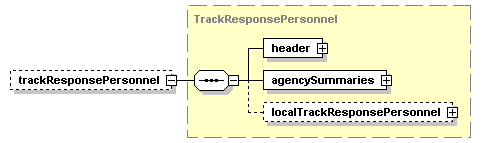

element MobileIDXWrapper/trackResponsePersonnel

diagram
type	TrackResponsePersonnel
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header agencySummaries localTrackResponsePersonnel
source	<xs:element name="trackResponsePersonnel" type="TrackResponsePersonnel" minOccurs="0"/>

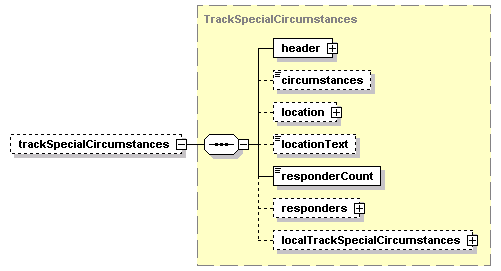

element MobileIDXWrapper/trackSpecialCircumstances

diagram
type	TrackSpecialCircumstances
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header circumstances location locationText responderCount responders localTrackSpecialCircumstances
source	<xs:element name="trackSpecialCircumstances" type="TrackSpecialCircumstances" minOccurs="0"/>

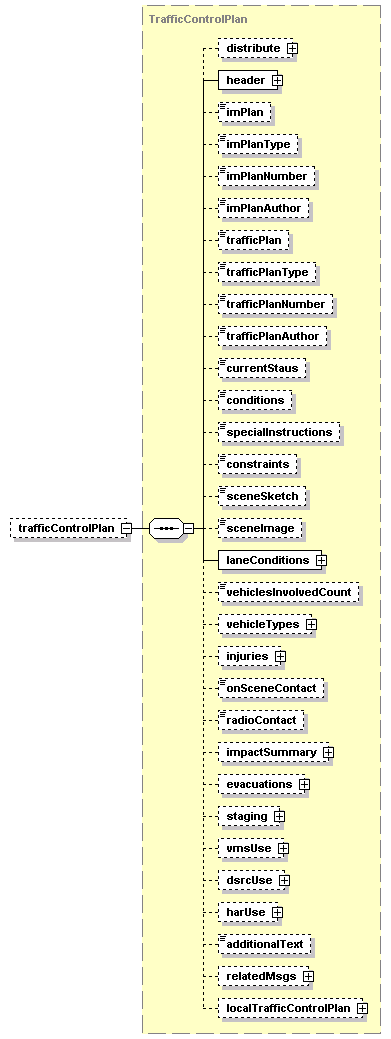

element MobileIDXWrapper/trafficControlPlan

diagram
type	TrafficControlPlan
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header imPlan imPlanType imPlanNumber imPlanAuthor trafficPlan trafficPlanType trafficPlanNumber trafficPlanAuthor currentStaus conditions specialInstructions constraints sceneSketch sceneImage laneConditions vehiclesInvolvedCount vehicleTypes injuries onSceneContact radioContact impactSummary evacuations staging vmsUse dsrcUse harUse additionalText relatedMsgs localTrafficControlPlan
source	<xs:element name="trafficControlPlan" type="TrafficControlPlan" minOccurs="0"/>

element MobileIDXWrapper/transitEventSource

diagram
type	TransitEventSource
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header eventSource localTransitEventSource
source	<xs:element name="transitEventSource" type="TransitEventSource" minOccurs="0"/>

element MobileIDXWrapper/transitVehicleInvolved

diagram
type	TransitVehicleInvolved
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header vehicleInvolved localTransitVehicleInvolved
source	<xs:element name="transitVehicleInvolved" type="TransitVehicleInvolved" minOccurs="0"/>

element MobileIDXWrapper/vehicleMAYDAY

diagram
type	VehMAYDAY
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header mayDay localVehMAYDAY
source	<xs:element name="vehicleMAYDAY" type="VehMAYDAY" minOccurs="0"/>

element MobileIDXWrapper/vehiclesData

diagram
type	VehicleData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header vehicle registration id fleetnum text axleCount driverID driverData licAndState licIssuingCountry localVehicleData
source	<xs:element name="vehiclesData" type="VehicleData" minOccurs="0"/>

element MobileIDXWrapper/watchForRequest

diagram
type	WatchFor
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header watchForItems dangers reasons instructions pastSightings localWatchFor2
source	<xs:element name="watchForRequest" type="WatchFor" minOccurs="0"/>

element MobileIDXWrapper/watchForResponse

diagram
type	WatchForResponse
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header personMatch vehicleMatch objectMatch sighting personAware actionTaken contactRef contact updatedInformation localWatchForResponse2
source	<xs:element name="watchForResponse" type="WatchForResponse" minOccurs="0"/>

element MobileIDXWrapper/witnessStatement

diagram
type	WitnessStatement
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header role roleText statement localWitnessStatement
source	<xs:element name="witnessStatement" type="WitnessStatement" minOccurs="0"/>

element MobileIDXWrapper/workZoneData

diagram
type	WorkZoneData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	distribute header eventID currentlyActive currentEventID description restrictions descriptiveText liveImage graphicOverview localWorkZoneData
source	<xs:element name="workZoneData" type="WorkZoneData" minOccurs="0"/>

element MobileIDXWrapper/mobileData

diagram
type	MobileData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	status consumablesReport requestForCautions routeRequest positionReport pastPositions deviceCapabilities emergencyMessageToCenter updateTime localMobileData
source	<xs:element name="mobileData" type="MobileData" minOccurs="0"/>

element MobileIDXWrapper/localMobileIDXWrapper

diagram
type	local:MobileIDXWrapper
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localMobileIDXWrapper" type="local:MobileIDXWrapper" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
