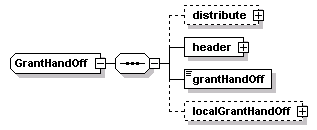

complexType GrantHandOff
diagram
namespace http://www.IM-Draft-03-00-44a
children distribute header grantHandOff localGrantHandOff
used by
elements grantHandOff IMWrapper/grantHandOff
source <xs:complexType name="GrantHandOff">

<xs:sequence>

<xs:element name="distribute" type="Distribution" minOccurs="0"/>

<xs:element name="header" type="Header"/>

<!-- if an inner element is not present then
         the header content of the message which
         carries this DF shall be applied to the
         context of this message. The header has the
         data creator,  time stamps,  location,
         and what to do when the message becomes
         old  (how to get a fresh one)  and the
         reference ID of this message or submessage --
>

<xs:element name="grantHandOff">

<xs:simpleType>

<xs:restriction base="FreeText">

<xs:minLength value="1"/>

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

<!-- if we require anything beyond a &quot;yes&quot; here,  put in text -->

<xs:element name="localGrantHandOff" type="local:GrantHandOff" minOccurs="0"/>

</xs:sequence>
</xs:complexType>

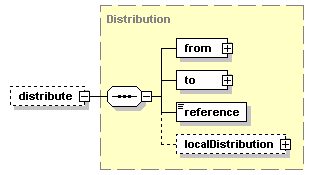

element GrantHandOff/distribute
diagram
type Distribution
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children from to reference localDistribution
source <xs:element name="distribute" type="Distribution" minOccurs="0"/>

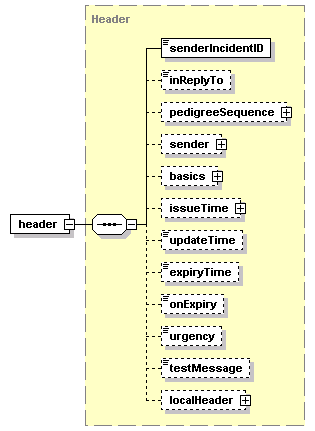

element GrantHandOff/header
diagram
type Header
properties
isRef 0
content complex
children senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source <xs:element name="header" type="Header"/>

element GrantHandOff/grantHandOff
diagram
type restriction of FreeText
properties
isRef 0
content simple
facets
minLength 1
maxLength 255
source <xs:element name="grantHandOff">

<xs:simpleType>

<xs:restriction base="FreeText">

<xs:minLength value="1"/>

<xs:maxLength value="255"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element GrantHandOff/localGrantHandOff
diagram
type local:GrantHandOff
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localGrantHandOff" type="local:GrantHandOff" minOccurs="0"/>
