complexType DifferentialGPSCorrections

diagram
namespace	http://www.IM-Draft-03-00-44a
children	differentialGPSCorrection
used by	elements  differentialGPSCorrections IMWrapper/differentialGPSCorrections
source	<xs:complexType name="DifferentialGPSCorrections">   <xs:sequence maxOccurs="128">     <xs:element name="differentialGPSCorrection">       <xs:complexType>         <xs:sequence>           <xs:element name="distribute" type="Distribution" minOccurs="0"/>           <xs:element name="header" type="Header"/>           <!-- if an inner element is not present then                   the header content of the message which                   carries this DF shall be applied to the                   context of this message. The header has the                   data creator,  time stamps,  location,                   and what to do when the message becomes                   old  (how to get a fresh one)  and the                   reference ID of this message or submessage                   note that most of the above header information is of no value in this                   type of message and will typically be omitted in use -->           <xs:element name="msgType">             <xs:simpleType>               <xs:restriction base="xs:unsignedByte">                 <xs:maxInclusive value="64"/>               </xs:restriction>             </xs:simpleType>           </xs:element>           <xs:element name="msg" type="RTCM-MsgDef"/>           <xs:element name="localDifferentialGPSCorrections" type="local:DifferentialGPSCorrections" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

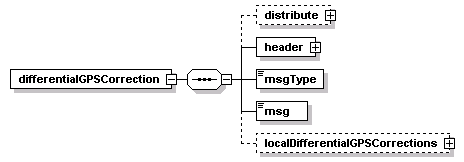

element DifferentialGPSCorrections/differentialGPSCorrection

diagram
properties	isRef  0 content  complex
children	distribute header msgType msg localDifferentialGPSCorrections
source	<xs:element name="differentialGPSCorrection">   <xs:complexType>     <xs:sequence>       <xs:element name="distribute" type="Distribution" minOccurs="0"/>       <xs:element name="header" type="Header"/>       <!-- if an inner element is not present then                   the header content of the message which                   carries this DF shall be applied to the                   context of this message. The header has the                   data creator,  time stamps,  location,                   and what to do when the message becomes                   old  (how to get a fresh one)  and the                   reference ID of this message or submessage                   note that most of the above header information is of no value in this                   type of message and will typically be omitted in use -->       <xs:element name="msgType">         <xs:simpleType>           <xs:restriction base="xs:unsignedByte">             <xs:maxInclusive value="64"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="msg" type="RTCM-MsgDef"/>       <xs:element name="localDifferentialGPSCorrections" type="local:DifferentialGPSCorrections" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

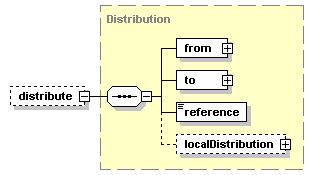

element DifferentialGPSCorrections/differentialGPSCorrection/distribute

diagram
type	Distribution
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	from to reference localDistribution
source	<xs:element name="distribute" type="Distribution" minOccurs="0"/>

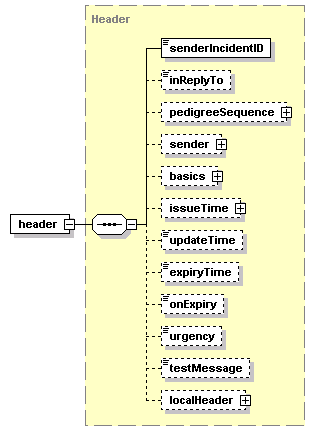

element DifferentialGPSCorrections/differentialGPSCorrection/header

diagram
type	Header
properties	isRef  0 content  complex
children	senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source	<xs:element name="header" type="Header"/>

element DifferentialGPSCorrections/differentialGPSCorrection/msgType

diagram
type	restriction of xs:unsignedByte
properties	isRef  0 content  simple
facets	maxInclusive  64
source	<xs:element name="msgType">   <xs:simpleType>     <xs:restriction base="xs:unsignedByte">       <xs:maxInclusive value="64"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DifferentialGPSCorrections/differentialGPSCorrection/msg

diagram
type	RTCM-MsgDef
properties	isRef  0 content  simple
facets	minLength  1 maxLength  1024
source	<xs:element name="msg" type="RTCM-MsgDef"/>

element DifferentialGPSCorrections/differentialGPSCorrection/localDifferentialGPSCorrections

diagram
type	local:DifferentialGPSCorrections
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localDifferentialGPSCorrections" type="local:DifferentialGPSCorrections" minOccurs="0"/>
