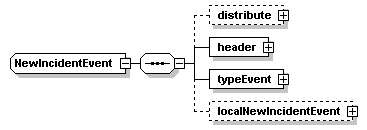

complexType NewIncidentEvent

diagram
namespace	http://www.IM-Draft-03-00-44a
children	distribute header typeEvent localNewIncidentEvent
used by	elements  newIncidentEvent IMWrapper/newIncidentEvent
source	<xs:complexType name="NewIncidentEvent">   <xs:sequence>     <xs:element name="distribute" type="Distribution" minOccurs="0"/>     <xs:element name="header" type="Header"/>     <!-- if an inner element is not present then          the header content of the message which          carries this DF shall be applied to the          context of this message. The header has the          data creator,  time stamps,  location,          and what to do when the message becomes          old  (how to get a fresh one)  and the          reference ID of this message or submessage -->     <xs:element name="typeEvent" type="itis:ITISEventType"/>     <!-- a catagory and an item from that catagory          Uses the same basic types as ITIS/ATIS/TMDD -->     <xs:element name="localNewIncidentEvent" type="local:NewIncidentEvent" minOccurs="0"/>   </xs:sequence> </xs:complexType>

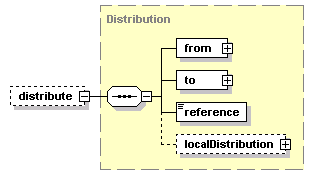

element NewIncidentEvent/distribute

diagram
type	Distribution
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	from to reference localDistribution
source	<xs:element name="distribute" type="Distribution" minOccurs="0"/>

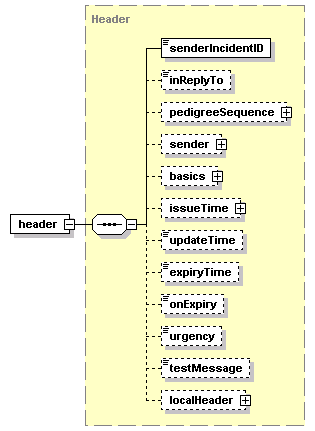

element NewIncidentEvent/header

diagram
type	Header
properties	isRef  0 content  complex
children	senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source	<xs:element name="header" type="Header"/>

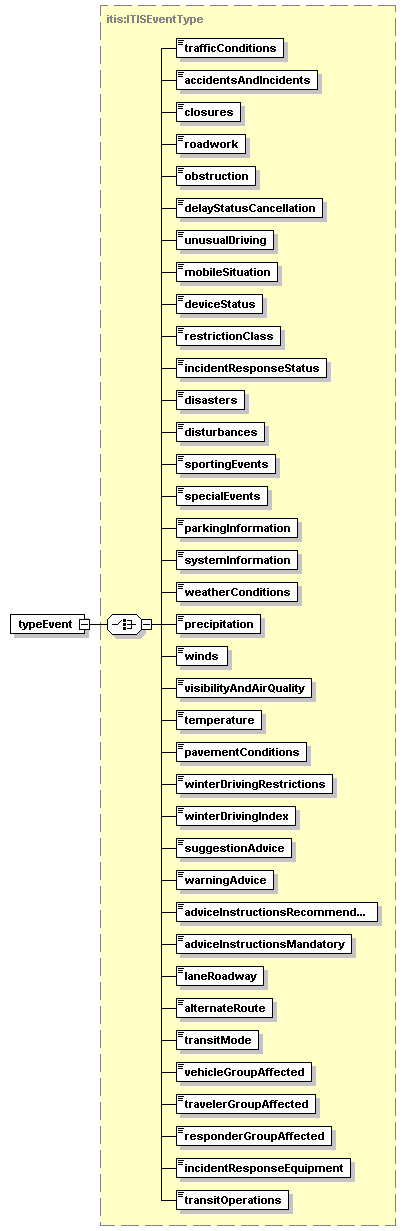

element NewIncidentEvent/typeEvent

diagram
type	itis:ITISEventType
properties	isRef  0 content  complex
children	trafficConditions accidentsAndIncidents closures roadwork obstruction delayStatusCancellation unusualDriving mobileSituation deviceStatus restrictionClass incidentResponseStatus disasters disturbances sportingEvents specialEvents parkingInformation systemInformation weatherConditions precipitation winds visibilityAndAirQuality temperature pavementConditions winterDrivingRestrictions winterDrivingIndex suggestionAdvice warningAdvice adviceInstructionsRecommendations adviceInstructionsMandatory laneRoadway alternateRoute transitMode vehicleGroupAffected travelerGroupAffected responderGroupAffected incidentResponseEquipment transitOperations
source	<xs:element name="typeEvent" type="itis:ITISEventType"/>

element NewIncidentEvent/localNewIncidentEvent

diagram
type	local:NewIncidentEvent
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localNewIncidentEvent" type="local:NewIncidentEvent" minOccurs="0"/>
