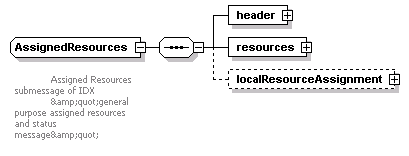

complexType AssignedResources
diagram
namespace http://www.IM-Draft-03-00-44a
children header resources localResourceAssignment
used by
elements assignedResources IMWrapper/assignedResources
annotation
documentation

            Assigned Resources submessage of IDX
            "general purpose assigned resources and status message"

source <xs:complexType name="AssignedResources">
  <xs:annotation>
    <xs:documentation>
            Assigned Resources submessage of IDX
            &amp;quot;general purpose assigned resources and status message&amp;quot;
         </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="header" type="Header"/>
    <!-- if an inner element is not present then
         the header content of the message which
         carries this DF shall be applied to the
         context of this message. The header has the
         data creator,  time stamps,  location,
         and what to do when the message becomes
         old  (how to get a fresh one)  and the
         reference ID of this message or submessage -->
    <xs:element name="resources">
      <xs:complexType>
        <xs:sequence maxOccurs="32">
          <xs:element name="resource">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="device" type="ResourceAssignment"/>
                <xs:element name="localResourceAssignment2" type="local:ResourceAssignment2" minOccurs="0"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localResourceAssignment" type="local:ResourceAssignment" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

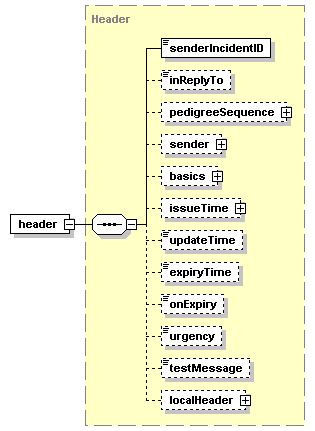

element AssignedResources/header
diagram
type Header
properties
isRef 0
content complex
children senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source <xs:element name="header" type="Header"/>

element AssignedResources/resources
diagram
properties
isRef 0
content complex
children resource
source <xs:element name="resources">
  <xs:complexType>
    <xs:sequence maxOccurs="32">
      <xs:element name="resource">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="device" type="ResourceAssignment"/>
            <xs:element name="localResourceAssignment2" type="local:ResourceAssignment2" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element AssignedResources/resources/resource
diagram
properties
isRef 0
content complex
children device localResourceAssignment2
source <xs:element name="resource">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="device" type="ResourceAssignment"/>
      <xs:element name="localResourceAssignment2" type="local:ResourceAssignment2" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

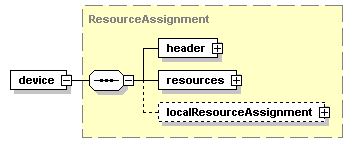

element AssignedResources/resources/resource/device
diagram
type ResourceAssignment
properties
isRef 0
content complex
children header resources localResourceAssignment
source <xs:element name="device" type="ResourceAssignment"/>

element AssignedResources/resources/resource/localResourceAssignment2
diagram
type local:ResourceAssignment2
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localResourceAssignment2" type="local:ResourceAssignment2" minOccurs="0"/>

element AssignedResources/localResourceAssignment
diagram
type local:ResourceAssignment
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localResourceAssignment" type="local:ResourceAssignment" minOccurs="0"/>
