complexType AvailableForHandOff

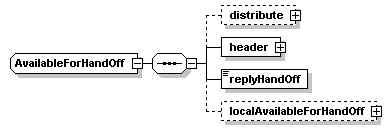

diagram
namespace http://www.IM-Draft-03-00-44a
children distribute header replyHandOff localAvailableForHandOff
used by
elements availableForHandOff IMWrapper/availableForHandOff
source <xs:complexType name="AvailableForHandOff">
  <xs:sequence>
    <xs:element name="distribute" type="Distribution" minOccurs="0"/>
    <xs:element name="header" type="Header"/>
    <!-- if an inner element is not present then
         the header content of the message which
         carries this DF shall be applied to the
         context of this message. The header has the
         data creator,  time stamps,  location,
         and what to do when the message becomes
         old  (how to get a fresh one)  and the
         reference ID of this message or submessage -->
    <xs:element name="replyHandOff">
      <xs:simpleType>
        <xs:restriction base="FreeText">
          <xs:minLength value="1"/>
          <xs:maxLength value="255"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- beyond a simple reply
         any &quot;conditions&quot; on the reply would be here -->
    <xs:element name="localAvailableForHandOff" type="local:AvailableForHandOff" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element AvailableForHandOff/distribute

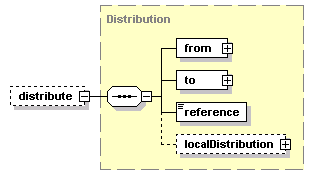

diagram
type Distribution
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children from to reference localDistribution
source <xs:element name="distribute" type="Distribution" minOccurs="0"/>

element AvailableForHandOff/header

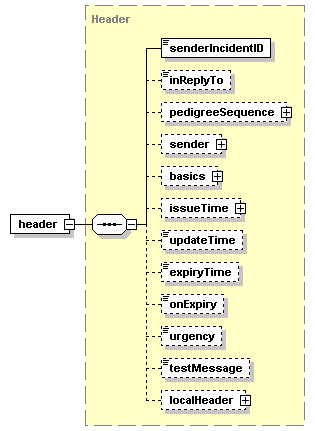

diagram
type Header
properties
isRef 0
content complex
children senderIncidentID inReplyTo pedigreeSequence sender basics issueTime updateTime expiryTime onExpiry urgency testMessage localHeader
source <xs:element name="header" type="Header"/>

element AvailableForHandOff/replyHandOff
diagram
type restriction of FreeText
properties
isRef 0
content simple
facets
minLength 1
maxLength 255
source <xs:element name="replyHandOff">
  <xs:simpleType>
    <xs:restriction base="FreeText">
      <xs:minLength value="1"/>
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element AvailableForHandOff/localAvailableForHandOff
diagram
type local:AvailableForHandOff
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localAvailableForHandOff" type="local:AvailableForHandOff" minOccurs="0"/>
