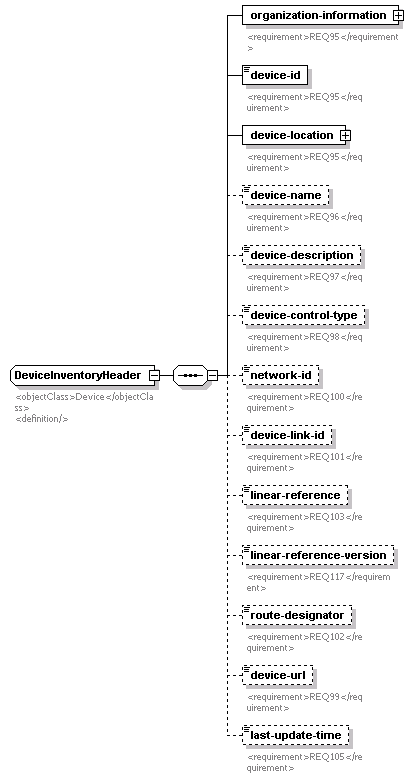

complexType DeviceInventoryHeader
diagram
namespace http://www.ite.org/tmdd
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
used by
elements CCTVInventory/device-inventory-header DetectorInventory/device-inventory-header DMSInventory/device-inventory-header ESSInventory/device-inventory-header GateInventory/device-inventory-header HARInventory/device-inventory-header LCSInventory/device-inventory-header RampMeterInventory/device-inventory-header IntersectionSignalInventory/device-inventory-header VSInventory/device-inventory-header
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ95</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ95</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-location" type="lrms:GeoLocation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ95</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ96</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-description" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ97</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-control-type" type="Device-control-type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ98</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ100</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-link-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ101</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ103</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ117</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="route-designator" type="Link-route-designator" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ102</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-url" type="Device-url" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ99</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ105</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

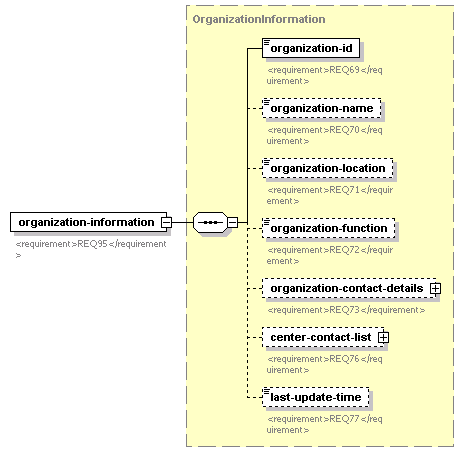

element DeviceInventoryHeader/organization-information
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ95</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ95</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ95</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ95</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

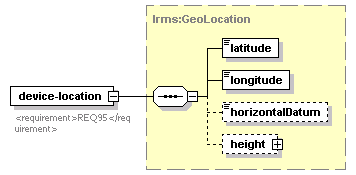

element DeviceInventoryHeader/device-location
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
annotation
documentation
<requirement>REQ95</requirement>
source <xs:element name="device-location" type="lrms:GeoLocation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ95</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/device-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ96</requirement>
source <xs:element name="device-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ96</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/device-description
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ97</requirement>
source <xs:element name="device-description" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ97</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/device-control-type
diagram
type Device-control-type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ98</requirement>
source <xs:element name="device-control-type" type="Device-control-type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ98</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/network-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ100</requirement>
source <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ100</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/device-link-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ101</requirement>
source <xs:element name="device-link-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ101</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/linear-reference
diagram
type Link-location-linear-reference
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 0
maxInclusive 2000000
annotation
documentation
<requirement>REQ103</requirement>
source <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ103</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/linear-reference-version
diagram
type Link-location-linear-reference-version
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ117</requirement>
source <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ117</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/route-designator
diagram
type Link-route-designator
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 64
annotation
documentation
<requirement>REQ102</requirement>
source <xs:element name="route-designator" type="Link-route-designator" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ102</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/device-url
diagram
type Device-url
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ99</requirement>
source <xs:element name="device-url" type="Device-url" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ99</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceInventoryHeader/last-update-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ105</requirement>
source <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ105</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
