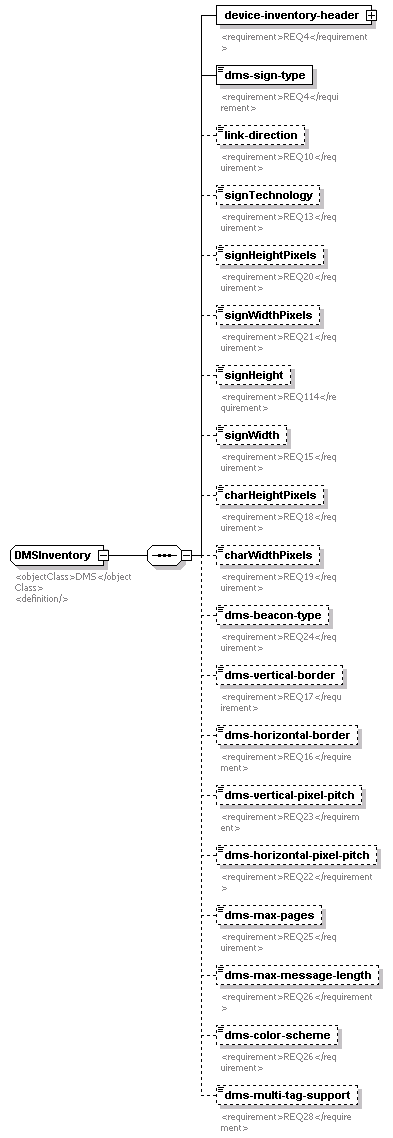

complexType DMSInventory
diagram
namespace http://www.ite.org/tmdd
children device-inventory-header dms-sign-type link-direction signTechnology signHeightPixels signWidthPixels signHeight signWidth charHeightPixels charWidthPixels dms-beacon-type dms-vertical-border dms-horizontal-border dms-vertical-pixel-pitch dms-horizontal-pixel-pitch dms-max-pages dms-max-message-length dms-color-scheme dms-multi-tag-support
used by
element dMSInventory
annotation
documentation
<objectClass>DMS</objectClass>
<definition/>
source <xs:complexType name="DMSInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>DMS</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ4</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-sign-type" type="Dms-sign-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ4</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-direction" type="Link-direction" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ10</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="signTechnology" type="ntcip:DmsSignTechnology" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ13</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="signHeightPixels" type="ntcip:VmsSignHeightPixels" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ20</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="signWidthPixels" type="ntcip:VmsSignWidthPixels" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ21</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="signHeight" type="ntcip:DmsSignHeight" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ114</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="signWidth" type="ntcip:DmsSignWidth" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ15</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="charHeightPixels" type="ntcip:VmsCharacterHeightPixels" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ18</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="charWidthPixels" type="ntcip:VmsCharacterWidthPixels" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ19</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-beacon-type" type="ntcip:DmsBeaconType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ24</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-vertical-border" type="ntcip:DmsVerticalBorder" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ17</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-horizontal-border" type="ntcip:DmsHorizontalBorder" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ16</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-vertical-pixel-pitch" type="ntcip:binary" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ23</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-horizontal-pixel-pitch" type="ntcip:binary" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ22</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-max-pages" type="ntcip:binary" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ25</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-max-message-length" type="ntcip:binary" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ26</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-color-scheme" type="ntcip:binary" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ26</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dms-multi-tag-support" type="ntcip:DmsSupportedMultiTags" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ28</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

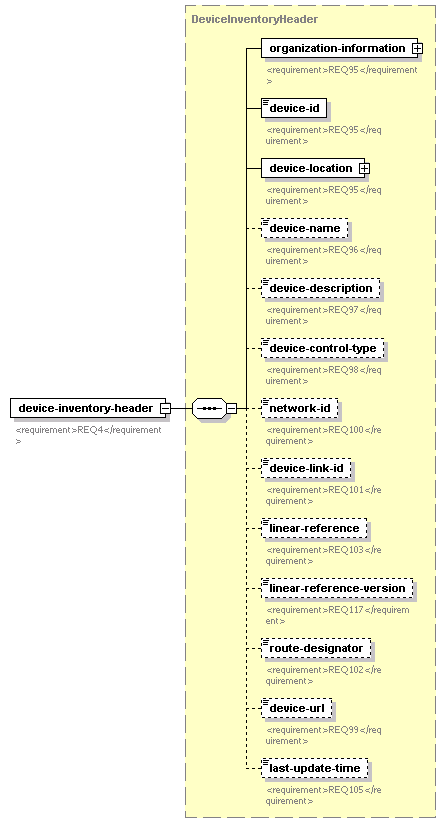

element DMSInventory/device-inventory-header
diagram
type DeviceInventoryHeader
properties
isRef 0
content complex
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
annotation
documentation
<requirement>REQ4</requirement>
source <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ4</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-sign-type
diagram
type Dms-sign-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ4</requirement>
source <xs:element name="dms-sign-type" type="Dms-sign-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ4</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/link-direction
diagram
type Link-direction
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ10</requirement>
source <xs:element name="link-direction" type="Link-direction" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ10</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/signTechnology
diagram
type ntcip:DmsSignTechnology
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ13</requirement>
source <xs:element name="signTechnology" type="ntcip:DmsSignTechnology" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ13</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/signHeightPixels
diagram
type ntcip:VmsSignHeightPixels
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ20</requirement>
source <xs:element name="signHeightPixels" type="ntcip:VmsSignHeightPixels" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ20</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/signWidthPixels
diagram
type ntcip:VmsSignWidthPixels
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ21</requirement>
source <xs:element name="signWidthPixels" type="ntcip:VmsSignWidthPixels" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ21</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/signHeight
diagram
type ntcip:DmsSignHeight
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ114</requirement>
source <xs:element name="signHeight" type="ntcip:DmsSignHeight" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ114</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/signWidth
diagram
type ntcip:DmsSignWidth
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ15</requirement>
source <xs:element name="signWidth" type="ntcip:DmsSignWidth" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ15</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/charHeightPixels
diagram
type ntcip:VmsCharacterHeightPixels
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ18</requirement>
source <xs:element name="charHeightPixels" type="ntcip:VmsCharacterHeightPixels" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ18</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/charWidthPixels
diagram
type ntcip:VmsCharacterWidthPixels
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ19</requirement>
source <xs:element name="charWidthPixels" type="ntcip:VmsCharacterWidthPixels" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ19</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-beacon-type
diagram
type ntcip:DmsBeaconType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ24</requirement>
source <xs:element name="dms-beacon-type" type="ntcip:DmsBeaconType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ24</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-vertical-border
diagram
type ntcip:DmsVerticalBorder
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ17</requirement>
source <xs:element name="dms-vertical-border" type="ntcip:DmsVerticalBorder" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ17</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-horizontal-border
diagram
type ntcip:DmsHorizontalBorder
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ16</requirement>
source <xs:element name="dms-horizontal-border" type="ntcip:DmsHorizontalBorder" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ16</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-vertical-pixel-pitch
diagram
type ntcip:binary
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
pattern [01]*
annotation
documentation
<requirement>REQ23</requirement>
source <xs:element name="dms-vertical-pixel-pitch" type="ntcip:binary" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ23</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-horizontal-pixel-pitch
diagram
type ntcip:binary
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
pattern [01]*
annotation
documentation
<requirement>REQ22</requirement>
source <xs:element name="dms-horizontal-pixel-pitch" type="ntcip:binary" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ22</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-max-pages
diagram
type ntcip:binary
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
pattern [01]*
annotation
documentation
<requirement>REQ25</requirement>
source <xs:element name="dms-max-pages" type="ntcip:binary" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ25</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-max-message-length
diagram
type ntcip:binary
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
pattern [01]*
annotation
documentation
<requirement>REQ26</requirement>
source <xs:element name="dms-max-message-length" type="ntcip:binary" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ26</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-color-scheme
diagram
type ntcip:binary
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
pattern [01]*
annotation
documentation
<requirement>REQ26</requirement>
source <xs:element name="dms-color-scheme" type="ntcip:binary" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ26</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DMSInventory/dms-multi-tag-support
diagram
type ntcip:DmsSupportedMultiTags
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ28</requirement>
source <xs:element name="dms-multi-tag-support" type="ntcip:DmsSupportedMultiTags" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ28</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
