complexType GateInventory

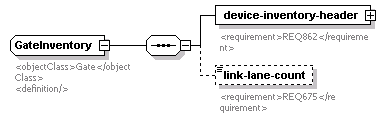

diagram
namespace http://www.ite.org/tmdd
children device-inventory-header link-lane-count
used by
element gateInventory
annotation
documentation
<objectClass>Gate</objectClass>
<definition/>
source <xs:complexType name="GateInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Gate</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ862</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-lane-count" type="Link-lane-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ675</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element GateInventory/device-inventory-header

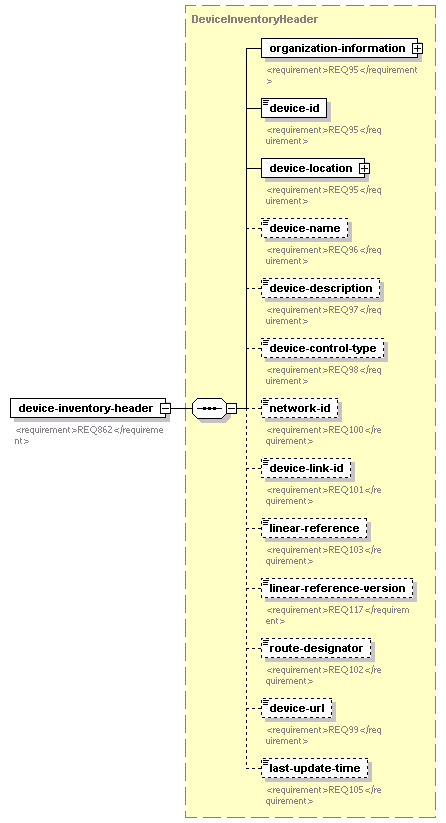

diagram
type DeviceInventoryHeader
properties
isRef 0
content complex
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
annotation
documentation
<requirement>REQ862</requirement>
source <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ862</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element GateInventory/link-lane-count
diagram
type Link-lane-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 50
annotation
documentation
<requirement>REQ675</requirement>
source <xs:element name="link-lane-count" type="Link-lane-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ675</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
