complexType lrms:GeoLocation

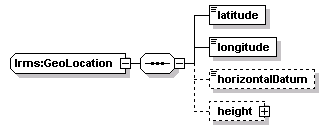

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	latitude longitude horizontalDatum height
used by	elements  LinkList/begin-node-location OrganizationCenterInformation/center-location DetectorDetails/detector-location DeviceInventoryHeader/device-location DeviceLocation/device-location LinkList/end-node-location lrms:CrossStreetsLink/endGeoLocation lrms:GeoLocationLink/endPoint LandmarkLocation/geo-location PointOnLink/geo-location lrms:NodeAttribute/geoLocation lrms:CrossStreetsPoint/geoLocation lrms:PointLocation/geoLocationPoint lrms:GeoCoord/geoLocationPoint lrms:Geometry/node NodeList/node-location lrms:Geometry/nodeOffset/originNode RampMeterInventory/ramp-location lrms:CrossStreetsLink/startGeoLocation lrms:GeoLocationLink/startPoint
source	<xs:complexType name="GeoLocation">   <xs:sequence>     <xs:element name="latitude" type="Latitude"/>     <xs:element name="longitude" type="Longitude"/>     <xs:element name="horizontalDatum" type="HorizontalDatum" minOccurs="0"/>     <xs:element name="height" type="Height" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:GeoLocation/latitude

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="latitude" type="Latitude"/>

element lrms:GeoLocation/longitude

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="longitude" type="Longitude"/>

element lrms:GeoLocation/horizontalDatum

diagram
type	lrms:HorizontalDatum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="horizontalDatum" type="HorizontalDatum" minOccurs="0"/>

element lrms:GeoLocation/height

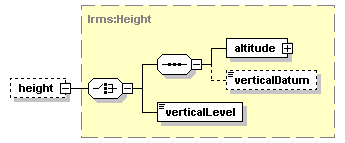

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="height" type="Height" minOccurs="0"/>
