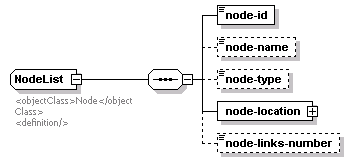

complexType NodeList

diagram
namespace	http://www.ite.org/tmdd
children	node-id node-name node-type node-location node-links-number
used by	element  NodeInventory/node-list/node
annotation	documentation <objectClass>Node</objectClass> <definition/>
source	<xs:complexType name="NodeList">   <xs:annotation>     <xs:documentation>       <objectClass>Node</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="node-id" type="Roadway-network-identifier"/>     <xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>     <xs:element name="node-type" type="Node-type" minOccurs="0"/>     <xs:element name="node-location" type="lrms:GeoLocation"/>     <xs:element name="node-links-number" type="Node-links-number" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element NodeList/node-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="node-id" type="Roadway-network-identifier"/>

element NodeList/node-name

diagram
type	Roadway-network-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>

element NodeList/node-type

diagram
type	Node-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="node-type" type="Node-type" minOccurs="0"/>

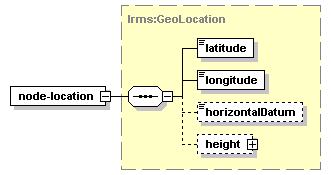

element NodeList/node-location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="node-location" type="lrms:GeoLocation"/>

element NodeList/node-links-number

diagram
type	Node-links-number
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  999
source	<xs:element name="node-links-number" type="Node-links-number" minOccurs="0"/>
