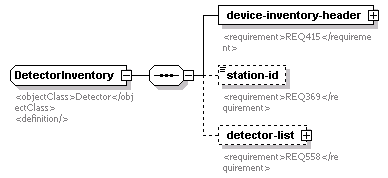

complexType DetectorInventory
diagram
namespace http://www.ite.org/tmdd
children device-inventory-header station-id detector-list
used by
element detectorInventory
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="DetectorInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ369</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ558</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="detector" type="DetectorDetails"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

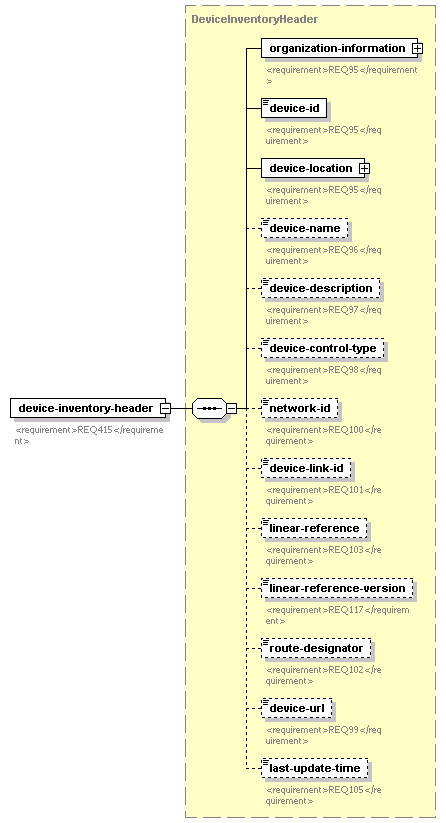

element DetectorInventory/device-inventory-header
diagram
type DeviceInventoryHeader
properties
isRef 0
content complex
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorInventory/station-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ369</requirement>
source <xs:element name="station-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ369</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorInventory/detector-list
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children detector
annotation
documentation
<requirement>REQ558</requirement>
source <xs:element name="detector-list" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ558</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="detector" type="DetectorDetails"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

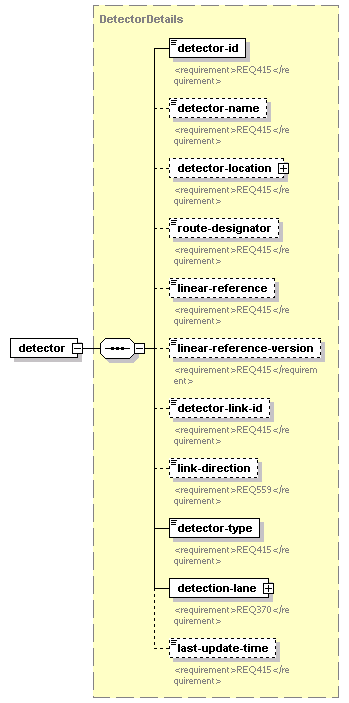

element DetectorInventory/detector-list/detector
diagram
type DetectorDetails
properties
isRef 0
content complex
children detector-id detector-name detector-location route-designator linear-reference linear-reference-version detector-link-id link-direction detector-type detection-lane last-update-time
source <xs:element name="detector" type="DetectorDetails"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
