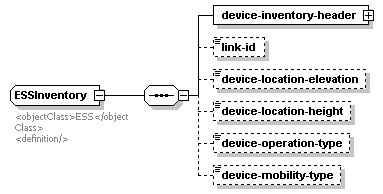

complexType ESSInventory

diagram
namespace	http://www.ite.org/tmdd
children	device-inventory-header link-id device-location-elevation device-location-height device-operation-type device-mobility-type
used by	element  eSSInventory
annotation	documentation <objectClass>ESS</objectClass> <definition/>
source	<xs:complexType name="ESSInventory">   <xs:annotation>     <xs:documentation>       <objectClass>ESS</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-inventory-header" type="DeviceInventoryHeader"/>     <xs:element name="link-id" type="Roadway-network-identifier" minOccurs="0"/>     <xs:element name="device-location-elevation" type="Device-location-elevation" minOccurs="0"/>     <xs:element name="device-location-height" type="Device-location-height" minOccurs="0"/>     <xs:element name="device-operation-type" type="Device-operation-type" minOccurs="0"/>     <xs:element name="device-mobility-type" type="Device-mobility-type" minOccurs="0"/>   </xs:sequence> </xs:complexType>

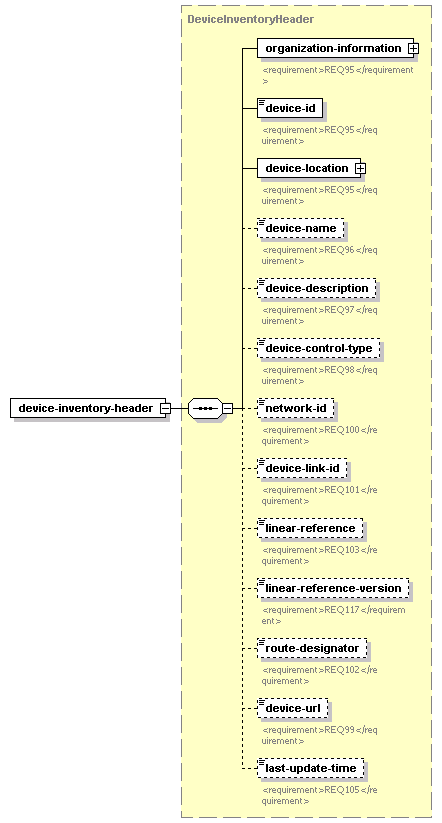

element ESSInventory/device-inventory-header

diagram
type	DeviceInventoryHeader
properties	isRef  0 content  complex
children	organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
source	<xs:element name="device-inventory-header" type="DeviceInventoryHeader"/>

element ESSInventory/link-id

diagram
type	Roadway-network-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="link-id" type="Roadway-network-identifier" minOccurs="0"/>

element ESSInventory/device-location-elevation

diagram
type	Device-location-elevation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -10000 maxInclusive  10000
source	<xs:element name="device-location-elevation" type="Device-location-elevation" minOccurs="0"/>

element ESSInventory/device-location-height

diagram
type	Device-location-height
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -10000 maxInclusive  10000
source	<xs:element name="device-location-height" type="Device-location-height" minOccurs="0"/>

element ESSInventory/device-operation-type

diagram
type	Device-operation-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="device-operation-type" type="Device-operation-type" minOccurs="0"/>

element ESSInventory/device-mobility-type

diagram
type	Device-mobility-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="device-mobility-type" type="Device-mobility-type" minOccurs="0"/>
