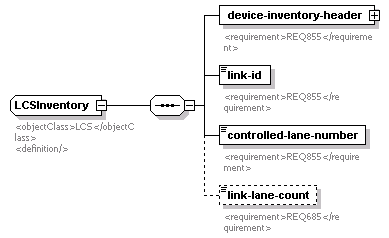

complexType LCSInventory
diagram
namespace http://www.ite.org/tmdd
children device-inventory-header link-id controlled-lane-number link-lane-count
used by
element lCSInventory
annotation
documentation
<objectClass>LCS</objectClass>
<definition/>
source <xs:complexType name="LCSInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>LCS</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ855</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-id" type="Roadway-network-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ855</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="controlled-lane-number" type="Detector-lane-number">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ855</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-lane-count" type="Link-lane-count" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ685</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

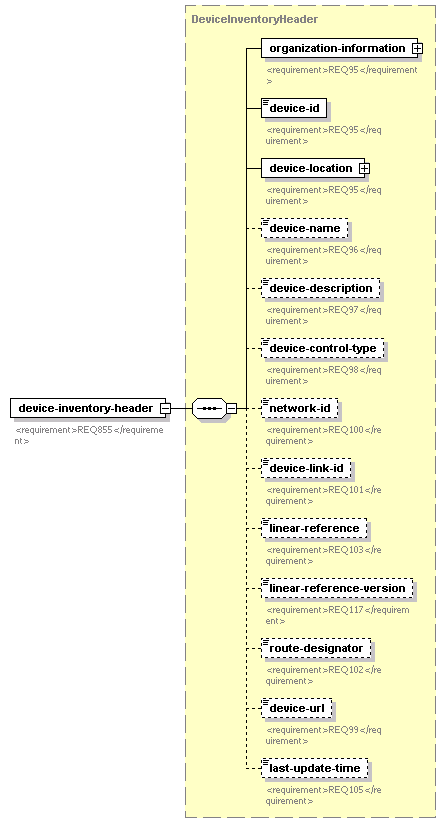

element LCSInventory/device-inventory-header
diagram
type DeviceInventoryHeader
properties
isRef 0
content complex
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
annotation
documentation
<requirement>REQ855</requirement>
source <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ855</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LCSInventory/link-id
diagram
type Roadway-network-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ855</requirement>
source <xs:element name="link-id" type="Roadway-network-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ855</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LCSInventory/controlled-lane-number
diagram
type Detector-lane-number
properties
isRef 0
content simple
facets
minLength 1
maxLength 255
pattern [01]*
annotation
documentation
<requirement>REQ855</requirement>
source <xs:element name="controlled-lane-number" type="Detector-lane-number">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ855</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element LCSInventory/link-lane-count
diagram
type Link-lane-count
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 50
annotation
documentation
<requirement>REQ685</requirement>
source <xs:element name="link-lane-count" type="Link-lane-count" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ685</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
