complexType CCTVInventory

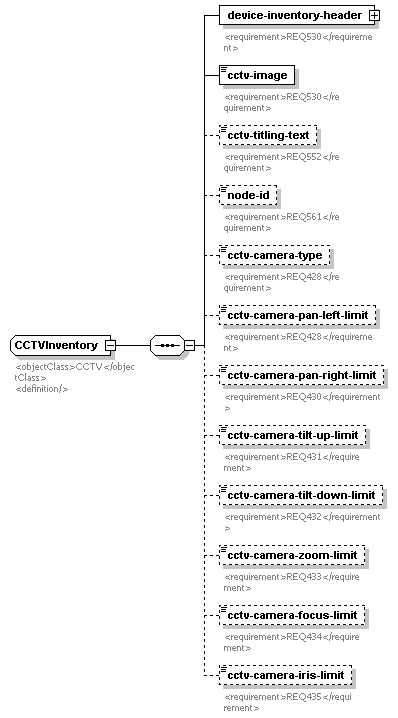

diagram
namespace http://www.ite.org/tmdd
children device-inventory-header cctv-image cctv-titling-text node-id cctv-camera-type cctv-camera-pan-left-limit cctv-camera-pan-right-limit cctv-camera-tilt-up-limit cctv-camera-tilt-down-limit cctv-camera-zoom-limit cctv-camera-focus-limit cctv-camera-iris-limit
used by
element cCTVInventory
annotation
documentation
<objectClass>CCTV</objectClass>
<definition/>
source <xs:complexType name="CCTVInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>CCTV</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ530</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-image" type="Cctv-image-supported">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ530</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-titling-text" type="Cctv-titling-text" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ552</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="node-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ561</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-type" type="Cctv-camera-type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ428</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-pan-left-limit" type="ntcip:RangePanLeftLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ428</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-pan-right-limit" type="ntcip:RangePanRightLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ430</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-tilt-up-limit" type="ntcip:RangeTiltUpLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ431</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-tilt-down-limit" type="ntcip:RangeTiltDownLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ432</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-zoom-limit" type="ntcip:RangeZoomLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ433</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-focus-limit" type="ntcip:RangeFocusLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ434</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cctv-camera-iris-limit" type="ntcip:RangeIrisLimit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ435</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element CCTVInventory/device-inventory-header

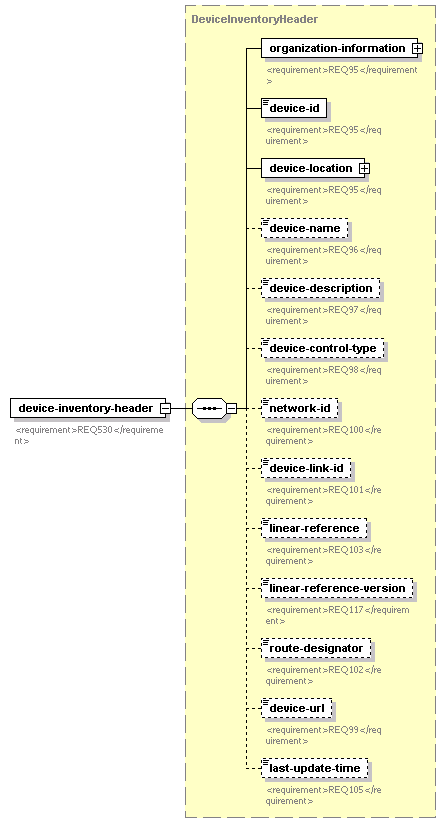

diagram
type DeviceInventoryHeader
properties
isRef 0
content complex
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
annotation
documentation
<requirement>REQ530</requirement>
source <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ530</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-image
diagram
type Cctv-image-supported
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ530</requirement>
source <xs:element name="cctv-image" type="Cctv-image-supported">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ530</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-titling-text
diagram
type Cctv-titling-text
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 64
annotation
documentation
<requirement>REQ552</requirement>
source <xs:element name="cctv-titling-text" type="Cctv-titling-text" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ552</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/node-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ561</requirement>
source <xs:element name="node-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ561</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-type
diagram
type Cctv-camera-type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ428</requirement>
source <xs:element name="cctv-camera-type" type="Cctv-camera-type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ428</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-pan-left-limit
diagram
type ntcip:RangePanLeftLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ428</requirement>
source <xs:element name="cctv-camera-pan-left-limit" type="ntcip:RangePanLeftLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ428</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-pan-right-limit
diagram
type ntcip:RangePanRightLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ430</requirement>
source <xs:element name="cctv-camera-pan-right-limit" type="ntcip:RangePanRightLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ430</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-tilt-up-limit
diagram
type ntcip:RangeTiltUpLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ431</requirement>
source <xs:element name="cctv-camera-tilt-up-limit" type="ntcip:RangeTiltUpLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ431</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-tilt-down-limit
diagram
type ntcip:RangeTiltDownLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ432</requirement>
source <xs:element name="cctv-camera-tilt-down-limit" type="ntcip:RangeTiltDownLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ432</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-zoom-limit
diagram
type ntcip:RangeZoomLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ433</requirement>
source <xs:element name="cctv-camera-zoom-limit" type="ntcip:RangeZoomLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ433</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-focus-limit
diagram
type ntcip:RangeFocusLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ434</requirement>
source <xs:element name="cctv-camera-focus-limit" type="ntcip:RangeFocusLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ434</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element CCTVInventory/cctv-camera-iris-limit
diagram
type ntcip:RangeIrisLimit
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ435</requirement>
source <xs:element name="cctv-camera-iris-limit" type="ntcip:RangeIrisLimit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ435</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
