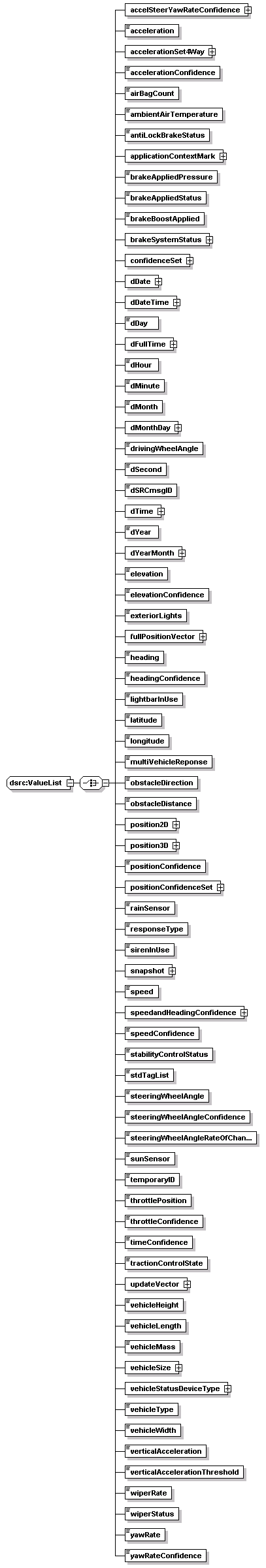

complexType dsrc:ValueList

diagram
namespace	http://www.DSRC-Draft-02-00-15
children	accelSteerYawRateConfidence acceleration accelerationSet4Way accelerationConfidence airBagCount ambientAirTemperature antiLockBrakeStatus applicationContextMark brakeAppliedPressure brakeAppliedStatus brakeBoostApplied brakeSystemStatus confidenceSet dDate dDateTime dDay dFullTime dHour dMinute dMonth dMonthDay drivingWheelAngle dSecond dSRCmsgID dTime dYear dYearMonth elevation elevationConfidence exteriorLights fullPositionVector heading headingConfidence lightbarInUse latitude longitude multiVehicleReponse obstacleDirection obstacleDistance position2D position3D positionConfidence positionConfidenceSet rainSensor responseType sirenInUse snapshot speed speedandHeadingConfidence speedConfidence stabilityControlStatus stdTagList steeringWheelAngle steeringWheelAngleConfidence steeringWheelAngleRateOfChange sunSensor temporaryID throttlePosition throttleConfidence timeConfidence tractionControlState updateVector vehicleHeight vehicleLength vehicleMass vehicleSize vehicleStatusDeviceType vehicleType vehicleWidth verticalAcceleration verticalAccelerationThreshold wiperRate wiperStatus yawRate yawRateConfidence
used by	elements  dsrc:SnapshotItem/item dsrc:AlaCarte/items1/items1-item/value dsrc:AlaCarte/items2/items2-item/data/value dsrc:BasicSafetyMessage/items1/items1-item/value dsrc:BasicSafetyMessage/items2/items2-item/data/value
source	<xs:complexType name="ValueList">   <xs:choice>     <xs:element name="accelSteerYawRateConfidence" type="AccelSteerYawRateConfidence"/>     <xs:element name="acceleration" type="Acceleration"/>     <xs:element name="accelerationSet4Way" type="AccelerationSet4Way"/>     <xs:element name="accelerationConfidence" type="AccelerationConfidence"/>     <xs:element name="airBagCount" type="AirBagCount"/>     <xs:element name="ambientAirTemperature" type="AmbientAirTemperature"/>     <xs:element name="antiLockBrakeStatus" type="AntiLockBrakeStatus"/>     <xs:element name="applicationContextMark" type="AppContextMark"/>     <xs:element name="brakeAppliedPressure" type="BrakeAppliedPressure"/>     <xs:element name="brakeAppliedStatus" type="BrakeAppliedStatus"/>     <xs:element name="brakeBoostApplied" type="BrakeBoostApplied"/>     <xs:element name="brakeSystemStatus" type="BrakeSystemStatus"/>     <xs:element name="confidenceSet" type="ConfidenceSet"/>     <xs:element name="dDate" type="DDate"/>     <xs:element name="dDateTime" type="DDateTime"/>     <xs:element name="dDay" type="DDay"/>     <xs:element name="dFullTime" type="DFullTime"/>     <xs:element name="dHour" type="DHour"/>     <xs:element name="dMinute" type="DMinute"/>     <xs:element name="dMonth" type="DMonth"/>     <xs:element name="dMonthDay" type="DMonthDay"/>     <xs:element name="drivingWheelAngle" type="DrivingWheelAngle"/>     <xs:element name="dSecond" type="DSecond"/>     <xs:element name="dSRCmsgID" type="DSRCmsgID"/>     <xs:element name="dTime" type="DTime"/>     <xs:element name="dYear" type="DYear"/>     <xs:element name="dYearMonth" type="DYearMonth"/>     <xs:element name="elevation" type="Elevation"/>     <xs:element name="elevationConfidence" type="ElevationConfidence"/>     <xs:element name="exteriorLights" type="ExteriorLights"/>     <xs:element name="fullPositionVector" type="FullPositionVector"/>     <xs:element name="heading" type="Heading"/>     <xs:element name="headingConfidence" type="HeadingConfidence"/>     <xs:element name="lightbarInUse" type="LightbarInUse"/>     <xs:element name="latitude" type="LongLatitude"/>     <xs:element name="longitude" type="LongLongitude"/>     <!-- longLatitude                   LongLatitude,          longLongitude                  LongLongitude,          longElevation                  LongElevation, -->     <xs:element name="multiVehicleReponse" type="MultiVehicleReponse"/>     <xs:element name="obstacleDirection" type="ObstacleDirection"/>     <xs:element name="obstacleDistance" type="ObstacleDistance"/>     <xs:element name="position2D" type="Position2D"/>     <xs:element name="position3D" type="Position3D"/>     <!-- positionLong                   PositionLong, -->     <xs:element name="positionConfidence" type="PositionConfidence"/>     <xs:element name="positionConfidenceSet" type="PositionConfidenceSet"/>     <!-- positionShort                  PositionShort, -->     <xs:element name="rainSensor" type="RainSensor"/>     <xs:element name="responseType" type="ResponseType"/>     <!-- shortLatitude                  ShortLatitude,          shortLongitude                 ShortLongitude,          shortElevation                 ShortElevation, -->     <xs:element name="sirenInUse" type="SirenInUse"/>     <xs:element name="snapshot" type="Snapshot"/>     <xs:element name="speed" type="Speed"/>     <xs:element name="speedandHeadingConfidence" type="SpeedandHeadingConfidence"/>     <xs:element name="speedConfidence" type="SpeedConfidence"/>     <xs:element name="stabilityControlStatus" type="StabilityControlStatus"/>     <xs:element name="stdTagList" type="StdTagList"/>     <xs:element name="steeringWheelAngle" type="SteeringWheelAngle"/>     <xs:element name="steeringWheelAngleConfidence" type="SteeringWheelAngleConfidence"/>     <xs:element name="steeringWheelAngleRateOfChange" type="SteeringWheelAngleRateOfChange"/>     <xs:element name="sunSensor" type="SunSensor"/>     <xs:element name="temporaryID" type="TemporaryID"/>     <xs:element name="throttlePosition" type="ThrottlePosition"/>     <xs:element name="throttleConfidence" type="ThrottleConfidence"/>     <xs:element name="timeConfidence" type="TimeConfidence"/>     <xs:element name="tractionControlState" type="TractionControlState"/>     <xs:element name="updateVector" type="UpdateVector"/>     <xs:element name="vehicleHeight" type="VehicleHeight"/>     <!-- vehicleLatitude                VehicleLatitude, -->     <xs:element name="vehicleLength" type="VehicleLength"/>     <!-- vehicleLongitude               VehicleLongitude, -->     <xs:element name="vehicleMass" type="VehicleMass"/>     <xs:element name="vehicleSize" type="VehicleSize"/>     <xs:element name="vehicleStatusDeviceType" type="VehicleStatusDeviceType"/>     <xs:element name="vehicleType" type="VehicleType"/>     <xs:element name="vehicleWidth" type="VehicleWidth"/>     <xs:element name="verticalAcceleration" type="VerticalAcceleration"/>     <xs:element name="verticalAccelerationThreshold" type="VerticalAccelerationThreshold"/>     <xs:element name="wiperRate" type="WiperRate"/>     <xs:element name="wiperStatus" type="WiperStatus"/>     <xs:element name="yawRate" type="YawRate"/>     <xs:element name="yawRateConfidence" type="YawRateConfidence"/>     <!-- pick any single item/group from the above -->   </xs:choice> </xs:complexType>

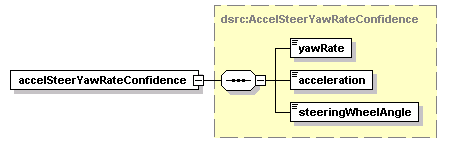

element dsrc:ValueList/accelSteerYawRateConfidence

diagram
type	dsrc:AccelSteerYawRateConfidence
properties	isRef  0 content  complex
children	yawRate acceleration steeringWheelAngle
source	<xs:element name="accelSteerYawRateConfidence" type="AccelSteerYawRateConfidence"/>

element dsrc:ValueList/acceleration

diagram
type	dsrc:Acceleration
properties	isRef  0 content  simple
facets	minInclusive  -2000 maxInclusive  2000
source	<xs:element name="acceleration" type="Acceleration"/>

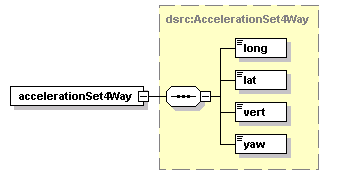

element dsrc:ValueList/accelerationSet4Way

diagram
type	dsrc:AccelerationSet4Way
properties	isRef  0 content  complex
children	long lat vert yaw
source	<xs:element name="accelerationSet4Way" type="AccelerationSet4Way"/>

element dsrc:ValueList/accelerationConfidence

diagram
type	dsrc:AccelerationConfidence
properties	isRef  0 content  simple
source	<xs:element name="accelerationConfidence" type="AccelerationConfidence"/>

element dsrc:ValueList/airBagCount

diagram
type	dsrc:AirBagCount
properties	isRef  0 content  simple
facets	maxInclusive  100
source	<xs:element name="airBagCount" type="AirBagCount"/>

element dsrc:ValueList/ambientAirTemperature

diagram
type	dsrc:AmbientAirTemperature
properties	isRef  0 content  simple
facets	maxInclusive  191
source	<xs:element name="ambientAirTemperature" type="AmbientAirTemperature"/>

element dsrc:ValueList/antiLockBrakeStatus

diagram
type	dsrc:AntiLockBrakeStatus
properties	isRef  0 content  simple
source	<xs:element name="antiLockBrakeStatus" type="AntiLockBrakeStatus"/>

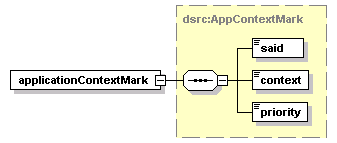

element dsrc:ValueList/applicationContextMark

diagram
type	dsrc:AppContextMark
properties	isRef  0 content  complex
children	said context priority
source	<xs:element name="applicationContextMark" type="AppContextMark"/>

element dsrc:ValueList/brakeAppliedPressure

diagram
type	dsrc:BrakeAppliedPressure
properties	isRef  0 content  simple
source	<xs:element name="brakeAppliedPressure" type="BrakeAppliedPressure"/>

element dsrc:ValueList/brakeAppliedStatus

diagram
type	dsrc:BrakeAppliedStatus
properties	isRef  0 content  simple
source	<xs:element name="brakeAppliedStatus" type="BrakeAppliedStatus"/>

element dsrc:ValueList/brakeBoostApplied

diagram
type	dsrc:BrakeBoostApplied
properties	isRef  0 content  simple
source	<xs:element name="brakeBoostApplied" type="BrakeBoostApplied"/>

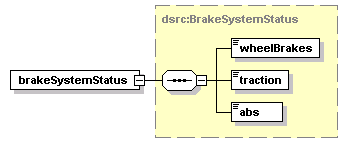

element dsrc:ValueList/brakeSystemStatus

diagram
type	dsrc:BrakeSystemStatus
properties	isRef  0 content  complex
children	wheelBrakes traction abs
source	<xs:element name="brakeSystemStatus" type="BrakeSystemStatus"/>

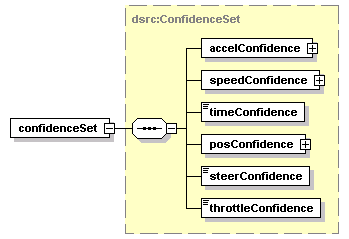

element dsrc:ValueList/confidenceSet

diagram
type	dsrc:ConfidenceSet
properties	isRef  0 content  complex
children	accelConfidence speedConfidence timeConfidence posConfidence steerConfidence throttleConfidence
source	<xs:element name="confidenceSet" type="ConfidenceSet"/>

element dsrc:ValueList/dDate

diagram
type	dsrc:DDate
properties	isRef  0 content  complex
children	year month day
source	<xs:element name="dDate" type="DDate"/>

element dsrc:ValueList/dDateTime

diagram
type	dsrc:DDateTime
properties	isRef  0 content  complex
children	year month day hour minute second
source	<xs:element name="dDateTime" type="DDateTime"/>

element dsrc:ValueList/dDay

diagram
type	dsrc:DDay
properties	isRef  0 content  simple
facets	maxInclusive  31
source	<xs:element name="dDay" type="DDay"/>

element dsrc:ValueList/dFullTime

diagram
type	dsrc:DFullTime
properties	isRef  0 content  complex
children	year month day hour minute
source	<xs:element name="dFullTime" type="DFullTime"/>

element dsrc:ValueList/dHour

diagram
type	dsrc:DHour
properties	isRef  0 content  simple
facets	maxInclusive  31
source	<xs:element name="dHour" type="DHour"/>

element dsrc:ValueList/dMinute

diagram
type	dsrc:DMinute
properties	isRef  0 content  simple
facets	maxInclusive  63
source	<xs:element name="dMinute" type="DMinute"/>

element dsrc:ValueList/dMonth

diagram
type	dsrc:DMonth
properties	isRef  0 content  simple
facets	maxInclusive  15
source	<xs:element name="dMonth" type="DMonth"/>

element dsrc:ValueList/dMonthDay

diagram
type	dsrc:DMonthDay
properties	isRef  0 content  complex
children	month day
source	<xs:element name="dMonthDay" type="DMonthDay"/>

element dsrc:ValueList/drivingWheelAngle

diagram
type	dsrc:DrivingWheelAngle
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="drivingWheelAngle" type="DrivingWheelAngle"/>

element dsrc:ValueList/dSecond

diagram
type	dsrc:DSecond
properties	isRef  0 content  simple
source	<xs:element name="dSecond" type="DSecond"/>

element dsrc:ValueList/dSRCmsgID

diagram
type	dsrc:DSRCmsgID
properties	isRef  0 content  simple
source	<xs:element name="dSRCmsgID" type="DSRCmsgID"/>

element dsrc:ValueList/dTime

diagram
type	dsrc:DTime
properties	isRef  0 content  complex
children	hour minute second
source	<xs:element name="dTime" type="DTime"/>

element dsrc:ValueList/dYear

diagram
type	dsrc:DYear
properties	isRef  0 content  simple
facets	maxInclusive  9999
source	<xs:element name="dYear" type="DYear"/>

element dsrc:ValueList/dYearMonth

diagram
type	dsrc:DYearMonth
properties	isRef  0 content  complex
children	year month
source	<xs:element name="dYearMonth" type="DYearMonth"/>

element dsrc:ValueList/elevation

diagram
type	dsrc:Elevation
properties	isRef  0 content  simple
facets	maxInclusive  16777215
source	<xs:element name="elevation" type="Elevation"/>

element dsrc:ValueList/elevationConfidence

diagram
type	dsrc:ElevationConfidence
properties	isRef  0 content  simple
source	<xs:element name="elevationConfidence" type="ElevationConfidence"/>

element dsrc:ValueList/exteriorLights

diagram
type	dsrc:ExteriorLights
properties	isRef  0 content  simple
source	<xs:element name="exteriorLights" type="ExteriorLights"/>

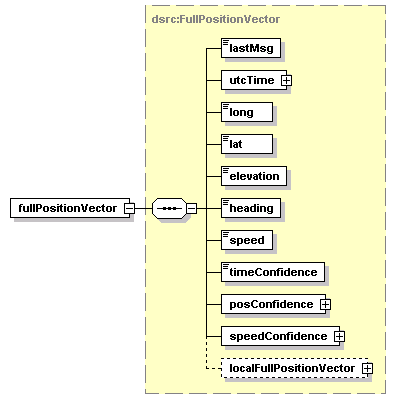

element dsrc:ValueList/fullPositionVector

diagram
type	dsrc:FullPositionVector
properties	isRef  0 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="fullPositionVector" type="FullPositionVector"/>

element dsrc:ValueList/heading

diagram
type	dsrc:Heading
properties	isRef  0 content  simple
source	<xs:element name="heading" type="Heading"/>

element dsrc:ValueList/headingConfidence

diagram
type	dsrc:HeadingConfidence
properties	isRef  0 content  simple
source	<xs:element name="headingConfidence" type="HeadingConfidence"/>

element dsrc:ValueList/lightbarInUse

diagram
type	dsrc:LightbarInUse
properties	isRef  0 content  simple
source	<xs:element name="lightbarInUse" type="LightbarInUse"/>

element dsrc:ValueList/latitude

diagram
type	dsrc:LongLatitude
properties	isRef  0 content  simple
source	<xs:element name="latitude" type="LongLatitude"/>

element dsrc:ValueList/longitude

diagram
type	dsrc:LongLongitude
properties	isRef  0 content  simple
source	<xs:element name="longitude" type="LongLongitude"/>

element dsrc:ValueList/multiVehicleReponse

diagram
type	dsrc:MultiVehicleReponse
properties	isRef  0 content  simple
source	<xs:element name="multiVehicleReponse" type="MultiVehicleReponse"/>

element dsrc:ValueList/obstacleDirection

diagram
type	dsrc:ObstacleDirection
properties	isRef  0 content  simple
source	<xs:element name="obstacleDirection" type="ObstacleDirection"/>

element dsrc:ValueList/obstacleDistance

diagram
type	dsrc:ObstacleDistance
properties	isRef  0 content  simple
facets	maxInclusive  999
source	<xs:element name="obstacleDistance" type="ObstacleDistance"/>

element dsrc:ValueList/position2D

diagram
type	dsrc:Position2D
properties	isRef  0 content  complex
children	lat long
source	<xs:element name="position2D" type="Position2D"/>

element dsrc:ValueList/position3D

diagram
type	dsrc:Position3D
properties	isRef  0 content  complex
children	lat long elevation
source	<xs:element name="position3D" type="Position3D"/>

element dsrc:ValueList/positionConfidence

diagram
type	dsrc:PositionConfidence
properties	isRef  0 content  simple
source	<xs:element name="positionConfidence" type="PositionConfidence"/>

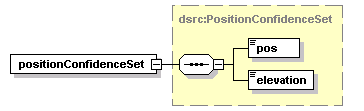

element dsrc:ValueList/positionConfidenceSet

diagram
type	dsrc:PositionConfidenceSet
properties	isRef  0 content  complex
children	pos elevation
source	<xs:element name="positionConfidenceSet" type="PositionConfidenceSet"/>

element dsrc:ValueList/rainSensor

diagram
type	dsrc:RainSensor
properties	isRef  0 content  simple
source	<xs:element name="rainSensor" type="RainSensor"/>

element dsrc:ValueList/responseType

diagram
type	dsrc:ResponseType
properties	isRef  0 content  simple
source	<xs:element name="responseType" type="ResponseType"/>

element dsrc:ValueList/sirenInUse

diagram
type	dsrc:SirenInUse
properties	isRef  0 content  simple
source	<xs:element name="sirenInUse" type="SirenInUse"/>

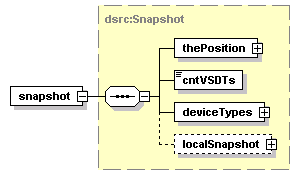

element dsrc:ValueList/snapshot

diagram
type	dsrc:Snapshot
properties	isRef  0 content  complex
children	thePosition cntVSDTs deviceTypes localSnapshot
source	<xs:element name="snapshot" type="Snapshot"/>

element dsrc:ValueList/speed

diagram
type	dsrc:Speed
properties	isRef  0 content  simple
facets	minInclusive  -32765 maxInclusive  32765
source	<xs:element name="speed" type="Speed"/>

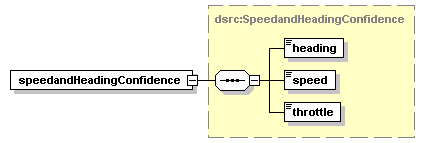

element dsrc:ValueList/speedandHeadingConfidence

diagram
type	dsrc:SpeedandHeadingConfidence
properties	isRef  0 content  complex
children	heading speed throttle
source	<xs:element name="speedandHeadingConfidence" type="SpeedandHeadingConfidence"/>

element dsrc:ValueList/speedConfidence

diagram
type	dsrc:SpeedConfidence
properties	isRef  0 content  simple
source	<xs:element name="speedConfidence" type="SpeedConfidence"/>

element dsrc:ValueList/stabilityControlStatus

diagram
type	dsrc:StabilityControlStatus
properties	isRef  0 content  simple
source	<xs:element name="stabilityControlStatus" type="StabilityControlStatus"/>

element dsrc:ValueList/stdTagList

diagram
type	dsrc:StdTagList
properties	isRef  0 content  simple
source	<xs:element name="stdTagList" type="StdTagList"/>

element dsrc:ValueList/steeringWheelAngle

diagram
type	dsrc:SteeringWheelAngle
properties	isRef  0 content  simple
facets	minInclusive  -32767 maxInclusive  32768
source	<xs:element name="steeringWheelAngle" type="SteeringWheelAngle"/>

element dsrc:ValueList/steeringWheelAngleConfidence

diagram
type	dsrc:SteeringWheelAngleConfidence
properties	isRef  0 content  simple
source	<xs:element name="steeringWheelAngleConfidence" type="SteeringWheelAngleConfidence"/>

element dsrc:ValueList/steeringWheelAngleRateOfChange

diagram
type	dsrc:SteeringWheelAngleRateOfChange
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="steeringWheelAngleRateOfChange" type="SteeringWheelAngleRateOfChange"/>

element dsrc:ValueList/sunSensor

diagram
type	dsrc:SunSensor
properties	isRef  0 content  simple
facets	maxInclusive  1000
source	<xs:element name="sunSensor" type="SunSensor"/>

element dsrc:ValueList/temporaryID

diagram
type	dsrc:TemporaryID
properties	isRef  0 content  complex
facets	length  8
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="temporaryID" type="TemporaryID"/>

element dsrc:ValueList/throttlePosition

diagram
type	dsrc:ThrottlePosition
properties	isRef  0 content  simple
facets	maxInclusive  200
source	<xs:element name="throttlePosition" type="ThrottlePosition"/>

element dsrc:ValueList/throttleConfidence

diagram
type	dsrc:ThrottleConfidence
properties	isRef  0 content  simple
source	<xs:element name="throttleConfidence" type="ThrottleConfidence"/>

element dsrc:ValueList/timeConfidence

diagram
type	dsrc:TimeConfidence
properties	isRef  0 content  simple
source	<xs:element name="timeConfidence" type="TimeConfidence"/>

element dsrc:ValueList/tractionControlState

diagram
type	dsrc:TractionControlState
properties	isRef  0 content  simple
source	<xs:element name="tractionControlState" type="TractionControlState"/>

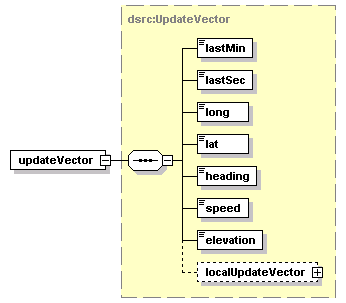

element dsrc:ValueList/updateVector

diagram
type	dsrc:UpdateVector
properties	isRef  0 content  complex
children	lastMin lastSec long lat heading speed elevation localUpdateVector
source	<xs:element name="updateVector" type="UpdateVector"/>

element dsrc:ValueList/vehicleHeight

diagram
type	dsrc:VehicleHeight
properties	isRef  0 content  simple
source	<xs:element name="vehicleHeight" type="VehicleHeight"/>

element dsrc:ValueList/vehicleLength

diagram
type	dsrc:VehicleLength
properties	isRef  0 content  simple
facets	maxInclusive  16383
source	<xs:element name="vehicleLength" type="VehicleLength"/>

element dsrc:ValueList/vehicleMass

diagram
type	dsrc:VehicleMass
properties	isRef  0 content  simple
source	<xs:element name="vehicleMass" type="VehicleMass"/>

element dsrc:ValueList/vehicleSize

diagram
type	dsrc:VehicleSize
properties	isRef  0 content  complex
children	width length
source	<xs:element name="vehicleSize" type="VehicleSize"/>

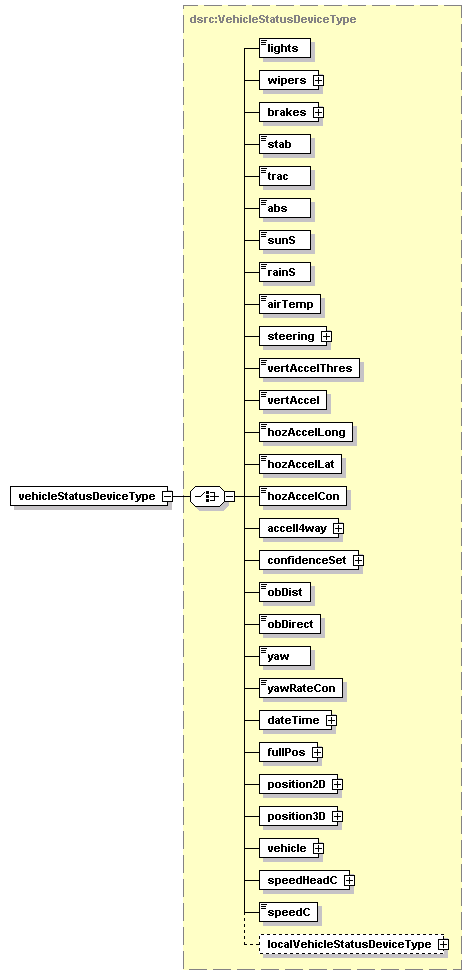

element dsrc:ValueList/vehicleStatusDeviceType

diagram
type	dsrc:VehicleStatusDeviceType
properties	isRef  0 content  complex
children	lights wipers brakes stab trac abs sunS rainS airTemp steering vertAccelThres vertAccel hozAccelLong hozAccelLat hozAccelCon accell4way confidenceSet obDist obDirect yaw yawRateCon dateTime fullPos position2D position3D vehicle speedHeadC speedC localVehicleStatusDeviceType
source	<xs:element name="vehicleStatusDeviceType" type="VehicleStatusDeviceType"/>

element dsrc:ValueList/vehicleType

diagram
type	dsrc:VehicleType
properties	isRef  0 content  simple
source	<xs:element name="vehicleType" type="VehicleType"/>

element dsrc:ValueList/vehicleWidth

diagram
type	dsrc:VehicleWidth
properties	isRef  0 content  simple
facets	maxInclusive  1023
source	<xs:element name="vehicleWidth" type="VehicleWidth"/>

element dsrc:ValueList/verticalAcceleration

diagram
type	dsrc:VerticalAcceleration
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="verticalAcceleration" type="VerticalAcceleration"/>

element dsrc:ValueList/verticalAccelerationThreshold

diagram
type	dsrc:VerticalAccelerationThreshold
properties	isRef  0 content  simple
source	<xs:element name="verticalAccelerationThreshold" type="VerticalAccelerationThreshold"/>

element dsrc:ValueList/wiperRate

diagram
type	dsrc:WiperRate
properties	isRef  0 content  simple
source	<xs:element name="wiperRate" type="WiperRate"/>

element dsrc:ValueList/wiperStatus

diagram
type	dsrc:WiperStatus
properties	isRef  0 content  simple
source	<xs:element name="wiperStatus" type="WiperStatus"/>

element dsrc:ValueList/yawRate

diagram
type	dsrc:YawRate
properties	isRef  0 content  simple
source	<xs:element name="yawRate" type="YawRate"/>

element dsrc:ValueList/yawRateConfidence

diagram
type	dsrc:YawRateConfidence
properties	isRef  0 content  simple
source	<xs:element name="yawRateConfidence" type="YawRateConfidence"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
