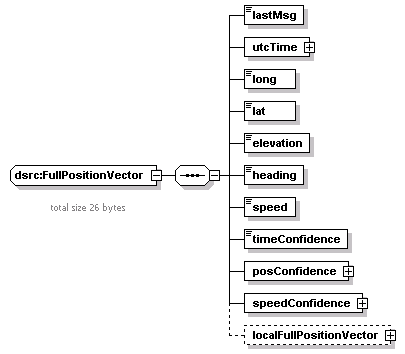

complexType dsrc:FullPositionVector
diagram
namespace http://www.DSRC-Draft-02-00-15
children lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
used by
elements Mayday-Data-Set/dsrc dsrc:VehicleStatusDeviceType/fullPos dsrc:ValueList/fullPositionVector Mayday-Data-Set/hist/hist-item Mayday-Data-Set/pos PastPositionReply/positions/position PositionReport/position Mayday-Data-Set/ppos Mayday-Data-Set/spos dsrc:ProbeVehicleData/startVector dsrc:Snapshot/thePosition
annotation
documentation

            total size 26 bytes

source <xs:complexType name="FullPositionVector">
  <xs:annotation>
    <xs:documentation>
            total size 26 bytes
         </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="lastMsg" type="DSecond"/>
    <!-- 2 bytes,  milli sec from last minute -->
    <xs:element name="utcTime" type="DFullTime"/>
    <!-- 6 bytes,  time with minute precision -->
    <xs:element name="long" type="Longitude"/>
    <!-- 4 bytes,  1/8th microdegree -->
    <xs:element name="lat" type="Latitude"/>
    <!-- 4 bytes,  1/8th microdegree -->
    <xs:element name="elevation" type="Elevation"/>
    <!-- 3 bytes -->
    <xs:element name="heading" type="Heading"/>
    <!-- 2 bytes -->
    <xs:element name="speed" type="Speed"/>
    <!-- 2 bytes -->
    <xs:element name="timeConfidence" type="TimeConfidence"/>
    <!-- 1 byte -->
    <xs:element name="posConfidence" type="PositionConfidenceSet"/>
    <!-- 1 byte -->
    <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>
    <!-- 1 byte -->
    <xs:element name="localFullPositionVector" type="local:FullPositionVector" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dsrc:FullPositionVector/lastMsg
diagram
type dsrc:DSecond
properties
isRef 0
content simple
source <xs:element name="lastMsg" type="DSecond"/>

element dsrc:FullPositionVector/utcTime
diagram
type dsrc:DFullTime
properties
isRef 0
content complex
children year month day hour minute
source <xs:element name="utcTime" type="DFullTime"/>

element dsrc:FullPositionVector/long
diagram
type dsrc:Longitude
properties
isRef 0
content simple
facets
minInclusive -1440000000
maxInclusive 1440000000
source <xs:element name="long" type="Longitude"/>

element dsrc:FullPositionVector/lat
diagram
type dsrc:Latitude
properties
isRef 0
content simple
facets
minInclusive -720000000
maxInclusive 720000000
source <xs:element name="lat" type="Latitude"/>

element dsrc:FullPositionVector/elevation
diagram
type dsrc:Elevation
properties
isRef 0
content simple
facets
maxInclusive 16777215
source <xs:element name="elevation" type="Elevation"/>

element dsrc:FullPositionVector/heading
diagram
type dsrc:Heading
properties
isRef 0
content simple
source <xs:element name="heading" type="Heading"/>

element dsrc:FullPositionVector/speed
diagram
type dsrc:Speed
properties
isRef 0
content simple
facets
minInclusive -32765
maxInclusive 32765
source <xs:element name="speed" type="Speed"/>

element dsrc:FullPositionVector/timeConfidence
diagram
type dsrc:TimeConfidence
properties
isRef 0
content simple
source <xs:element name="timeConfidence" type="TimeConfidence"/>

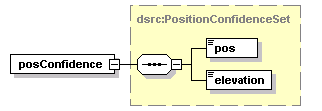

element dsrc:FullPositionVector/posConfidence
diagram
type dsrc:PositionConfidenceSet
properties
isRef 0
content complex
children pos elevation
source <xs:element name="posConfidence" type="PositionConfidenceSet"/>

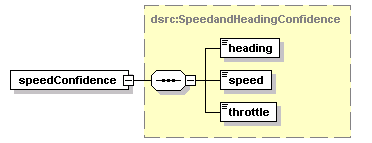

element dsrc:FullPositionVector/speedConfidence
diagram
type dsrc:SpeedandHeadingConfidence
properties
isRef 0
content complex
children heading speed throttle
source <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>

element dsrc:FullPositionVector/localFullPositionVector
diagram
type FullPositionVector
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localFullPositionVector" type="local:FullPositionVector" minOccurs="0"/>
