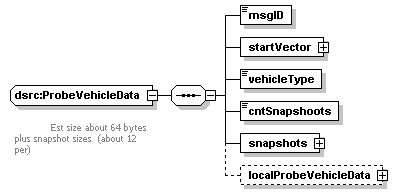

complexType dsrc:ProbeVehicleData
diagram
namespace http://www.DSRC-Draft-02-00-15
children msgID startVector vehicleType cntSnapshoots snapshots localProbeVehicleData
used by
element dsrc:probeVehicleData
annotation
documentation

            Est size about 64 bytes plus snapshot sizes  (about 12 per)

source <xs:complexType name="ProbeVehicleData">
  <xs:annotation>
    <xs:documentation>
            Est size about 64 bytes plus snapshot sizes  (about 12 per)
         </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <!-- App ID value,  1 byte -->
    <xs:element name="startVector" type="FullPositionVector"/>
    <!-- the space and time of
         transmission to the RSU -->
    <xs:element name="vehicleType" type="VehicleType"/>
    <!-- type of vehicle,  1 byte -->
    <xs:element name="cntSnapshoots">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:minInclusive value="1"/>
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- a count of how many snaphots
         type entires will follow -->
    <xs:element name="snapshots">
      <xs:complexType>
        <xs:sequence maxOccurs="32">
          <xs:element name="snapshot" type="Snapshot"/>
          <!-- a seq of name-value pairs along with the space and time of the first measurement set -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localProbeVehicleData" type="local:ProbeVehicleData" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element dsrc:ProbeVehicleData/msgID
diagram
type dsrc:DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

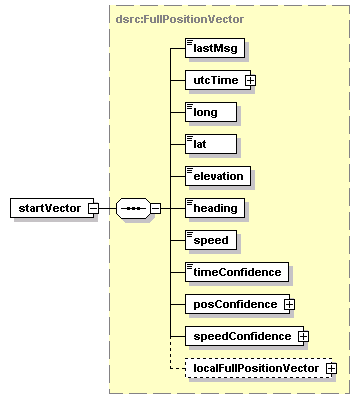

element dsrc:ProbeVehicleData/startVector
diagram
type dsrc:FullPositionVector
properties
isRef 0
content complex
children lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source <xs:element name="startVector" type="FullPositionVector"/>

element dsrc:ProbeVehicleData/vehicleType
diagram
type dsrc:VehicleType
properties
isRef 0
content simple
source <xs:element name="vehicleType" type="VehicleType"/>

element dsrc:ProbeVehicleData/cntSnapshoots
diagram
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 32
source <xs:element name="cntSnapshoots">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dsrc:ProbeVehicleData/snapshots
diagram
properties
isRef 0
content complex
children snapshot
source <xs:element name="snapshots">
  <xs:complexType>
    <xs:sequence maxOccurs="32">
      <xs:element name="snapshot" type="Snapshot"/>
      <!-- a seq of name-value pairs along with the space and time of the first measurement set -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

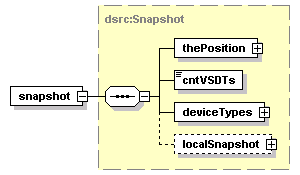

element dsrc:ProbeVehicleData/snapshots/snapshot
diagram
type dsrc:Snapshot
properties
isRef 0
content complex
children thePosition cntVSDTs deviceTypes localSnapshot
source <xs:element name="snapshot" type="Snapshot"/>

element dsrc:ProbeVehicleData/localProbeVehicleData
diagram
type ProbeVehicleData
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localProbeVehicleData" type="local:ProbeVehicleData" minOccurs="0"/>
