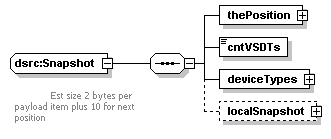

complexType dsrc:Snapshot
diagram
namespace http://www.DSRC-Draft-02-00-15
children thePosition cntVSDTs deviceTypes localSnapshot
used by
elements dsrc:ProbeVehicleData/snapshots/snapshot dsrc:ValueList/snapshot
annotation
documentation

            Est size 2 bytes per payload item plus 10 for next position

source <xs:complexType name="Snapshot">
  <xs:annotation>
    <xs:documentation>
            Est size 2 bytes per payload item plus 10 for next position
         </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="thePosition" type="FullPositionVector"/>
    <!-- data of the position and speed, -->
    <xs:element name="cntVSDTs">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="31"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- a count of how many vehicle
         status device type entires
         will follow,   1 byte -->
    <xs:element name="deviceTypes">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="31">
          <xs:element name="deviceType" type="SnapshotItem"/>
          <!-- a seq of name-value pairs which me may encode in the style as other msgs,  need to see -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSnapshot" type="local:Snapshot" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

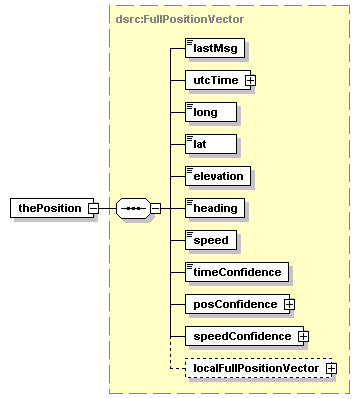

element dsrc:Snapshot/thePosition
diagram
type dsrc:FullPositionVector
properties
isRef 0
content complex
children lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source <xs:element name="thePosition" type="FullPositionVector"/>

element dsrc:Snapshot/cntVSDTs
diagram
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 31
source <xs:element name="cntVSDTs">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="31"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element dsrc:Snapshot/deviceTypes
diagram
properties
isRef 0
content complex
children deviceType
source <xs:element name="deviceTypes">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="31">
      <xs:element name="deviceType" type="SnapshotItem"/>
      <!-- a seq of name-value pairs which me may encode in the style as other msgs,  need to see -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element dsrc:Snapshot/deviceTypes/deviceType
diagram
type dsrc:SnapshotItem
properties
isRef 0
content complex
children item value
source <xs:element name="deviceType" type="SnapshotItem"/>

element dsrc:Snapshot/localSnapshot
diagram
type Snapshot
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSnapshot" type="local:Snapshot" minOccurs="0"/>
