complexType dsrc:SnapshotItem

diagram
namespace	http://www.DSRC-Draft-02-00-15
children	item value
used by	element  dsrc:Snapshot/deviceTypes/deviceType
source	<xs:complexType name="SnapshotItem">   <xs:sequence>     <xs:element name="item" type="ValueList"/>     <xs:element name="value" type="VehicleStatusDeviceType"/>   </xs:sequence> </xs:complexType>

element dsrc:SnapshotItem/item

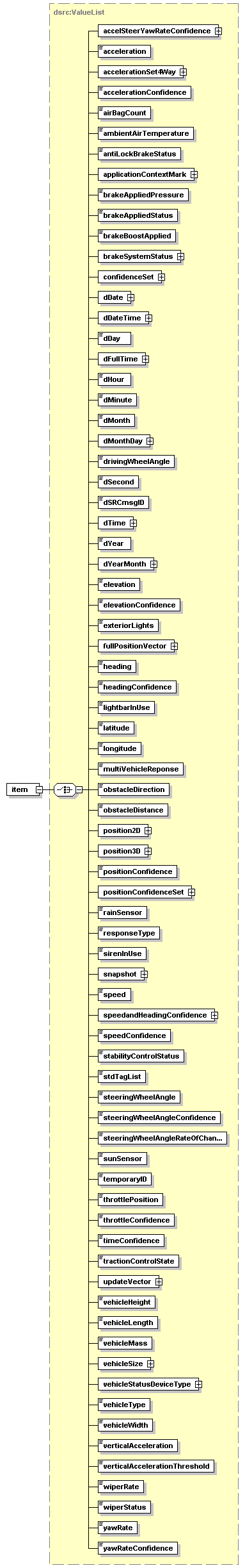

diagram
type	dsrc:ValueList
properties	isRef  0 content  complex
children	accelSteerYawRateConfidence acceleration accelerationSet4Way accelerationConfidence airBagCount ambientAirTemperature antiLockBrakeStatus applicationContextMark brakeAppliedPressure brakeAppliedStatus brakeBoostApplied brakeSystemStatus confidenceSet dDate dDateTime dDay dFullTime dHour dMinute dMonth dMonthDay drivingWheelAngle dSecond dSRCmsgID dTime dYear dYearMonth elevation elevationConfidence exteriorLights fullPositionVector heading headingConfidence lightbarInUse latitude longitude multiVehicleReponse obstacleDirection obstacleDistance position2D position3D positionConfidence positionConfidenceSet rainSensor responseType sirenInUse snapshot speed speedandHeadingConfidence speedConfidence stabilityControlStatus stdTagList steeringWheelAngle steeringWheelAngleConfidence steeringWheelAngleRateOfChange sunSensor temporaryID throttlePosition throttleConfidence timeConfidence tractionControlState updateVector vehicleHeight vehicleLength vehicleMass vehicleSize vehicleStatusDeviceType vehicleType vehicleWidth verticalAcceleration verticalAccelerationThreshold wiperRate wiperStatus yawRate yawRateConfidence
source	<xs:element name="item" type="ValueList"/>

element dsrc:SnapshotItem/value

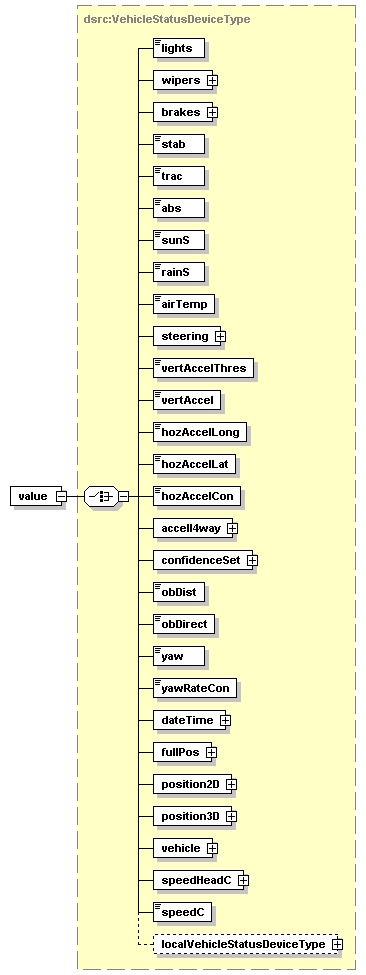

diagram
type	dsrc:VehicleStatusDeviceType
properties	isRef  0 content  complex
children	lights wipers brakes stab trac abs sunS rainS airTemp steering vertAccelThres vertAccel hozAccelLong hozAccelLat hozAccelCon accell4way confidenceSet obDist obDirect yaw yawRateCon dateTime fullPos position2D position3D vehicle speedHeadC speedC localVehicleStatusDeviceType
source	<xs:element name="value" type="VehicleStatusDeviceType"/>
