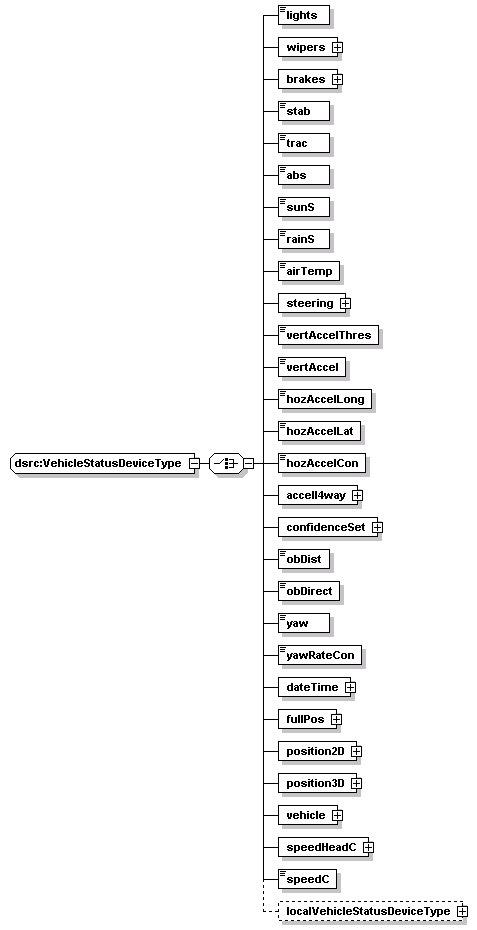

complexType dsrc:VehicleStatusDeviceType

diagram
namespace	http://www.DSRC-Draft-02-00-15
children	lights wipers brakes stab trac abs sunS rainS airTemp steering vertAccelThres vertAccel hozAccelLong hozAccelLat hozAccelCon accell4way confidenceSet obDist obDirect yaw yawRateCon dateTime fullPos position2D position3D vehicle speedHeadC speedC localVehicleStatusDeviceType
used by	elements  dsrc:SnapshotItem/value dsrc:ValueList/vehicleStatusDeviceType
source	<xs:complexType name="VehicleStatusDeviceType">   <xs:choice>     <xs:element name="lights" type="ExteriorLights"/>     <!-- Exterior Lights -->     <xs:element name="wipers">       <xs:complexType>         <xs:sequence>           <xs:element name="status" type="WiperStatus"/>           <xs:element name="rate" type="WiperRate"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <!-- Wipers -->     <xs:element name="brakes">       <xs:complexType>         <xs:sequence>           <xs:element name="status" type="BrakeSystemStatus"/>           <xs:element name="pressure" type="BrakeAppliedPressure"/>           <xs:element name="boost" type="BrakeBoostApplied"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <!-- Brake Applied -->     <xs:element name="stab" type="StabilityControlStatus"/>     <!-- Stability Control -->     <xs:element name="trac" type="TractionControlState"/>     <!-- Traction Control -->     <xs:element name="abs" type="AntiLockBrakeStatus"/>     <!-- Anti-Lock Brakes -->     <xs:element name="sunS" type="SunSensor"/>     <!-- Sun Sensor -->     <xs:element name="rainS" type="RainSensor"/>     <!-- Rain Sensor -->     <xs:element name="airTemp" type="AmbientAirTemperature"/>     <!-- Air Temperature -->     <xs:element name="steering">       <xs:complexType>         <xs:sequence>           <xs:element name="angle" type="SteeringWheelAngle"/>           <xs:element name="rate" type="SteeringWheelAngleRateOfChange"/>           <xs:element name="wheels" type="DrivingWheelAngle"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="vertAccelThres" type="VerticalAccelerationThreshold"/>     <!-- Wheel that Exceeded the -->     <xs:element name="vertAccel" type="VerticalAcceleration"/>     <!-- Vertical g Force Value          we do not have a DE for          vert Confidence -->     <xs:element name="hozAccelLong" type="Acceleration"/>     <!-- Longitudinal Acceleration -->     <xs:element name="hozAccelLat" type="Acceleration"/>     <!-- Lateral Acceleration -->     <xs:element name="hozAccelCon" type="AccelerationConfidence"/>     <!-- Acceleration Confidence -->     <xs:element name="accell4way" type="AccelerationSet4Way"/>     <xs:element name="confidenceSet" type="ConfidenceSet"/>     <xs:element name="obDist" type="ObstacleDistance"/>     <!-- Obstacle Distance -->     <xs:element name="obDirect" type="ObstacleDirection"/>     <!-- Obstacle Direction -->     <xs:element name="yaw" type="YawRate"/>     <!-- Yaw Rate -->     <xs:element name="yawRateCon" type="YawRateConfidence"/>     <!-- Yaw Rate Confidence -->     <xs:element name="dateTime" type="DDateTime"/>     <!-- complete time -->     <xs:element name="fullPos" type="FullPositionVector"/>     <!-- complete set of time and          position,  speed,  heading -->     <xs:element name="position2D" type="Position2D"/>     <!-- lat,  long -->     <xs:element name="position3D" type="Position3D"/>     <!-- lat,  long,  elevation -->     <xs:element name="vehicle">       <xs:complexType>         <xs:sequence>           <xs:element name="height" type="VehicleHeight"/>           <xs:element name="mass" type="VehicleMass"/>           <xs:element name="type" type="VehicleType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="speedHeadC" type="SpeedandHeadingConfidence"/>     <xs:element name="speedC" type="SpeedConfidence"/>     <!-- Note for drafting: Can add other items here if suggstested -->     <xs:element name="localVehicleStatusDeviceType" type="local:VehicleStatusDeviceType" minOccurs="0"/>   </xs:choice> </xs:complexType>

element dsrc:VehicleStatusDeviceType/lights

diagram
type	dsrc:ExteriorLights
properties	isRef  0 content  simple
source	<xs:element name="lights" type="ExteriorLights"/>

element dsrc:VehicleStatusDeviceType/wipers

diagram
properties	isRef  0 content  complex
children	status rate
source	<xs:element name="wipers">   <xs:complexType>     <xs:sequence>       <xs:element name="status" type="WiperStatus"/>       <xs:element name="rate" type="WiperRate"/>     </xs:sequence>   </xs:complexType> </xs:element>

element dsrc:VehicleStatusDeviceType/wipers/status

diagram
type	dsrc:WiperStatus
properties	isRef  0 content  simple
source	<xs:element name="status" type="WiperStatus"/>

element dsrc:VehicleStatusDeviceType/wipers/rate

diagram
type	dsrc:WiperRate
properties	isRef  0 content  simple
source	<xs:element name="rate" type="WiperRate"/>

element dsrc:VehicleStatusDeviceType/brakes

diagram
properties	isRef  0 content  complex
children	status pressure boost
source	<xs:element name="brakes">   <xs:complexType>     <xs:sequence>       <xs:element name="status" type="BrakeSystemStatus"/>       <xs:element name="pressure" type="BrakeAppliedPressure"/>       <xs:element name="boost" type="BrakeBoostApplied"/>     </xs:sequence>   </xs:complexType> </xs:element>

element dsrc:VehicleStatusDeviceType/brakes/status

diagram
type	dsrc:BrakeSystemStatus
properties	isRef  0 content  complex
children	wheelBrakes traction abs
source	<xs:element name="status" type="BrakeSystemStatus"/>

element dsrc:VehicleStatusDeviceType/brakes/pressure

diagram
type	dsrc:BrakeAppliedPressure
properties	isRef  0 content  simple
source	<xs:element name="pressure" type="BrakeAppliedPressure"/>

element dsrc:VehicleStatusDeviceType/brakes/boost

diagram
type	dsrc:BrakeBoostApplied
properties	isRef  0 content  simple
source	<xs:element name="boost" type="BrakeBoostApplied"/>

element dsrc:VehicleStatusDeviceType/stab

diagram
type	dsrc:StabilityControlStatus
properties	isRef  0 content  simple
source	<xs:element name="stab" type="StabilityControlStatus"/>

element dsrc:VehicleStatusDeviceType/trac

diagram
type	dsrc:TractionControlState
properties	isRef  0 content  simple
source	<xs:element name="trac" type="TractionControlState"/>

element dsrc:VehicleStatusDeviceType/abs

diagram
type	dsrc:AntiLockBrakeStatus
properties	isRef  0 content  simple
source	<xs:element name="abs" type="AntiLockBrakeStatus"/>

element dsrc:VehicleStatusDeviceType/sunS

diagram
type	dsrc:SunSensor
properties	isRef  0 content  simple
facets	maxInclusive  1000
source	<xs:element name="sunS" type="SunSensor"/>

element dsrc:VehicleStatusDeviceType/rainS

diagram
type	dsrc:RainSensor
properties	isRef  0 content  simple
source	<xs:element name="rainS" type="RainSensor"/>

element dsrc:VehicleStatusDeviceType/airTemp

diagram
type	dsrc:AmbientAirTemperature
properties	isRef  0 content  simple
facets	maxInclusive  191
source	<xs:element name="airTemp" type="AmbientAirTemperature"/>

element dsrc:VehicleStatusDeviceType/steering

diagram
properties	isRef  0 content  complex
children	angle rate wheels
source	<xs:element name="steering">   <xs:complexType>     <xs:sequence>       <xs:element name="angle" type="SteeringWheelAngle"/>       <xs:element name="rate" type="SteeringWheelAngleRateOfChange"/>       <xs:element name="wheels" type="DrivingWheelAngle"/>     </xs:sequence>   </xs:complexType> </xs:element>

element dsrc:VehicleStatusDeviceType/steering/angle

diagram
type	dsrc:SteeringWheelAngle
properties	isRef  0 content  simple
facets	minInclusive  -32767 maxInclusive  32768
source	<xs:element name="angle" type="SteeringWheelAngle"/>

element dsrc:VehicleStatusDeviceType/steering/rate

diagram
type	dsrc:SteeringWheelAngleRateOfChange
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="rate" type="SteeringWheelAngleRateOfChange"/>

element dsrc:VehicleStatusDeviceType/steering/wheels

diagram
type	dsrc:DrivingWheelAngle
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="wheels" type="DrivingWheelAngle"/>

element dsrc:VehicleStatusDeviceType/vertAccelThres

diagram
type	dsrc:VerticalAccelerationThreshold
properties	isRef  0 content  simple
source	<xs:element name="vertAccelThres" type="VerticalAccelerationThreshold"/>

element dsrc:VehicleStatusDeviceType/vertAccel

diagram
type	dsrc:VerticalAcceleration
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="vertAccel" type="VerticalAcceleration"/>

element dsrc:VehicleStatusDeviceType/hozAccelLong

diagram
type	dsrc:Acceleration
properties	isRef  0 content  simple
facets	minInclusive  -2000 maxInclusive  2000
source	<xs:element name="hozAccelLong" type="Acceleration"/>

element dsrc:VehicleStatusDeviceType/hozAccelLat

diagram
type	dsrc:Acceleration
properties	isRef  0 content  simple
facets	minInclusive  -2000 maxInclusive  2000
source	<xs:element name="hozAccelLat" type="Acceleration"/>

element dsrc:VehicleStatusDeviceType/hozAccelCon

diagram
type	dsrc:AccelerationConfidence
properties	isRef  0 content  simple
source	<xs:element name="hozAccelCon" type="AccelerationConfidence"/>

element dsrc:VehicleStatusDeviceType/accell4way

diagram
type	dsrc:AccelerationSet4Way
properties	isRef  0 content  complex
children	long lat vert yaw
source	<xs:element name="accell4way" type="AccelerationSet4Way"/>

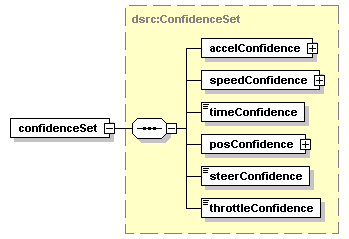

element dsrc:VehicleStatusDeviceType/confidenceSet

diagram
type	dsrc:ConfidenceSet
properties	isRef  0 content  complex
children	accelConfidence speedConfidence timeConfidence posConfidence steerConfidence throttleConfidence
source	<xs:element name="confidenceSet" type="ConfidenceSet"/>

element dsrc:VehicleStatusDeviceType/obDist

diagram
type	dsrc:ObstacleDistance
properties	isRef  0 content  simple
facets	maxInclusive  999
source	<xs:element name="obDist" type="ObstacleDistance"/>

element dsrc:VehicleStatusDeviceType/obDirect

diagram
type	dsrc:ObstacleDirection
properties	isRef  0 content  simple
source	<xs:element name="obDirect" type="ObstacleDirection"/>

element dsrc:VehicleStatusDeviceType/yaw

diagram
type	dsrc:YawRate
properties	isRef  0 content  simple
source	<xs:element name="yaw" type="YawRate"/>

element dsrc:VehicleStatusDeviceType/yawRateCon

diagram
type	dsrc:YawRateConfidence
properties	isRef  0 content  simple
source	<xs:element name="yawRateCon" type="YawRateConfidence"/>

element dsrc:VehicleStatusDeviceType/dateTime

diagram
type	dsrc:DDateTime
properties	isRef  0 content  complex
children	year month day hour minute second
source	<xs:element name="dateTime" type="DDateTime"/>

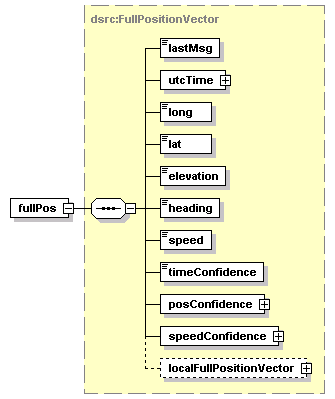

element dsrc:VehicleStatusDeviceType/fullPos

diagram
type	dsrc:FullPositionVector
properties	isRef  0 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="fullPos" type="FullPositionVector"/>

element dsrc:VehicleStatusDeviceType/position2D

diagram
type	dsrc:Position2D
properties	isRef  0 content  complex
children	lat long
source	<xs:element name="position2D" type="Position2D"/>

element dsrc:VehicleStatusDeviceType/position3D

diagram
type	dsrc:Position3D
properties	isRef  0 content  complex
children	lat long elevation
source	<xs:element name="position3D" type="Position3D"/>

element dsrc:VehicleStatusDeviceType/vehicle

diagram
properties	isRef  0 content  complex
children	height mass type
source	<xs:element name="vehicle">   <xs:complexType>     <xs:sequence>       <xs:element name="height" type="VehicleHeight"/>       <xs:element name="mass" type="VehicleMass"/>       <xs:element name="type" type="VehicleType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element dsrc:VehicleStatusDeviceType/vehicle/height

diagram
type	dsrc:VehicleHeight
properties	isRef  0 content  simple
source	<xs:element name="height" type="VehicleHeight"/>

element dsrc:VehicleStatusDeviceType/vehicle/mass

diagram
type	dsrc:VehicleMass
properties	isRef  0 content  simple
source	<xs:element name="mass" type="VehicleMass"/>

element dsrc:VehicleStatusDeviceType/vehicle/type

diagram
type	dsrc:VehicleType
properties	isRef  0 content  simple
source	<xs:element name="type" type="VehicleType"/>

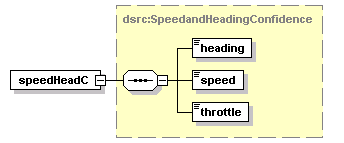

element dsrc:VehicleStatusDeviceType/speedHeadC

diagram
type	dsrc:SpeedandHeadingConfidence
properties	isRef  0 content  complex
children	heading speed throttle
source	<xs:element name="speedHeadC" type="SpeedandHeadingConfidence"/>

element dsrc:VehicleStatusDeviceType/speedC

diagram
type	dsrc:SpeedConfidence
properties	isRef  0 content  simple
source	<xs:element name="speedC" type="SpeedConfidence"/>

element dsrc:VehicleStatusDeviceType/localVehicleStatusDeviceType

diagram
type	VehicleStatusDeviceType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localVehicleStatusDeviceType" type="local:VehicleStatusDeviceType" minOccurs="0"/>
