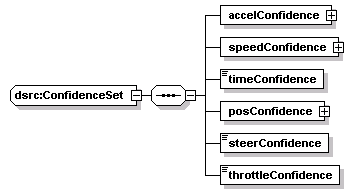

complexType dsrc:ConfidenceSet

diagram
namespace	http://www.DSRC-Draft-02-00-15
children	accelConfidence speedConfidence timeConfidence posConfidence steerConfidence throttleConfidence
used by	elements  dsrc:ValueList/confidenceSet dsrc:VehicleStatusDeviceType/confidenceSet
source	<xs:complexType name="ConfidenceSet">   <xs:sequence>     <xs:element name="accelConfidence" type="AccelSteerYawRateConfidence"/>     <!-- contains lat,  long,  vert,  and yaw -->     <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>     <xs:element name="timeConfidence" type="TimeConfidence"/>     <xs:element name="posConfidence" type="PositionConfidenceSet"/>     <xs:element name="steerConfidence" type="SteeringWheelAngleConfidence"/>     <xs:element name="throttleConfidence" type="ThrottleConfidence"/>   </xs:sequence> </xs:complexType>

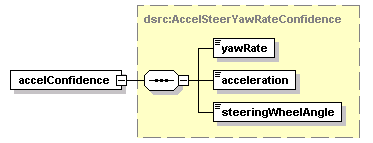

element dsrc:ConfidenceSet/accelConfidence

diagram
type	dsrc:AccelSteerYawRateConfidence
properties	isRef  0 content  complex
children	yawRate acceleration steeringWheelAngle
source	<xs:element name="accelConfidence" type="AccelSteerYawRateConfidence"/>

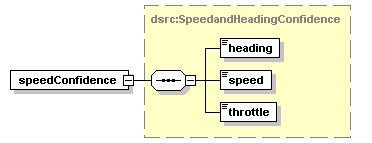

element dsrc:ConfidenceSet/speedConfidence

diagram
type	dsrc:SpeedandHeadingConfidence
properties	isRef  0 content  complex
children	heading speed throttle
source	<xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>

element dsrc:ConfidenceSet/timeConfidence

diagram
type	dsrc:TimeConfidence
properties	isRef  0 content  simple
source	<xs:element name="timeConfidence" type="TimeConfidence"/>

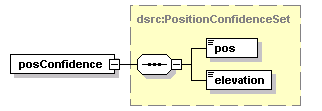

element dsrc:ConfidenceSet/posConfidence

diagram
type	dsrc:PositionConfidenceSet
properties	isRef  0 content  complex
children	pos elevation
source	<xs:element name="posConfidence" type="PositionConfidenceSet"/>

element dsrc:ConfidenceSet/steerConfidence

diagram
type	dsrc:SteeringWheelAngleConfidence
properties	isRef  0 content  simple
source	<xs:element name="steerConfidence" type="SteeringWheelAngleConfidence"/>

element dsrc:ConfidenceSet/throttleConfidence

diagram
type	dsrc:ThrottleConfidence
properties	isRef  0 content  simple
source	<xs:element name="throttleConfidence" type="ThrottleConfidence"/>
