complexType dsrc:AccelerationSet4Way

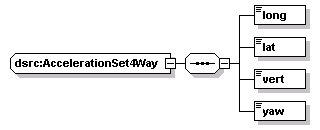

diagram
namespace	http://www.DSRC-Draft-02-00-15
children	long lat vert yaw
used by	elements  dsrc:ValueList/accelerationSet4Way dsrc:VehicleStatusDeviceType/accell4way dsrc:BasicSafetyMessage/accelSet
source	<xs:complexType name="AccelerationSet4Way">   <xs:sequence>     <xs:element name="long" type="Acceleration"/>     <!-- Along the Vehicle Longitudinal axis -->     <xs:element name="lat" type="Acceleration"/>     <!-- Along the Vehicle Lateral axis -->     <xs:element name="vert" type="VerticalAcceleration"/>     <!-- Along the Vehicle Vertical axis -->     <xs:element name="yaw" type="YawRate"/>   </xs:sequence> </xs:complexType>

element dsrc:AccelerationSet4Way/long

diagram
type	dsrc:Acceleration
properties	isRef  0 content  simple
facets	minInclusive  -2000 maxInclusive  2000
source	<xs:element name="long" type="Acceleration"/>

element dsrc:AccelerationSet4Way/lat

diagram
type	dsrc:Acceleration
properties	isRef  0 content  simple
facets	minInclusive  -2000 maxInclusive  2000
source	<xs:element name="lat" type="Acceleration"/>

element dsrc:AccelerationSet4Way/vert

diagram
type	dsrc:VerticalAcceleration
properties	isRef  0 content  simple
facets	minInclusive  -127
source	<xs:element name="vert" type="VerticalAcceleration"/>

element dsrc:AccelerationSet4Way/yaw

diagram
type	dsrc:YawRate
properties	isRef  0 content  simple
source	<xs:element name="yaw" type="YawRate"/>
