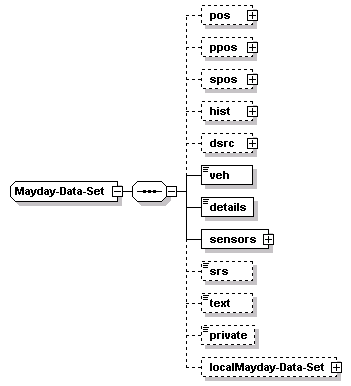

complexType Mayday-Data-Set

diagram
namespace	http://www.IM-Draft-03-00-44a
children	pos ppos spos hist dsrc veh details sensors srs text private localMayday-Data-Set
used by	element  VehMAYDAY/mayDay
source	<xs:complexType name="Mayday-Data-Set">   <xs:sequence>     <!-- note that SAE J2313,  as published,  uses an underscore,  which          should be replaced with a &quot;-&quot; for proper ASN1 notation -->     <xs:element name="pos" type="dsrc:FullPositionVector" minOccurs="0"/>     <!-- current pos -->     <xs:element name="ppos" type="dsrc:FullPositionVector" minOccurs="0"/>     <!-- Prior_Position -->     <xs:element name="spos" type="dsrc:FullPositionVector" minOccurs="0"/>     <!-- Start_Position -->     <xs:element name="hist" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="32">           <xs:element name="hist-item" type="dsrc:FullPositionVector"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="dsrc" type="dsrc:FullPositionVector" minOccurs="0"/>     <!-- Last_DSRC          DSRC = dedicated short range comm -->     <xs:element name="veh" type="atis:NONE"/>     <!-- [SAE:J2313:Vehicle_Info]          VIN,  ID,  mobile phone electronic serial number,          occupant sensors present -->     <xs:element name="details" type="atis:NONE"/>     <!-- [SAE:J2313:Vehicle_Details]          further information about vehicle appearance -->     <xs:element name="sensors">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="16">           <xs:element name="sensor" type="atis:NONE"/>           <!-- [SAE:J2313:Vehicle_Sensor_Info] lists of triples: sensor ID,  status,  data -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="srs" type="atis:NONE" minOccurs="0"/>     <!-- [SAE:J2313:Vehicle_SRS]          SRS = Safety Restraint System -->     <xs:element name="text" type="FreeText" minOccurs="0"/>     <xs:element name="private" type="atis:NONE" minOccurs="0"/>     <!-- [SAE:J2313:Proprietary_Info] -->     <xs:element name="localMayday-Data-Set" type="local:Mayday-Data-Set" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element Mayday-Data-Set/pos

diagram
type	dsrc:FullPositionVector
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="pos" type="dsrc:FullPositionVector" minOccurs="0"/>

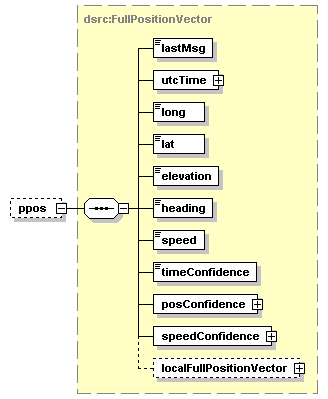

element Mayday-Data-Set/ppos

diagram
type	dsrc:FullPositionVector
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="ppos" type="dsrc:FullPositionVector" minOccurs="0"/>

element Mayday-Data-Set/spos

diagram
type	dsrc:FullPositionVector
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="spos" type="dsrc:FullPositionVector" minOccurs="0"/>

element Mayday-Data-Set/hist

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	hist-item
source	<xs:element name="hist" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="32">       <xs:element name="hist-item" type="dsrc:FullPositionVector"/>     </xs:sequence>   </xs:complexType> </xs:element>

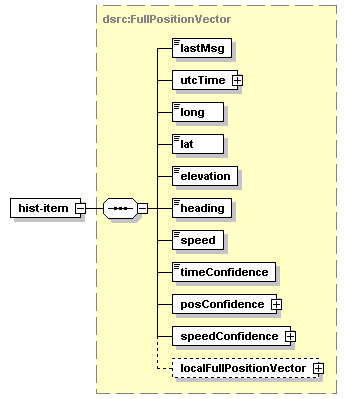

element Mayday-Data-Set/hist/hist-item

diagram
type	dsrc:FullPositionVector
properties	isRef  0 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="hist-item" type="dsrc:FullPositionVector"/>

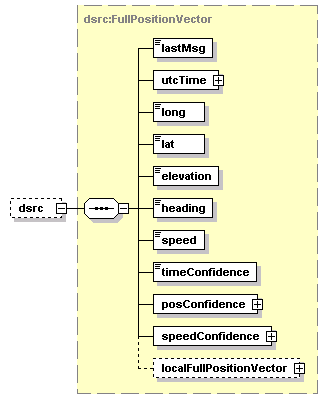

element Mayday-Data-Set/dsrc

diagram
type	dsrc:FullPositionVector
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	lastMsg utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source	<xs:element name="dsrc" type="dsrc:FullPositionVector" minOccurs="0"/>

element Mayday-Data-Set/veh

diagram
type	atis:NONE
properties	isRef  0 content  simple
source	<xs:element name="veh" type="atis:NONE"/>

element Mayday-Data-Set/details

diagram
type	atis:NONE
properties	isRef  0 content  simple
source	<xs:element name="details" type="atis:NONE"/>

element Mayday-Data-Set/sensors

diagram
properties	isRef  0 content  complex
children	sensor
source	<xs:element name="sensors">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="16">       <xs:element name="sensor" type="atis:NONE"/>       <!-- [SAE:J2313:Vehicle_Sensor_Info] lists of triples: sensor ID,  status,  data -->     </xs:sequence>   </xs:complexType> </xs:element>

element Mayday-Data-Set/sensors/sensor

diagram
type	atis:NONE
properties	isRef  0 content  simple
source	<xs:element name="sensor" type="atis:NONE"/>

element Mayday-Data-Set/srs

diagram
type	atis:NONE
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="srs" type="atis:NONE" minOccurs="0"/>

element Mayday-Data-Set/text

diagram
type	FreeText
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="text" type="FreeText" minOccurs="0"/>

element Mayday-Data-Set/private

diagram
type	atis:NONE
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="private" type="atis:NONE" minOccurs="0"/>

element Mayday-Data-Set/localMayday-Data-Set

diagram
type	local:Mayday-Data-Set
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localMayday-Data-Set" type="local:Mayday-Data-Set" minOccurs="0"/>
