complexType dsrc:UpdateVector

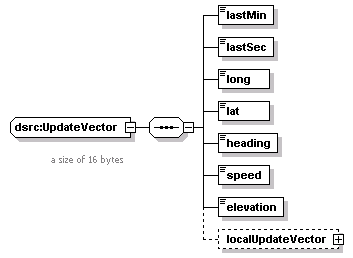

diagram
namespace	http://www.DSRC-Draft-02-00-15
children	lastMin lastSec long lat heading speed elevation localUpdateVector
used by	element  dsrc:ValueList/updateVector
annotation	documentation                    a size of 16 bytes
source	<xs:complexType name="UpdateVector">   <xs:annotation>     <xs:documentation>                   a size of 16 bytes          </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="lastMin" type="DMinute"/>     <!-- 1 byte -->     <xs:element name="lastSec" type="DSecond"/>     <!-- 2 bytes -->     <xs:element name="long" type="Longitude"/>     <!-- 4 bytes,  1/8th microdegree -->     <xs:element name="lat" type="Latitude"/>     <!-- 4 bytes,  1/8th microdegree -->     <xs:element name="heading" type="Heading"/>     <!-- 1 byte,  1.4 deg -->     <xs:element name="speed" type="Speed"/>     <!-- 1 byte -->     <xs:element name="elevation" type="Elevation"/>     <!-- 3 byte -->     <xs:element name="localUpdateVector" type="local:UpdateVector" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element dsrc:UpdateVector/lastMin

diagram
type	dsrc:DMinute
properties	isRef  0 content  simple
facets	maxInclusive  63
source	<xs:element name="lastMin" type="DMinute"/>

element dsrc:UpdateVector/lastSec

diagram
type	dsrc:DSecond
properties	isRef  0 content  simple
source	<xs:element name="lastSec" type="DSecond"/>

element dsrc:UpdateVector/long

diagram
type	dsrc:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -1440000000 maxInclusive  1440000000
source	<xs:element name="long" type="Longitude"/>

element dsrc:UpdateVector/lat

diagram
type	dsrc:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -720000000 maxInclusive  720000000
source	<xs:element name="lat" type="Latitude"/>

element dsrc:UpdateVector/heading

diagram
type	dsrc:Heading
properties	isRef  0 content  simple
source	<xs:element name="heading" type="Heading"/>

element dsrc:UpdateVector/speed

diagram
type	dsrc:Speed
properties	isRef  0 content  simple
facets	minInclusive  -32765 maxInclusive  32765
source	<xs:element name="speed" type="Speed"/>

element dsrc:UpdateVector/elevation

diagram
type	dsrc:Elevation
properties	isRef  0 content  simple
facets	maxInclusive  16777215
source	<xs:element name="elevation" type="Elevation"/>

element dsrc:UpdateVector/localUpdateVector

diagram
type	UpdateVector
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localUpdateVector" type="local:UpdateVector" minOccurs="0"/>
