Documentation for ATIS-Draft-03-00-79

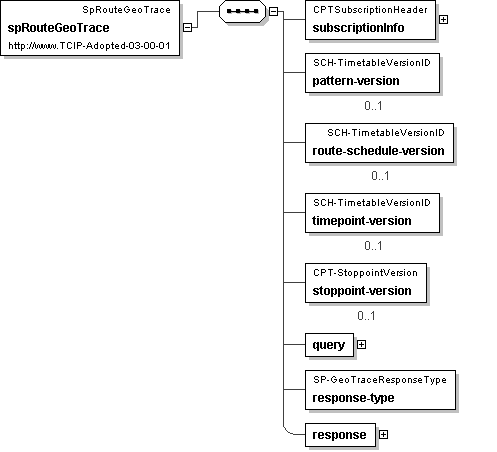

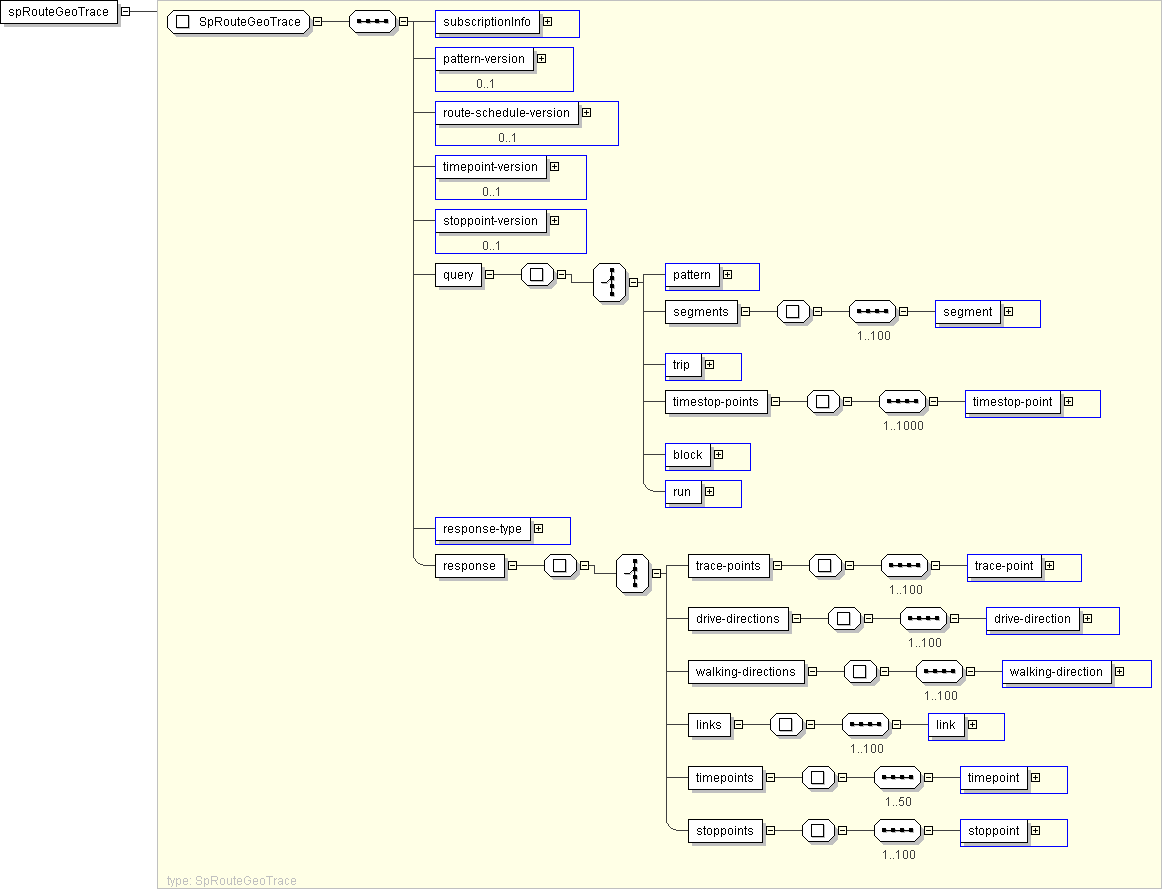

XML Instance Representation

<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]

<pattern-version> SCH-TimetableVersionID </pattern-version> [0..1]

<route-schedule-version> SCH-TimetableVersionID </route-schedule-version> [0..1]

<timepoint-version> SCH-TimetableVersionID </timepoint-version> [0..1]

<stoppoint-version> CPT-StoppointVersion </stoppoint-version> [0..1]

<query> [1]
Start Choice [1]

<pattern> SCHPatternIden </pattern> [1]

<segments> [1]
Start Sequence [1..100]

<segment> SCHPatternSegmentIden </segment> [1]

End Sequence
</segments>

<trip> SCHTripIden </trip> [1]

<timestop-points> [1]
Start Sequence [1..1000]

<timestop-point> SCHTimeStoppoint </timestop-point> [1]

End Sequence
</timestop-points>

<block> SCHBlockIden </block> [1]

<run> SCHRunIden </run> [1]

End Choice
</query>

<response-type> SP-GeoTraceResponseType </response-type> [1]

<response> [1]
Start Choice [1]

<trace-points> [1]
Start Sequence [1..100]

<trace-point> lrms:GeoLocation </trace-point> [1]

End Sequence
</trace-points>

<drive-directions> [1]
Start Sequence [1..100]

<drive-direction> atis:ManeuverInstruction </drive-direction> [1]

End Sequence
</drive-directions>

<walking-directions> [1]
Start Sequence [1..100]

<walking-direction> atis:ManeuverInstruction </walking-direction> [1]

End Sequence
</walking-directions>

<links> [1]
Start Sequence [1..100]

End Sequence
</links>

<timepoints> [1]
Start Sequence [1..50]

<timepoint> SCHTimepointIden </timepoint> [1]

End Sequence
</timepoints>

<stoppoints> [1]
Start Sequence [1..100]

<stoppoint> CPTStoppointIden </stoppoint> [1]

End Sequence
</stoppoints>

End Choice
</response>

</spRouteGeoTrace>
