Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SPLink
Used by (from the same schema document)	Complex Type SpRouteGeoTrace , Complex Type IMIncident , Complex Type SCHPatternSegment , Complex Type SPPoint
Abstract	no

XML Instance Representation

<...>

<name> lrms:Text-name255 </name> [0..1]

<info> lrms:StreetInfo </info> [0..1]

<begin-lat> lrms:Latitude </begin-lat> [1]

<begin-lon> lrms:Longitude </begin-lon> [1]

<end-lat> lrms:Latitude </end-lat> [1]

<end-lon> lrms:Longitude </end-lon> [1]

<dist-along> lrms:NormalizedDistance </dist-along> [0..1]

<side> lrms:Side </side> [1]

<points> [0..1]
Start Sequence [1..50]

<point> atis:ShapePoint </point> [1]

End Sequence
</points>

</...>

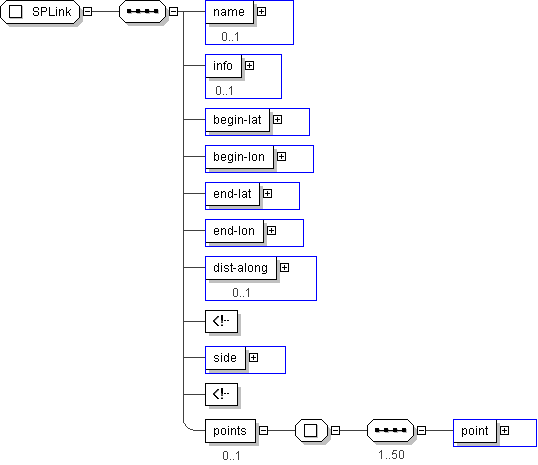

Schema Component Representation

<xs:complexType name="SPLink">

<xs:sequence>

<xs:element name="name" type=" lrms:Text-name255 " minOccurs="0"/>

<xs:element name="info" type=" lrms:StreetInfo " minOccurs="0"/>

<xs:element name="begin-lat" type=" lrms:Latitude "/>

<xs:element name="begin-lon" type=" lrms:Longitude "/>

<xs:element name="end-lat" type=" lrms:Latitude "/>

<xs:element name="end-lon" type=" lrms:Longitude "/>

<xs:element name="dist-along" type=" lrms:NormalizedDistance " minOccurs="0"/>

<-- only to specify a point along -->

<xs:element name="side" type=" lrms:Side "/>

<-- only to specify which side of the link an item is located. -->

<xs:element name="points" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="50">

<xs:element name="point" type=" atis:ShapePoint "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
