Element: spGIS

[Table of contents]

Name spGIS
Type SpGIS
Nillable no
Abstract no

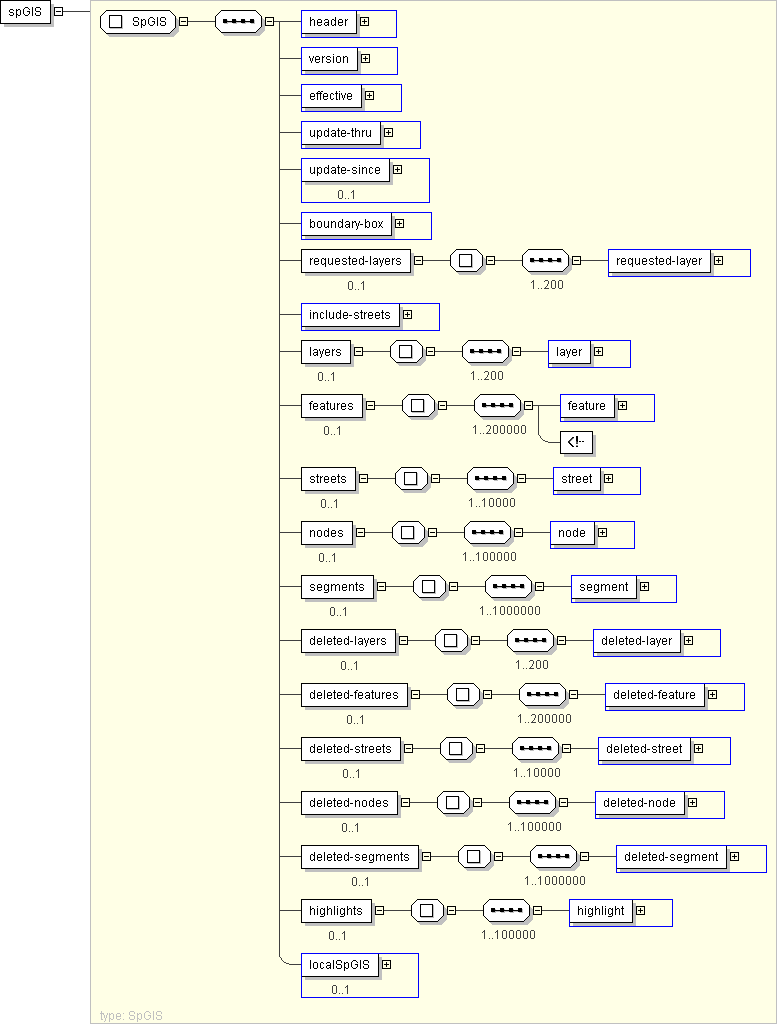

Logical Diagram
h-1421071056 h-953402869 h1112583012 h-1309532187 h974918176 h514243213 h-594188370 h-1973521021 h1020291353 h-2037588396 h-275671079 h1559177210 h-691060297 h1101482850
XML Instance Representation
<spGIS>
<header> CPTSubscriptionHeader </header> [1]
<version> CPT-FileVersion </version> [1]
<effective> CPT-DateTime </effective> [1]
<update-thru> CPT-DateTime </update-thru> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<boundary-box> SPPolygon </boundary-box> [1]
<requested-layers> [0..1]
Start Sequence [1..200]
<requested-layer> CPT-FeatureType </requested-layer> [1]
End Sequence
</requested-layers>
<include-streets> CPT-Boolean </include-streets> [1]
<layers> [0..1]
Start Sequence [1..200]
<layer> SPGISLayer </layer> [1]
End Sequence
</layers>
<features> [0..1]
Start Sequence [1..200000]
<feature> SPFeature </feature> [1]
End Sequence
</features>
<streets> [0..1]
Start Sequence [1..10000]
<street> lrms:StreetInfo </street> [1]
End Sequence
</streets>
<nodes> [0..1]
Start Sequence [1..100000]
<node> lrms:NodeAttribute </node> [1]
End Sequence
</nodes>
<segments> [0..1]
Start Sequence [1..1000000]
<segment> SPStreetSeg </segment> [1]
End Sequence
</segments>
<deleted-layers> [0..1]
Start Sequence [1..200]
<deleted-layer> CPT-FeatureType </deleted-layer> [1]
End Sequence
</deleted-layers>
<deleted-features> [0..1]
Start Sequence [1..200000]
<deleted-feature> SPFeature </deleted-feature> [1]
End Sequence
</deleted-features>
<deleted-streets> [0..1]
Start Sequence [1..10000]
<deleted-street> lrms:StreetInfo </deleted-street> [1]
End Sequence
</deleted-streets>
<deleted-nodes> [0..1]
Start Sequence [1..100000]
<deleted-node> lrms:NodeAttribute </deleted-node> [1]
End Sequence
</deleted-nodes>
<deleted-segments> [0..1]
Start Sequence [1..1000000]
<deleted-segment> SPStreetSeg </deleted-segment> [1]
End Sequence
</deleted-segments>
<highlights> [0..1]
Start Sequence [1..100000]
<highlight> CPTGenericIden </highlight> [1]
End Sequence
</highlights>
<localSpGIS> local:SpGIS </localSpGIS> [0..1]
</spGIS>

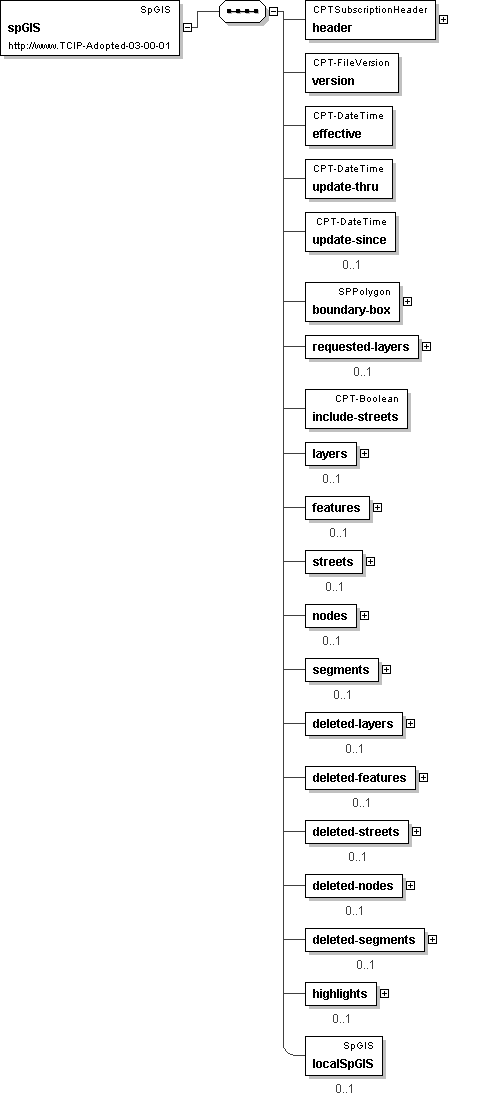

Diagram
h-527207252 h1398126929 h1272267302 h1272267302 h1272267302 h-1414121128 h-1229197083 h325016637 h483636130 h-1995809004 h1398024598 h730866261 h1986700784 h-1229197083 h-1995809004 h1398024598 h730866261 h1986700784 h-1935084263 h-1109738801
Schema Component Representation
<xs:element name="spGIS" type=" SpGIS "/>
