Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	LinkLocation
Used by (from the same schema document)	Complex Type GroupLocation , Complex Type LocationReference , Complex Type RouteLocation , Complex Type SpatialObject
Abstract	no

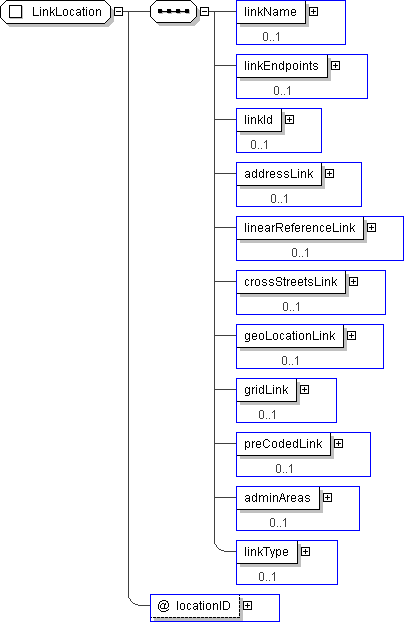

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<linkName> Text-name255 </linkName> [0..1]

<linkEndpoints> LinkGeneral </linkEndpoints> [0..1]

<linkId> IdType </linkId> [0..1]

<addressLink> AddressLink </addressLink> [0..1]

<linearReferenceLink> LinearReference </linearReferenceLink> [0..1]

<crossStreetsLink> CrossStreetsLink </crossStreetsLink> [0..1]

<geoLocationLink> GeoLocationLink </geoLocationLink> [0..1]

<gridLink> GridPointPair </gridLink> [0..1]

<preCodedLink> PreCoded </preCodedLink> [0..1]

<adminAreas> AdminAreaGroup </adminAreas> [0..1]

<linkType> LinkType </linkType> [0..1]

</...>

Schema Component Representation

<xs:complexType name="LinkLocation">

<xs:sequence>

<xs:element name="linkName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="linkEndpoints" type=" LinkGeneral " minOccurs="0"/>

<xs:element name="linkId" type=" IdType " minOccurs="0"/>

<xs:element name="addressLink" type=" AddressLink " minOccurs="0"/>

<xs:element name="linearReferenceLink" type=" LinearReference " minOccurs="0"/>

<xs:element name="crossStreetsLink" type=" CrossStreetsLink " minOccurs="0"/>

<xs:element name="geoLocationLink" type=" GeoLocationLink " minOccurs="0"/>

<xs:element name="gridLink" type=" GridPointPair " minOccurs="0"/>

<xs:element name="preCodedLink" type=" PreCoded " minOccurs="0"/>

<xs:element name="adminAreas" type=" AdminAreaGroup " minOccurs="0"/>

<xs:element name="linkType" type=" LinkType " minOccurs="0"/>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
