Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	LinearReference
Used by (from the same schema document)	Complex Type LinkLocation , Complex Type LocationReference , Complex Type PointLocation
Abstract	no

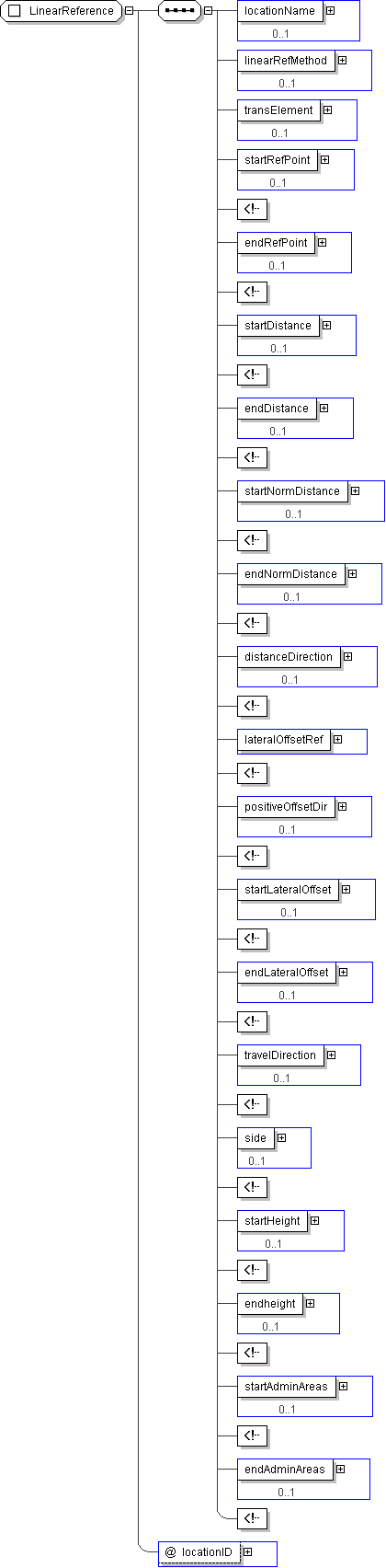

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<locationName> Text-name255 </locationName> [0..1]

<linearRefMethod> LRMethod </linearRefMethod> [0..1]

<transElement> StreetInfo </transElement> [0..1]

<startRefPoint> PointLocation </startRefPoint> [0..1]

<endRefPoint> PointLocation </endRefPoint> [0..1]

<startDistance> Distance </startDistance> [0..1]

<endDistance> Distance </endDistance> [0..1]

<startNormDistance> NormalizedDistance </startNormDistance> [0..1]

<endNormDistance> NormalizedDistance </endNormDistance> [0..1]

<distanceDirection> Direction </distanceDirection> [0..1]

<lateralOffsetRef> LROffsetRef </lateralOffsetRef> [1]

<positiveOffsetDir> LRPosOffsetDir </positiveOffsetDir> [0..1]

<startLateralOffset> Distance </startLateralOffset> [0..1]

<endLateralOffset> Distance </endLateralOffset> [0..1]

<travelDirection> Direction </travelDirection> [0..1]

<side> Side </side> [0..1]

<startHeight> Height </startHeight> [0..1]

<endheight> Height </endheight> [0..1]

<startAdminAreas> AdminAreaGroup </startAdminAreas> [0..1]

<endAdminAreas> AdminAreaGroup </endAdminAreas> [0..1]

</...>

Schema Component Representation

<xs:complexType name="LinearReference">

<xs:sequence>

<xs:element name="locationName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="linearRefMethod" type=" LRMethod " minOccurs="0"/>

<xs:element name="transElement" type=" StreetInfo " minOccurs="0"/>

<xs:element name="startRefPoint" type=" PointLocation " minOccurs="0"/>

<-- Start (first) reference point -->

<xs:element name="endRefPoint" type=" PointLocation " minOccurs="0"/>

<-- End (second_ reference point -->

<xs:element name="startDistance" type=" Distance " minOccurs="0"/>

<-- From start of element or the start reference point -->

<xs:element name="endDistance" type=" Distance " minOccurs="0"/>

<-- From start of element or the second reference point -->

<xs:element name="startNormDistance" type=" NormalizedDistance " minOccurs="0"/>

<-- Percentage of link length from start of element or start reference point to start of referenced link. -->

<xs:element name="endNormDistance" type=" NormalizedDistance " minOccurs="0"/>

<-- Percentage of link length from start of element or start reference point to end of referenced link. Note: normalized distances should only be used for references involving known link lengths. -->

<xs:element name="distanceDirection" type=" Direction " minOccurs="0"/>

<-- Direction for distance measures along the transport element -->

<xs:element name="lateralOffsetRef" type=" LROffsetRef "/>

<-- Defines from where lateral offset is measured. 'centerline' is the default value -->

<xs:element name="positiveOffsetDir" type=" LRPosOffsetDir " minOccurs="0"/>

<-- positive direction of a lateral offset. 'right' is the default value -->

<xs:element name="startLateralOffset" type=" Distance " minOccurs="0"/>

<-- Start offset perpendicular to the road -->

<xs:element name="endLateralOffset" type=" Distance " minOccurs="0"/>

<-- End offset perpendicular to the road -->

<xs:element name="travelDirection" type=" Direction " minOccurs="0"/>

<-- Direction the vehicle is traveling; may be different from the distance direction -->

<xs:element name="side" type=" Side " minOccurs="0"/>

<-- of the referenced point or link -->

<xs:element name="startHeight" type=" Height " minOccurs="0"/>

<-- of the first (start) referenced point -->

<xs:element name="endheight" type=" Height " minOccurs="0"/>

<-- of the second (ending) point of a link -->

<xs:element name="startAdminAreas" type=" AdminAreaGroup " minOccurs="0"/>

<-- of the first (start) referenced point -->

<xs:element name="endAdminAreas" type=" AdminAreaGroup " minOccurs="0"/>

<-- of the second (ending) point of a link -->

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
