Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

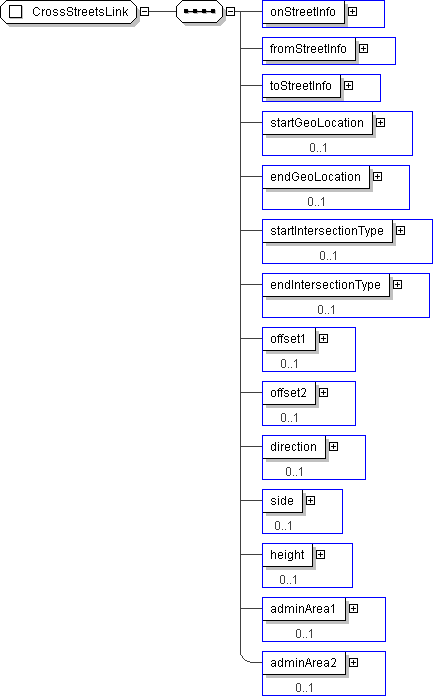

Name	CrossStreetsLink
Used by (from the same schema document)	Complex Type CrossStreets , Complex Type LinkLocation
Abstract	no

XML Instance Representation

<...>

<onStreetInfo> StreetInfo </onStreetInfo> [1]

<fromStreetInfo> StreetInfo </fromStreetInfo> [1]

<toStreetInfo> StreetInfo </toStreetInfo> [1]

<startGeoLocation> GeoLocation </startGeoLocation> [0..1]

<endGeoLocation> GeoLocation </endGeoLocation> [0..1]

<startIntersectionType> IntersectionType </startIntersectionType> [0..1]

<endIntersectionType> IntersectionType </endIntersectionType> [0..1]

<offset1> Distance </offset1> [0..1]

<offset2> Distance </offset2> [0..1]

<direction> Direction </direction> [0..1]

<side> Side </side> [0..1]

<height> Height </height> [0..1]

<adminArea1> AdminAreaGroup </adminArea1> [0..1]

<adminArea2> AdminAreaGroup </adminArea2> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CrossStreetsLink">

<xs:sequence>

<xs:element name="onStreetInfo" type=" StreetInfo "/>

<xs:element name="fromStreetInfo" type=" StreetInfo "/>

<xs:element name="toStreetInfo" type=" StreetInfo "/>

<xs:element name="startGeoLocation" type=" GeoLocation " minOccurs="0"/>

<xs:element name="endGeoLocation" type=" GeoLocation " minOccurs="0"/>

<xs:element name="startIntersectionType" type=" IntersectionType " minOccurs="0"/>

<xs:element name="endIntersectionType" type=" IntersectionType " minOccurs="0"/>

<xs:element name="offset1" type=" Distance " minOccurs="0"/>

<xs:element name="offset2" type=" Distance " minOccurs="0"/>

<xs:element name="direction" type=" Direction " minOccurs="0"/>

<xs:element name="side" type=" Side " minOccurs="0"/>

<xs:element name="height" type=" Height " minOccurs="0"/>

<xs:element name="adminArea1" type=" AdminAreaGroup " minOccurs="0"/>

<xs:element name="adminArea2" type=" AdminAreaGroup " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
