Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

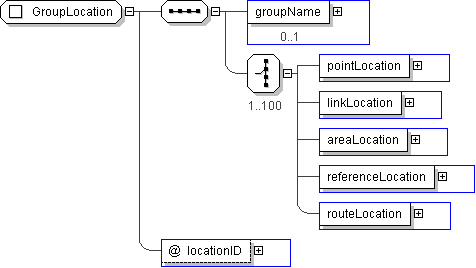

Name	GroupLocation
Used by (from the same schema document)	Complex Type LocationReference
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<groupName> Text-name255 </groupName> [0..1]

Start Choice [1..100]

<pointLocation> PointLocation </pointLocation> [1]

<linkLocation> LinkLocation </linkLocation> [1]

<areaLocation> AreaLocation </areaLocation> [1]

<referenceLocation> LocationReference </referenceLocation> [1]

<routeLocation> RouteLocation </routeLocation> [1]

End Choice
</...>

Schema Component Representation

<xs:complexType name="GroupLocation">

<xs:sequence>

<xs:element name="groupName" type=" Text-name255 " minOccurs="0"/>

<xs:choice minOccurs="1" maxOccurs="100">

<xs:element name="pointLocation" type=" PointLocation "/>

<xs:element name="linkLocation" type=" LinkLocation "/>

<xs:element name="areaLocation" type=" AreaLocation "/>

<xs:element name="referenceLocation" type=" LocationReference "/>

<xs:element name="routeLocation" type=" RouteLocation "/>

</xs:choice>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
