Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	RouteLocation
Used by (from the same schema document)	Complex Type GroupLocation , Complex Type LocationReference , Complex Type SpatialObject
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<locationName> Text-name255 </locationName> [0..1]

Start Choice [1..*]

<pointLocation> PointLocation </pointLocation> [0..1]

<linkLocation> LinkLocation </linkLocation> [0..1]

End Choice
</...>

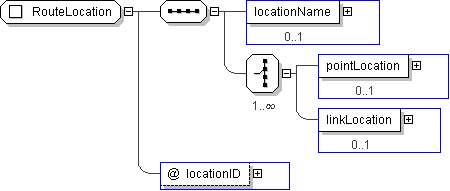

Diagram

Schema Component Representation

<xs:complexType name="RouteLocation">

<xs:sequence>

<xs:element name="locationName" type=" Text-name255 " minOccurs="0"/>

<xs:choice minOccurs="1" maxOccurs="unbounded">

<xs:element name="pointLocation" type=" PointLocation " minOccurs="0"/>

<xs:element name="linkLocation" type=" LinkLocation " minOccurs="0"/>

</xs:choice>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
