Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

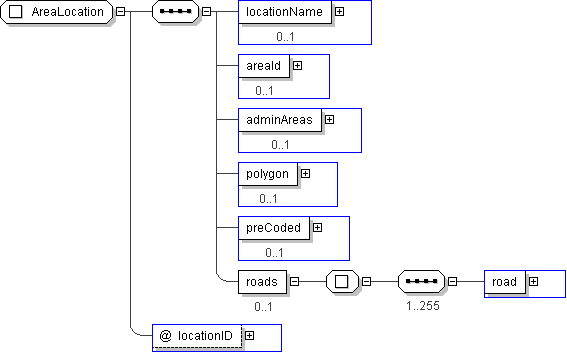

Name	AreaLocation
Used by (from the same schema document)	Complex Type GroupLocation , Complex Type LocationReference , Complex Type SpatialObject
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<locationName> Text-name255 </locationName> [0..1]

<areaId> IdType </areaId> [0..1]

<adminAreas> AdminAreaGroup </adminAreas> [0..1]

<polygon> Polygon </polygon> [0..1]

<preCoded> PreCoded </preCoded> [0..1]

<roads> [0..1]
Start Sequence [1..255]

<road> StreetInfo </road> [1]

End Sequence
</roads>

</...>

Schema Component Representation

<xs:complexType name="AreaLocation">

<xs:sequence>

<xs:element name="locationName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="areaId" type=" IdType " minOccurs="0"/>

<xs:element name="adminAreas" type=" AdminAreaGroup " minOccurs="0"/>

<xs:element name="polygon" type=" Polygon " minOccurs="0"/>

<xs:element name="preCoded" type=" PreCoded " minOccurs="0"/>

<xs:element name="roads" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="255">

<xs:element name="road" type=" StreetInfo "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
