Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Polygon
Used by (from the same schema document)	Complex Type Geometry , Complex Type AreaLocation , Complex Type SpatialObject
Abstract	no

XML Instance Representation

<...
locationId=" String-index64 [0..1]">

<polygonName> Text-name255 </polygonName> [0..1]

<vertex> PointLocation </vertex> [3..255]

</...>

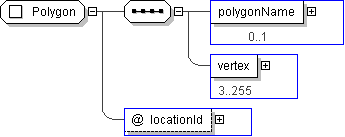

Diagram

Schema Component Representation

<xs:complexType name="Polygon">

<xs:sequence>

<xs:element name="polygonName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="vertex" type=" PointLocation " minOccurs="3" maxOccurs="255"/>

</xs:sequence>

<xs:attribute name="locationId" type=" String-index64 "/>

</xs:complexType>
